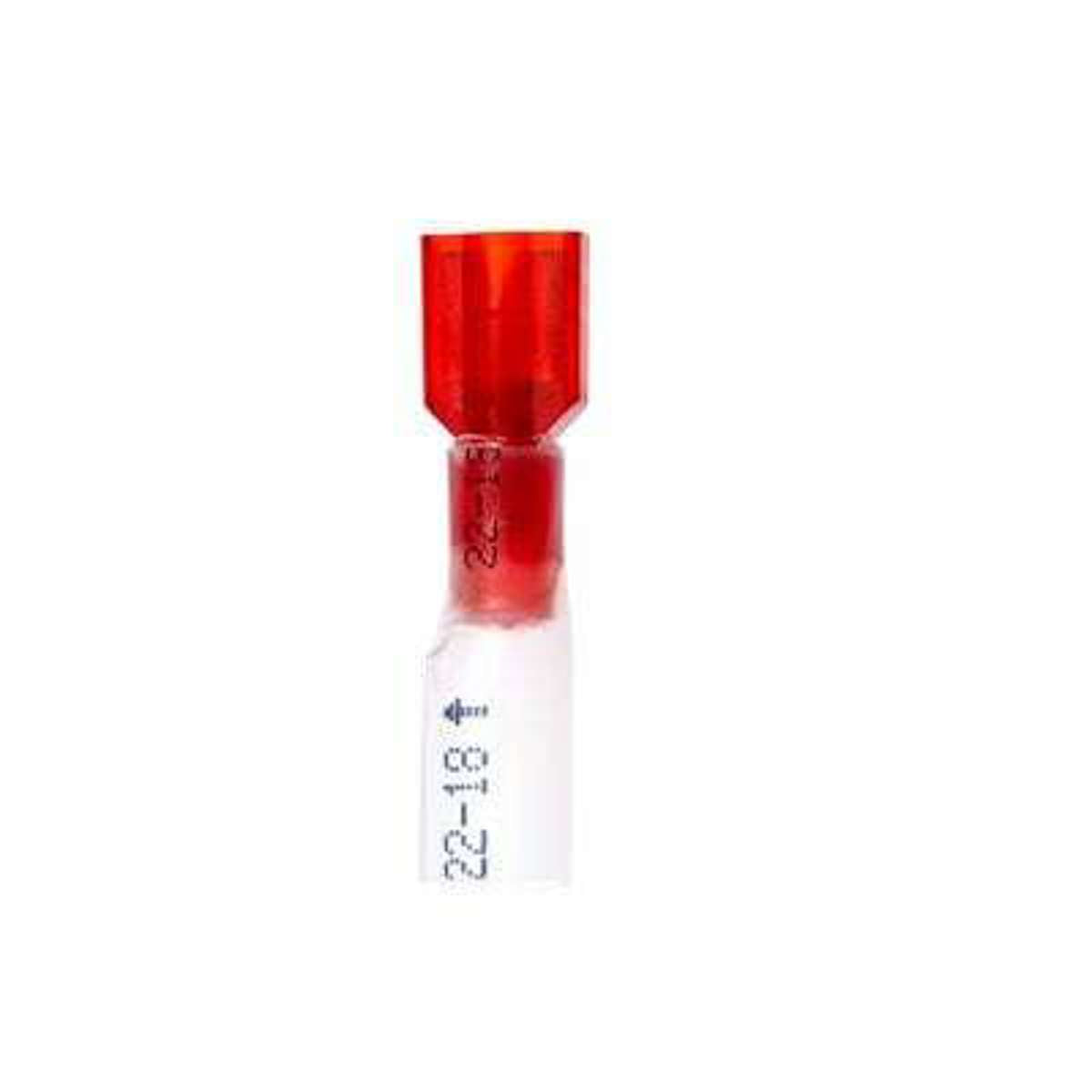

Scotchlok MNHU18-250DFIX Heatshrink Nylon Insulated Female Disconnect (25/bottle)

Product Description

The SCOTCHLOK MNHU18-250DFIX is a color-coded heat shrink female disconnect terminal with dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C).

• Dents and rolled edges offer excellent holding force.
• Pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt when crimped and shrunk.
• Made of durable brass for good conductivity and has corrosion-resistant tin plating.

Product Highlights

The MNHU18-250DFIX female disconnect terminal mates with 0.25-in wide male tab and accommodates wire sizes 22 to 18 AWG.

Product Information

Standard Information

• Brand: SCOTCHLOK
• Manufacturer Part Number: MNHU18-250DFIX
• Country of Origin: United States

Technical Specifications

• Type: Disconnect
• Brand: Scotchlok
• Width: 0.37 in
• Length: 1.2 Inch
• Diameter: 0.23 Inch
• Material: Heat Shrink
• Sub Brand: Scotchlok
• Thickness: 0.032 in
• Barrel Type: Butted
• Terminal Size: 22 - 18 AWG
• Terminal Type: Disconnect
• Conductor Size: 18 AWG
• Overall Length: 1.2 in
• Terminal Style: Fully Insulated
• Insulation Material: Heat Shrink
• Catalog Number: MNHU18-250DFIX
• Manufacturer: 3M Electrical Products
• Country of Origin: United States
• Made in USA: Yes
• Special Features: Fully Insulated
• Temperature Rating: -40 to 221 Deg F
• Approval: UL, CSA
• Overall Size: 0.23 Inch Dia x 1.2 Inch L x 0.37 Inch W
• Barrel Size: 0.08 Inch ID x 0.25 Inch L
• Voltage Rating: 600 V (Building Wire), 1000 V (Signs, Fixtures)
• Terminal Material: Brass
• Barrel Inside Diameter: 0.080 Inch
• Connection Width (Imperial): 0.25 in
• Connection Width (Metric): 6.35 mm
• Disconnect Type: Female
• Fastener Orientation: Female
• Male Tab Width (W'): 0.250 Inch
• Maximum Conductor Size (Imperial): 18 AWG
• Maximum Conductor Size (Metric): 1 mm²
• Minimum Conductor Size (Imperial): 22 AWG
• Minimum Conductor Size (Metric): .34 mm²
• Pad Width: 0.25 in
• Tab Width: 0.187
• Trade Name: Scotchlok
• 3M Number: MNHU18-250DFIX
• Minimum Wire Size: 22 AWG
• Seam Type: Butted
• Color: Red
• Inside Diameter: 0.08 in
• Barrel Length Type: Butted
• Minimum Conductor Leg Diameter: 22 AWG
