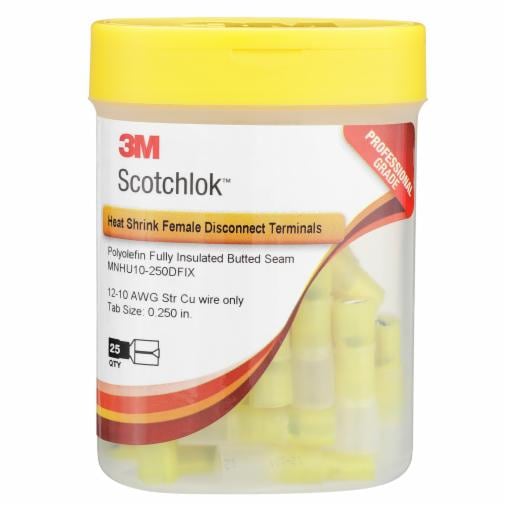

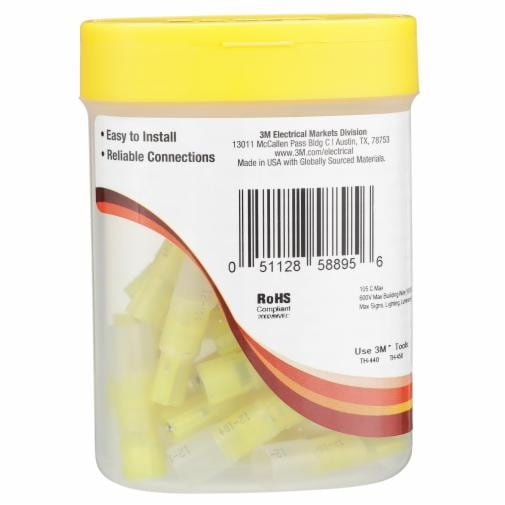

Scotchlok MNHU10-250DFIX Female Disconnect Heatshrink Nylon Insulated 25/bottle

Product Description

The SCOTCHLOK MNHU10-250DFIX Color-Coded Heat Shrink Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This terminal features a butted-seam barrel covered by a see-through, pre-insulated transparent tubing. When crimped and shrunk, the tubing provides a seal that resists water, salt, and other contaminants.

• Fully insulated with heat shrink material
• Butted-seam barrel construction
• Suitable for 12 AWG to 10 AWG conductors

Product Highlights

The MNHU10-250DFIX female disconnect offers a reliable, environmentally sealed connection for electrical applications, withstanding temperatures from -40 to 221 Deg F.

Product Information

Standard Information

• Brand: SCOTCHLOK
• Manufacturer Part Number: MNHU10-250DFIX
• Country of Origin: United States

Technical Specifications

• Catalog Number: MNHU10-250DFIX
• Manufacturer: 3M Electrical Products
• Brand: Scotchlok
• Sub Brand: Scotchlok
• Country of Origin: United States
• Made in USA: Yes
• Material: Heat Shrink
• Special Features: Fully Insulated
• UPC: 051128588956
• GTIN: 00051128588956
• Item Type: Disconnect
• Type: Straight
• Tab Size: 0.25 Inch W x 0.032 Inch Thk
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Heat Shrink Nylon Fully Insulated
• Temperature Rating: -40 to 221 Deg F
• Barrel Style: Butted
• Voltage Rating: 600 V (Building Wire), 1000 V (Signs, Fixtures)
• Terminal Material: Brass
• Barrel Inside Diameter: 0.165 Inch
• Barrel Length (Imperial): 0.25 Inch
• Connection Type: Wire
• Disconnect Type: Female
• Fastener Orientation: Female
• Flame Retardant: No
• Insulation Color: Yellow
• Insulation Material: Heat Shrink
• Male Tab Width (W'): 0.250 Inch
• Mates with Male Tab Width (W'): 0.25 Inch
• Maximum Conductor Size (Metric): 6 mm²
• Maximum Insulation Outer Diameter (Metric): 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature (Celsius): 105 ℃
• Maximum Recommended Voltage Rating: 600 V
• Minimum Conductor Size (Metric): 4 mm²
• Product Color: Yellow
• Terminal Style: Fully Insulated
• Terminal Type: Disconnect
• Overall Diameter (Imperial): 0.32 in
• Overall Length (Imperial): 1.2 in
• Overall Length (Metric): 30.48 mm
• Overall Width (Imperial): 0.39 in
• Overall Width (Metric): 9.4 mm
• Seam Type: Butted
• Inside Diameter: 0.165 in
• Package Quantity: 25 per bag, 125 per case
• Case Quantity: 125 per case
• Inside Quantity: 25 per bag
• Barrel Length Type: Butted
• Minimum Conductor Leg Diameter: 12 AWG
