Scotchlok MNG18-250DFX Insulated Standard Female Disconnect Terminal 22 to 18 AWG 0.25 in W x 0.032 in THK

Product Description

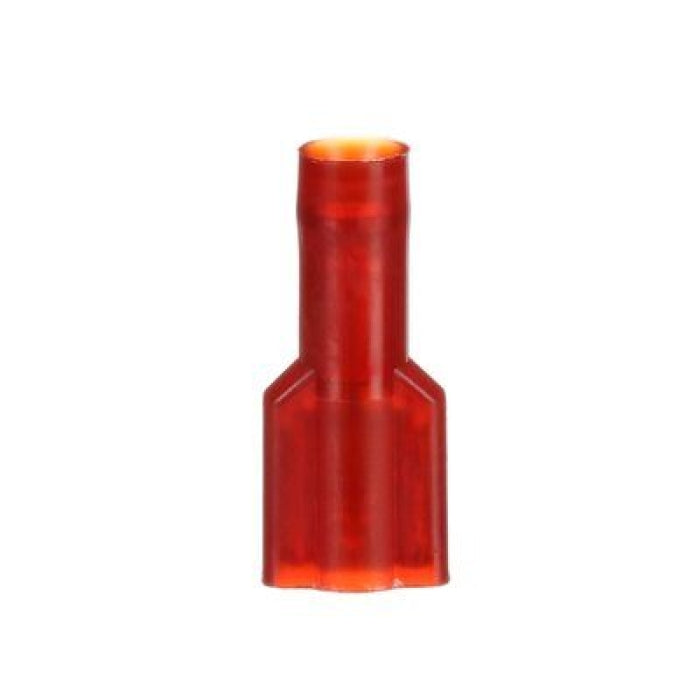

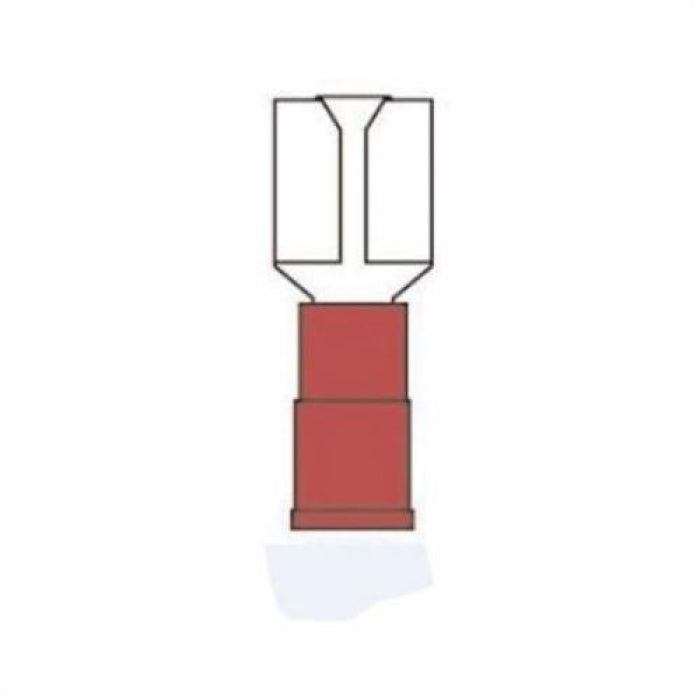

3M Scotchlok MNG18-250DFX is an insulated standard female disconnect terminal. This terminal connects to a male tab through a tongue design that slides over it. It features a butted seam barrel with a funnel-shaped brass sleeve that guides wire insertion effectively. The nylon insulation is abrasion-resistant and offers a secure grip during use. Its design helps prevent incorrect crimping.

• Suitable for conductors ranging from twenty-two to eighteen AWG
• Meets or exceeds voltage ratings of six hundred to one thousand VAC
• Temperature rating between minus forty to two hundred twenty-one degrees Fahrenheit

Product Highlights

This product is essential for reliable electrical connections. The unique design enhances usability, offering a straightforward solution for disconnecting wires quickly.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M

Technical Specifications

• Barrel Type: Butted Seam
• Color: Red
• Conductor Size: 22 to 18 AWG
• Dimensions: 0.86 inches long
• Finish: Tin Plated
• Material: Nylon
• Insulated: Yes
• Tab Size: 0.25 inches wide x 0.032 inches thick
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600/1000 VAC
