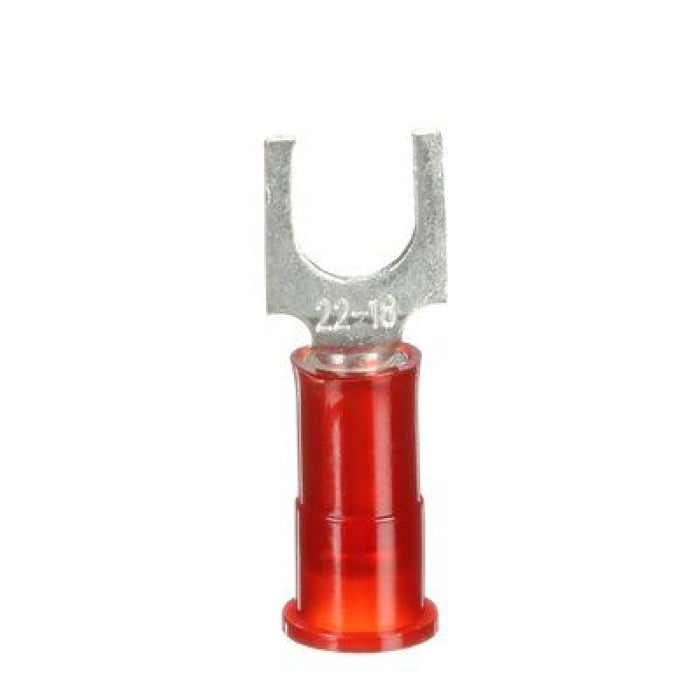

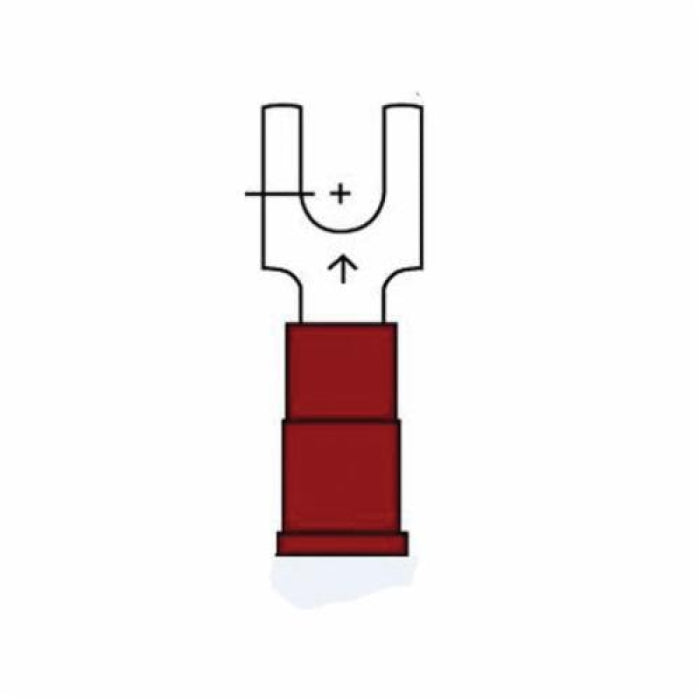

Scotchlok MNG18-10FBX Block Insulated Fork Terminal 22 to 18 AWG

Product Description

3M Scotchlok MNG18-10FBX is a block insulated fork terminal designed for reliable performance and secure connections. This terminal accommodates wire sizes ranging from twenty-two to eighteen AWG. It features a butted seam barrel, covered by a funnel designed brass sleeve, providing easy wire insertion and mechanical stress relief.

The nylon insulation is abrasion-resistant, ensuring a secure grip and mistake-proof crimping. The terminal is suitable for use in various applications, including terminal blocks and free-hanging mounting. It operates effectively in temperature ranges from negative forty to two hundred twenty-one degrees Fahrenheit.

• Compatible with stranded copper conductors.
• Secure butted seam barrel design.
• Rated for six hundred to one thousand VAC applications.

Product Highlights

Scotchlok fork terminals are known for their color coding for easy identification, ensuring correct installation every time.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M
• Product ID: MNG18-10FBX

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Length: 0.84 in
• Stud Size: #10
• Max Operating Temperature: 221 degrees F
• Material: Electrolytic Copper/Nylon
• Insulation Type: Nylon
• Voltage Rating: 600 to 1000 VAC
• Barrel Type: Butted
