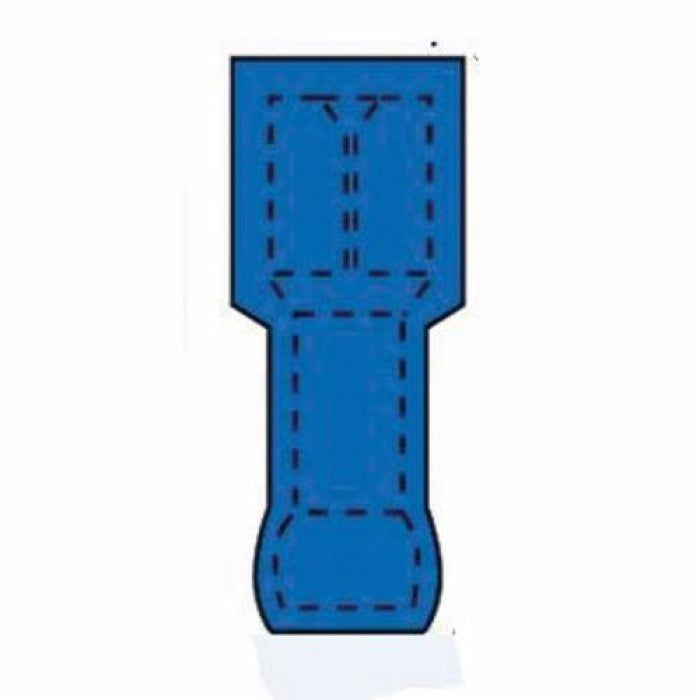

Scotchlok MNG14-187DFIX Fully Insulated Female Disconnect Terminal 16 to 14 AWG

Product Description

3M Scotchlok MNG14-187DFIX is a fully insulated female disconnect terminal. It is designed for 16 to 14 American Wire Gauge (AWG) conductors. The terminal features a 0.187 inch wide tab with a thickness of 0.02 inches. The butted seam barrel aids in robust connection and stability.

• Rated for 600/1000 volts AC
• Temperature range from -40 to 221 degrees Fahrenheit
• Constructed with a nylon material for durability

Product Highlights

This terminal offers a reliable connection for various electrical applications, allowing for easy installation and maintenance. Its design ensures a secure fit and effective electrical conductivity.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Tab Size: 0.187 in W x 0.02 in THK
• Material: Nylon
• Barrel Type: Butted Seam
• Insulation: Fully Insulated
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees F
• Dimensions: 0.81 in L
