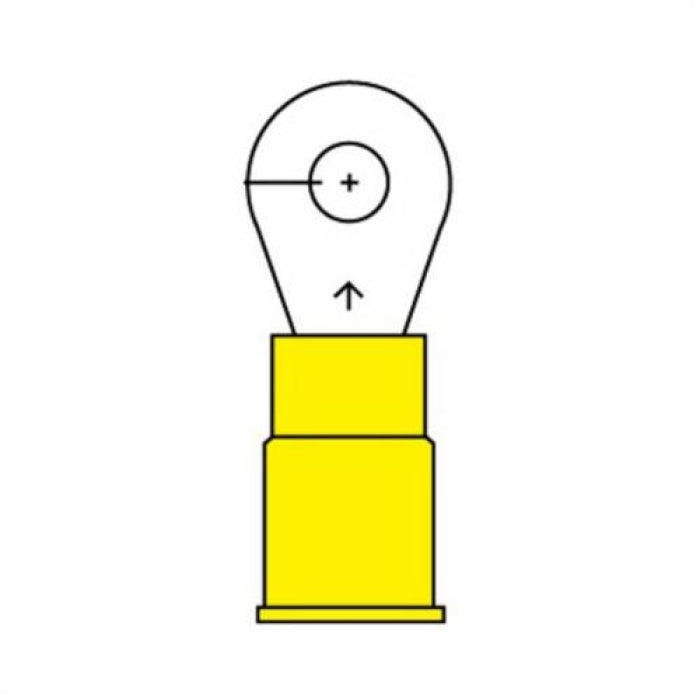

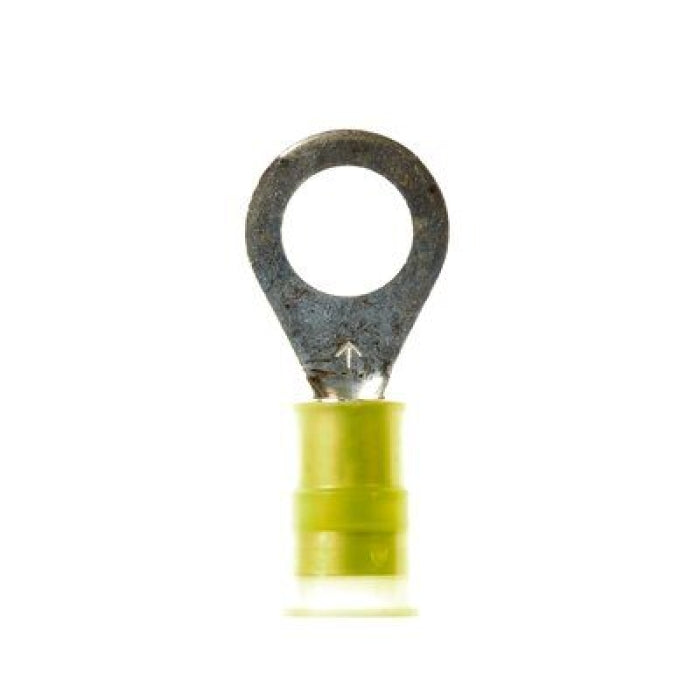

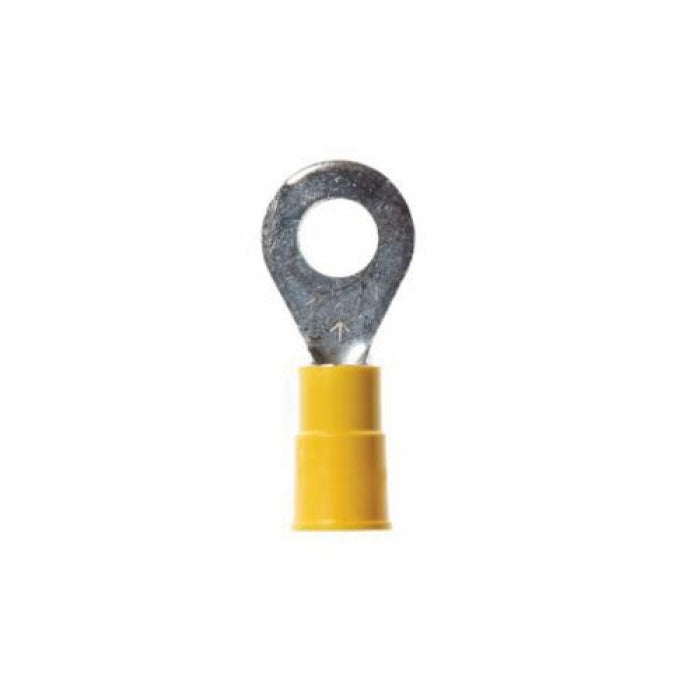

Scotchlok MNG10-516R/SX Standard Ring Tongue Terminal 12 to 10 AWG Conductor

Product Description

3M Scotchlok MNG10-516R/SX is a standard ring tongue terminal designed for reliable electrical connections. This terminal accommodates wire sizes from twelve to ten AWG and features nylon insulation for safety. The butted seam barrel ensures a secure fit, while the electrolytic copper construction provides strong conductivity. The terminal is rated for use in applications up to one thousand VAC and can withstand temperatures ranging from negative forty to two hundred twenty-one degrees Fahrenheit.

• Standard design for ease of installation
• Compatible with 12 to 10 AWG wire sizes
• Nylon insulation for added safety

Product Highlights

This terminal is UL recognized and CSA certified, making it suitable for various electrical applications.

Product Information

Standard Information

• Brand: 3M
• MPN: MNG10-516R/SX

Technical Specifications

• Temperature Rating: -40 to 221 deg F
• Wire Size: 12 - 10 AWG
• Stud Size: 5/16 in
• Overall Length: 1.26 in
• Width: 0.53 in
• Thickness: 0.04 in
• Material: Copper
• Insulation Material: Nylon
