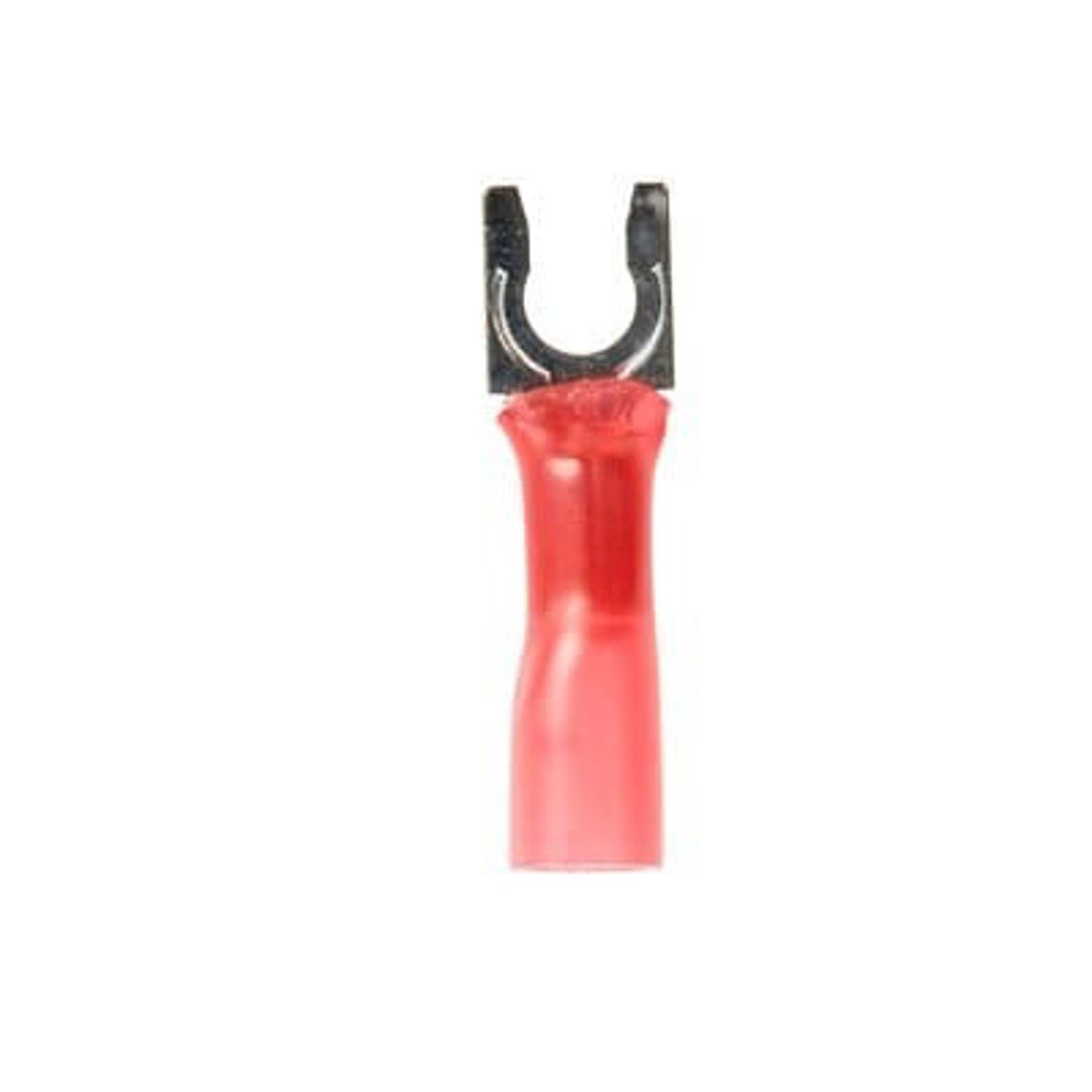

Scotchlok MH18-8FLX Heat Shrink Locking Fork Terminal #8

Product Description

The SCOTCHLOK MH18-8FLX heat shrink locking fork terminal features a spring-like tongue to securely lock around the stud. Constructed from electrolytic copper with a tin-plated finish for corrosion resistance. The brazed-seam barrel is covered by adhesive-lined polyolefin tubing, providing a moisture-seal. It accommodates wire sizes 22 to 18 AWG and withstands a maximum temperature of 221 degrees F.

• Accommodates wire sizes 22 to 18 AWG
• Electrolytic copper construction offers good conductivity
• Spring-like tongue firmly fits around the stud

Product Highlights

The MH18-8FLX locking fork terminal provides a secure fit and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: SCOTCHLOK
• Manufacturer Part Number: MH18-8FLX
• Country of Origin: United States

Technical Specifications

• Type: Fork
• Brand: Scotchlok
• Length: 1 Inch
• Material: Heat Shrink
• Stud Size: #8
• Sub Brand: Scotchlok
• Thickness: 0.03 in
• Barrel Type: Brazed Seam
• Terminal Size: 22 - 18 AWG
• Terminal Type: Fork
• Conductor Size: 18 AWG
• Overall Length: 1 in
• Terminal Style: Locking
• Insulation Material: Heat Shrink
• Catalog Number: MH18-8FLX
• Manufacturer: 3M Electrical Products
• Country of Origin: United States
• Made in USA: Yes
• Special Features: Locking
• Standard: UL and CSA
• Item Type: Fork
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Color: Red
• Insulation Type: Heat Shrink Insulated
• Temperature Rating: 221 Deg F
• Approval: UL, CSA
• RoHS Compliant: True
• Base Material: Electrolytic Tin Plated Copper
• Barrel Inside Diameter: 0.070 Inch
• Barrel Style: Brazed
• Brands: Scotchlok™
• CSA File Number: LR22190
• Clearance (C): 0.15 Inch
• Dimension E: 0.70 Inch
• Fork Type: Locking
• Maximum Conductor Size (Metric): .0823 mm²
• Minimum Conductor Size (Metric): 0.326 mm²
• UL File Number: E23438
• Overall Length (Imperial): 1 in
• Trade Name: Scotchlok
• 3M Number: MH18-8FLX
• Fastening Mechanism: Locking
• Seam Type: Brazed
• Fork Width: 0.3 in
• Insulation Length: 0.7 in
• Inside Diameter: 0.07 in
• Minimum Conductor Leg Diameter: 22 AWG
