Scotchlok MH18-10R/LX Ring Heatshrink, 25/bottle

Product Description

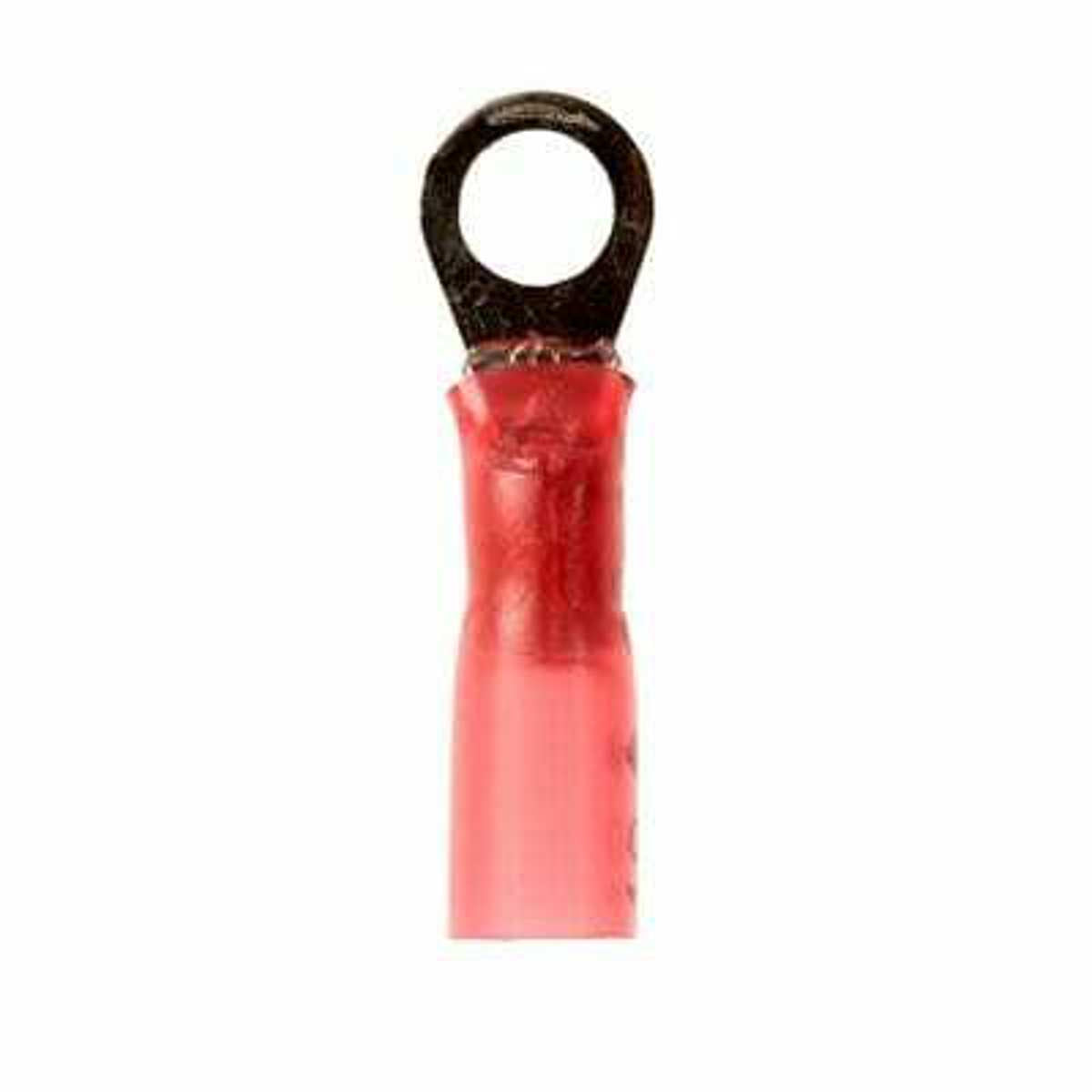

SCOTCHLOK MH18-10R/LX ring heatshrink electrical terminal, available in a bottle of 25. Features heat shrink insulation and is UL and CSA certified. The ring tongue terminal accommodates wire sizes from 22 to 18 AWG and has a stud size of #10. It is constructed from tin-plated ETP copper with a brazed seam barrel.

• Heat Shrink
• Standard
• UL and CSA
• Ring

Product Highlights

The MH18-10R/LX ring tongue terminal ensures a secure fit and reliable performance, ideal for electrical connections requiring moisture-seal protection.

Product Information

Standard Information

• Brand: SCOTCHLOK
• Manufacturer Part Number: MH18-10R/LX
• Country of Origin: United States

Technical Specifications

• Catalog Number: MH18-10R/LX
• Manufacturer: 3M Electrical Products
• Brand: Scotchlok
• Sub Brand: Scotchlok
• Country of Origin: United States
• Made in USA: Yes
• Material: Heat Shrink
• Special Features: Standard
• Standard: UL and CSA
• UPC: 051128589144
• GTIN: 00051128589144
• Item Type: Ring
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Insulation Type: Heat Shrink Insulated
• Stud Size: #10
• Temperature Rating: 221 Deg F
• Approval: UL 486A, CSA C22.2
• Voltage Rating: 600 V (Building Wire), 1000 V (Signs, Fixtures)
• Terminal Material: Tin Plated ETP Copper
• Barrel Style: Brazed Seam
• Connection Width (Imperial): 0.19 in
• Insulation Material: Heat Shrink
• Maximum Conductor Size (Metric): 0.823 mm²
• Minimum Conductor Size (Imperial): 22 AWG
• Minimum Conductor Size (Metric): 0.326 mm²
• Terminal Type: Ring
• Overall Length (Imperial): 1 in
• Overall Width (Imperial): 0.31 in
• Maximum Operating Temperature: 105 degrees C
