Scotchlok MH14-6R/LX Ring Heat Shrink 25/Bottle

Product Description

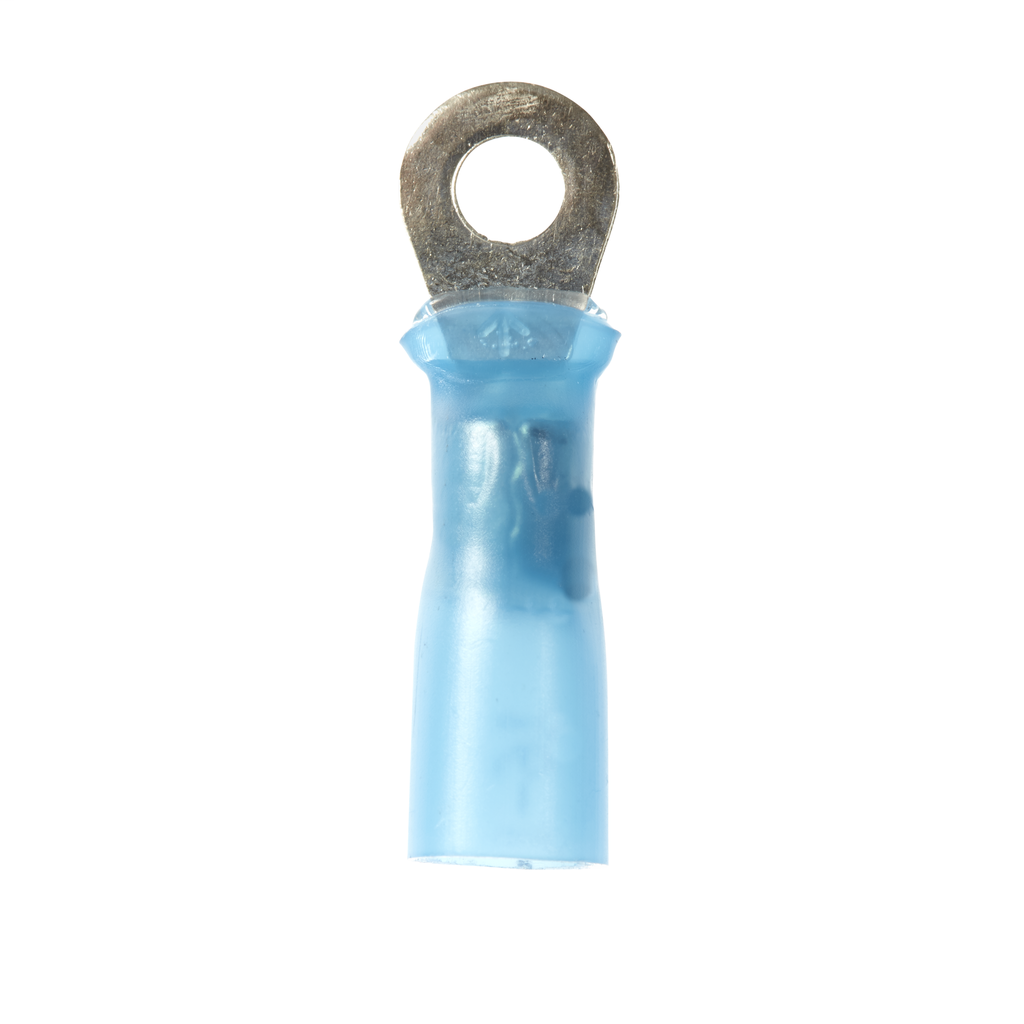

The SCOTCHLOK MH14-6R/LX ring tongue terminal ensures an ideal fit and offers reliable performance. Constructed from electrolytic copper for good conductivity with a tin-plated finish for corrosion resistance. It features a brazed-seam barrel covered by adhesive-lined polyolefin tubing for moisture-seal protection and withstands temperatures up to 221 degrees F (105 degrees C).

• Accommodates wire sizes 16 to 14 AWG
• Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Product Highlights

The MH14-6R/LX ring terminal is ideal for creating secure, corrosion-resistant connections in electrical applications, with a standard-style ring tongue that fits around the stud.

Product Information

Standard Information

• Brand: SCOTCHLOK
• Manufacturer Part Number: MH14-6R/LX
• Country of Origin: United States

Technical Specifications

• Type: Ring
• Brand: Scotchlok
• Color: Blue
• Width: 0.31 in
• Length: 1 Inch
• Material: Heat Shrink
• Stud Size: 6
• Sub Brand: Scotchlok
• Thickness: 0.03 in
• Barrel Type: Brazed
• Terminal Size: 16 - 14 AWG
• Terminal Type: Ring
• Conductor Size: 16-14 AWG
• Overall Length: 1 in
• Terminal Style: Standard
• Insulation Material: Heat Shrink
• Max Operating Temperature: 105 C
• Catalog Number: MH14-6R/LX
• Manufacturer: 3M Electrical Products
• Country of Origin: United States
• Made in USA: Yes
• Special Features: Standard
• Standard: UL and CSA
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Insulation Type: Heat Shrink Insulated
• Temperature Rating: 221 Deg F
• Approval: UL, CSA
• RoHS Compliant: True
• Barrel Style: Brazed Seam
• Base Material: Electrolytic Tin Plated Copper
• Connection Type: Crimp
• Connection Width (Imperial): 0.138 in
• Connection Width (Metric): 3.5 mm
• Maximum Conductor Size (Metric): 2.08 mm²
• Maximum Operating Temperature (Celsius): 105 ℃
• Minimum Conductor Size (Imperial): 16 AWG
• Minimum Conductor Size (Metric): 1.31 mm²
• Product Color: Blue
• Overall Length (Metric): 25.4 mm
• Overall Width (Metric): 7.87 mm
