Scotchlok MH14-14FLX Heat Shrink Locking Fork Terminal 1/4 Inch

Product Description

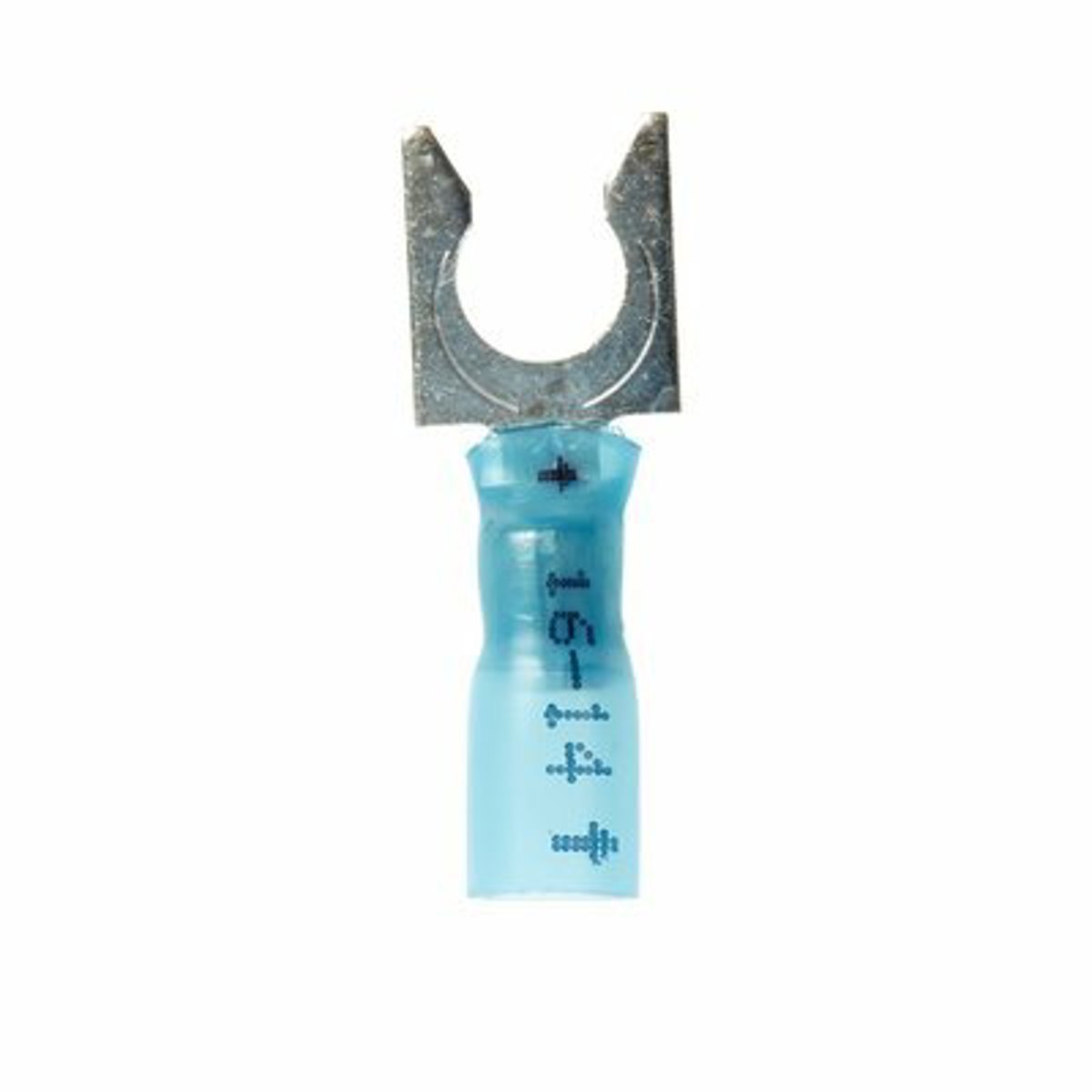

The SCOTCHLOK MH14-14FLX heat shrink locking fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. It accommodates wire sizes 16 to 14 AWG.

• Stud size 1/4 in
• Accommodates wire sizes 16 to 14 AWG
• Withstands a maximum temperature of 221 degrees F (105 degrees C)

Product Highlights

The MH14-14FLX locking fork terminal offers a secure fit and reliable performance. It is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Product Information

Standard Information

• Brand: SCOTCHLOK
• Manufacturer Part Number: MH14-14FLX
• Country of Origin: United States

Technical Specifications

• Type: Fork
• Brand: Scotchlok
• Width: 0.43 in
• Length: 1.1 Inch
• Material: Heat Shrink
• Stud Size: 1/4 Inch
• Sub Brand: Scotchlok
• Thickness: 0.03 in
• Barrel Type: Brazed
• Terminal Size: 16 - 14 AWG
• Terminal Type: Fork
• Conductor Size: 14 AWG
• Overall Length: 1.1 in
• Terminal Style: Locking
• Insulation Material: Heat Shrink
• Catalog Number: MH14-14FLX
• Manufacturer: 3M Electrical Products
• Country of Origin: United States
• Made in USA: Yes
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Temperature Rating: 221 Deg F
• Approval: UL, CSA
• RoHS Compliant: True
• Base Material: Electrolytic Tin Plated Copper
• Trade Name: Scotchlok
• 3M Number: MH14-14FLX
• Fastening Mechanism: Locking
• Seam Type: Brazed
• Fork Width: 0.43 in
• Clearance: 0.27 in
• Insulation Length: 0.85 in
• Inside Diameter: 0.09 in
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Tongue Type: Fork
• Voltage Rating: 600 to 1000 VAC
• Wire Gauge: 14-16 AWG
• Insulation: Insulated with Heat Shrink
• Features: Brazed Seam
• Contact Finish: Tin
• Contact Material: Copper, ETP
• Material - Insulation: Polyolefin
• Mounting Type: Free Hanging (In-Line)
