Product Description

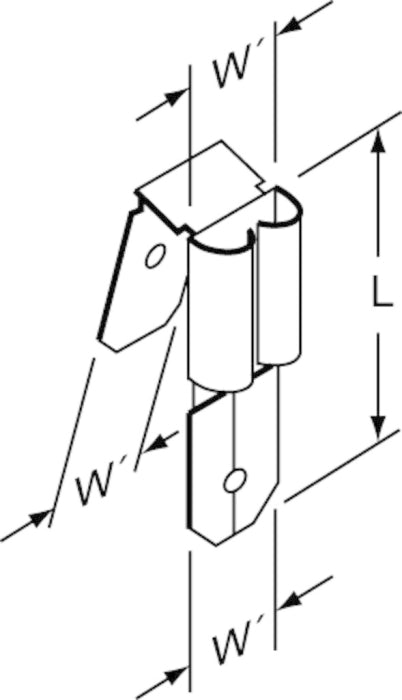

The Scotchlok MA250DMFMK-A is a multi-stack non-insulated double male/female adapter by 3M, designed to interconnect two connectors that are already attached to wires. This adapter features a butted seam barrel construction and can withstand a maximum temperature of three hundred forty-seven degrees Fahrenheit. Made from durable brass, it ensures good conductivity and has a TiN coated finish that provides resistance to corrosion.
- Interconnects two connectors attached to wires
- Constructed with a non-insulated, butted seam barrel
- Durable brass material for enhanced conductivity
Product Highlights
This adapter is suitable for use with a tab size of zero point twenty-five inches wide and zero point zero thirty-two inches thick, making it ideal for electrical applications requiring reliable connectivity.
Product Information
Standard Information
-
Brand: Scotchlok
-
MPN: MA250DMFMK-A
Technical Specifications
-
Barrel Type: Butted Seam
-
Dimensions: 0.7 in L x 0.032 in THK
-
Material: Brass
-
Tab Size: 0.25 in W x 0.032 in THK
-
Temperature Rating: 347 deg F
-
Voltage Rating: 600/1000 VAC
-
Finish: Tin Plated
