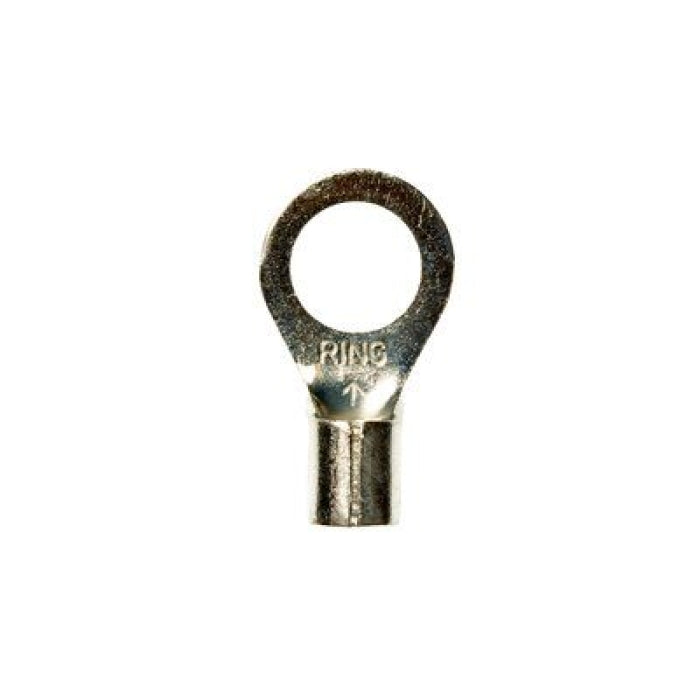

Scotchlok M8-38RX Standard Ring Tongue Terminal 8 AWG Conductor Replacement MPN

Product Description

The Scotchlok M8-38RX is a standard ring tongue terminal from 3M. It is designed for solid and reliable connections. This terminal features a non-insulated, brazed seam barrel that ensures a secure fit. The beveled mouth design allows for easy wire insertion, enhancing efficiency during installation.

• Copper construction for good conductivity
• Resistance to corrosion due to tin plating
• Temperature withstand of up to 347 degrees F

Product Highlights

The M8-38RX is ideal for applications that require dependable electrical connections such as building fixtures and signs.

Product Information

Standard Information

• Brand: 3M
• MPN: M8-38RX

Technical Specifications

• Conductor Size: 8 AWG
• Stud Size: 3/8 in
• Length: 1.06 in
• Barrel Size: 0.175 in ID x 0.31 in L
• Tongue Size: 0.59 in W x 0.05 in T
• Voltage Rating: 600/1000 VAC
• Temperature Rating: 347 deg F
• Features: Non-insulated, crimp connection
