Scotchlok M4-38RX Non-Insulated Standard Ring Terminal, 4 AWG Conductor, 1.34 in L, Brazed Seam Barrel

Product Description

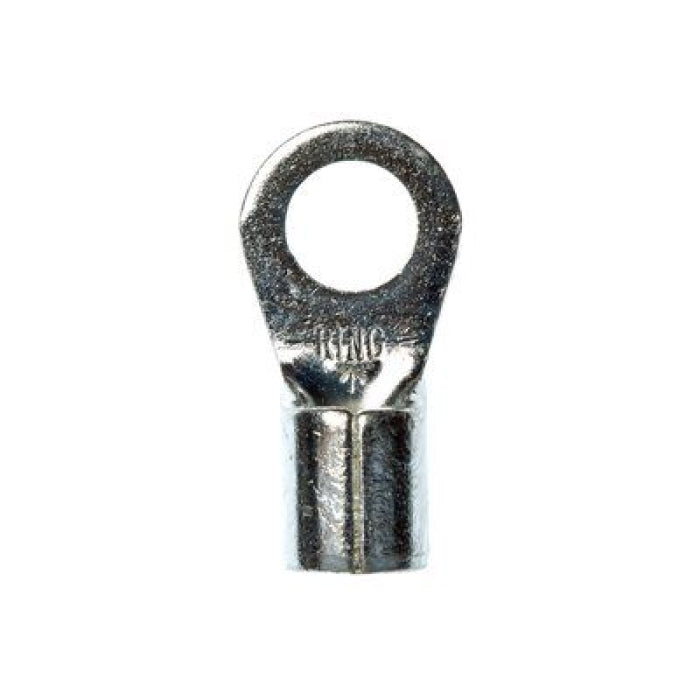

3M Scotchlok M4-38RX is a non-insulated standard ring tongue terminal designed for reliable electrical connections. It features a brazed seam barrel with a beveled mouth for precise wire insertion. This terminal is suitable for use with a 4 AWG conductor and can handle temperatures up to three hundred forty-seven degrees Fahrenheit.

• Brazed seam barrel promotes secure connections.
• Compatible with 3/8 inch stud sizes.
• Constructed from electrolytic copper for enhanced conductivity.

Product Highlights

This terminal ensures a strong and dependable connection in electrical applications.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M

Technical Specifications

• Conductor Size: 4 AWG
• Length: 1.34 in
• Barrel Size: 0.28 in ID x 0.47 in L
• Stud Size: 3/8 in
• Voltage Rating: 600/1000 VAC
• Temperature Rating: 347 deg F
• Width: 0.68 in
• Thickness: 0.075 in
