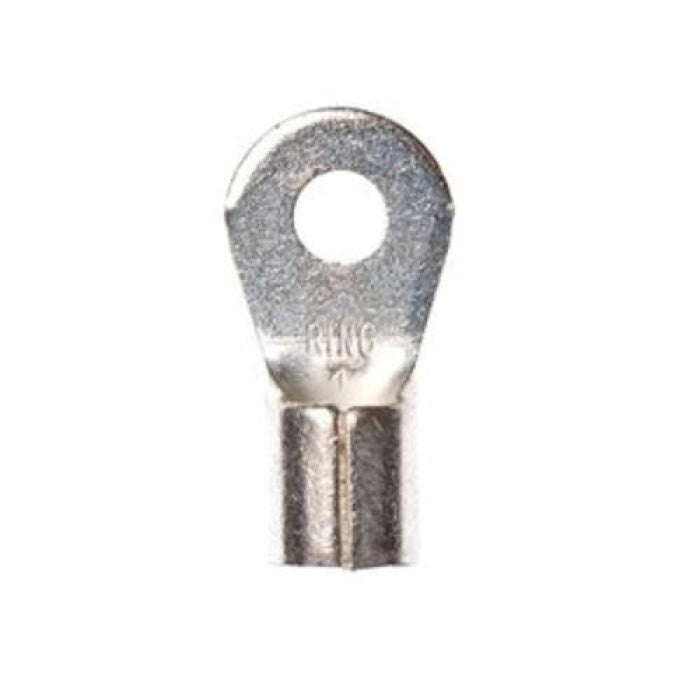

Scotchlok M4-10RX Non-Insulated Standard Ring Terminal 4 AWG Conductor

Product Description

The Scotchlok M4-10RX is a non-insulated standard ring terminal made by 3M. This terminal is designed for use with four AWG conductors and features a brazed seam barrel construction to ensure a secure fit while delivering reliable performance.

• Brazed seam barrel construction enhances strength and durability
• Standard style ring tongue that fits around a #10 stud
• Made of electrolytic copper with tin plating for corrosion resistance

Product Highlights

This ring terminal is ideal for applications involving electrical connections in building fixtures, luminaires, and signs.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M

Technical Specifications

• MPN: M4-10RX
• Conductor Size: 4 AWG
• Stud Size: #10
• Length: 1.34 in
• Temperature Rating: 347 deg F
• Voltage Rating: 600/1000 VAC
• Material: Copper
• Color: Yellow
• Barrel Type: Brazed Seam
• Tongue Size: 0.68 in W x 0.075 in THK
• Barrel Size: 0.28 in ID x 0.47 in L
