Product Description

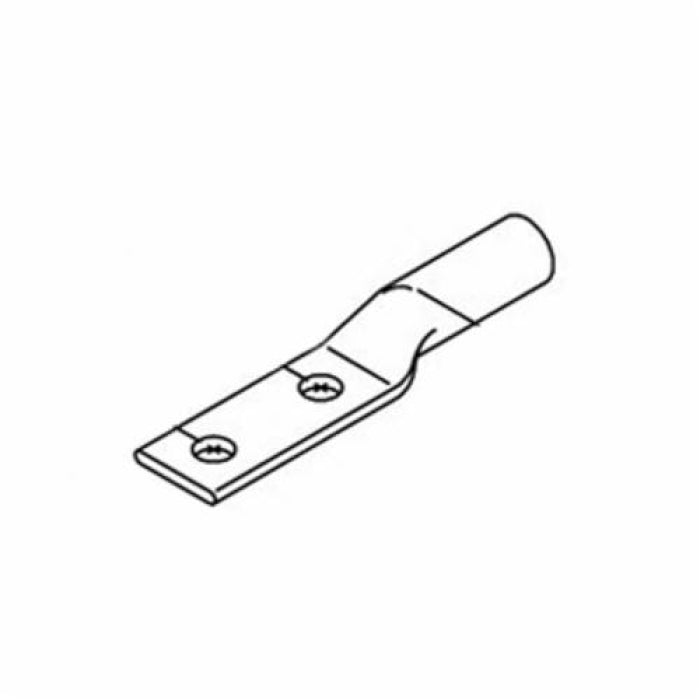

The Scotchlok 31166 by 3M is a compression lug designed for copper conductors. This lug is rated for 35 kV and accommodates a conductor size of 500 kcmil. It features a two-hole design that enhances reliability in various electrical applications.
- Constructed from high-conductivity copper
- Tin plated to resist corrosion
- Chamfered ends for ease of use
Product Highlights
This product provides a secure electrical connection, ensuring long-term performance in harsh conditions.
Product Information
Standard Information
-
Manufacturer: 3M
-
Part Number: 31166
Technical Specifications
-
Application: For terminating copper conductors
-
Barrel Size: 2.19 inches
-
Color: Brown
-
Conductor Size: 500 kcmil
-
Conductor Type: Copper
-

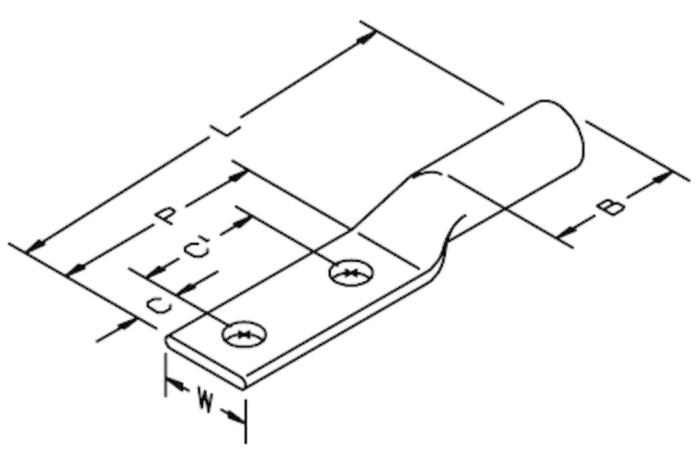

Dimensions: 6.16 inches L x 1.53 inches W
-
Stud Size: 1/2 inches
-
Voltage Rating: 35 kV
