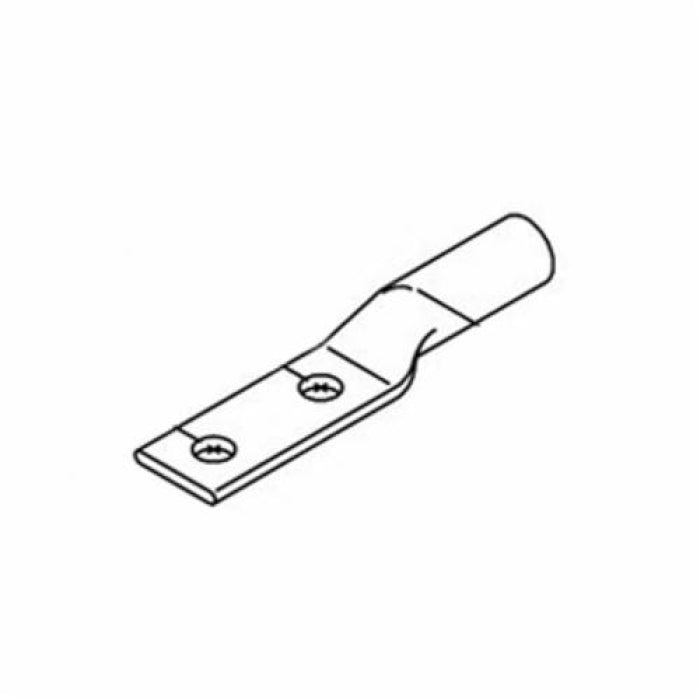

Scotchlok 31156 2-Hole Long Barrel Compression Lug 350 kcmil Red

Product Description

The Scotchlok 31156, from 3M, is a corrosion-resistant compression lug designed for copper conductors. It features a two-hole design, suitable for 350 kcmil copper conductors. This lug is rated for a voltage of up to 35 kilovolts. It includes a long barrel with a barrel length of 1.94 inches and an overall length of 5.75 inches. The 1/2 inch stud size allows for a secure connection in various electrical installations.

• Constructed from high-conductivity copper with a tin plating for corrosion resistance.
• Chamfered ends for ease of conductor insertion, accommodating industry-standard installation tools.
• Approved for UL and CSA standards, ensuring reliability and safety.

Product Highlights

The Scotchlok 31156 compression lug is ideal for terminating copper conductors in applications where high conductivity and reliability are essential.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer Part Number: 31156

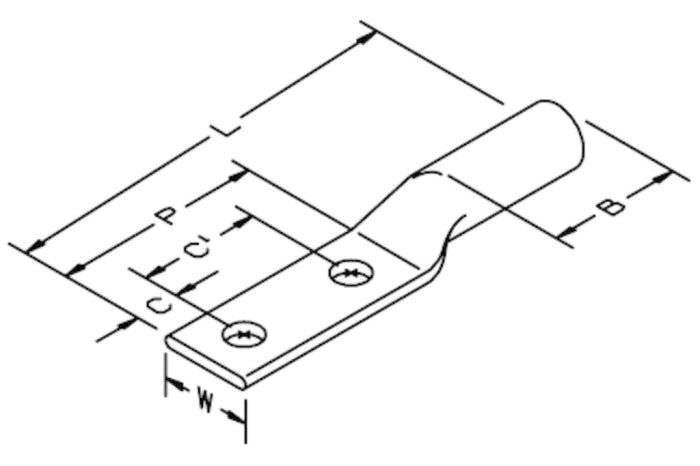

Technical Specifications

• Material: Tin Plated Copper
• Color: Red
• Overall Length: 5.75 inches
• Barrel Length: 1.94 inches
• Stud Size: 1/2 inches
• Voltage Rating: 35 kV
• Conductor Size: 350 kcmil
• Pad Size: 3 inches x 1.13 inches
