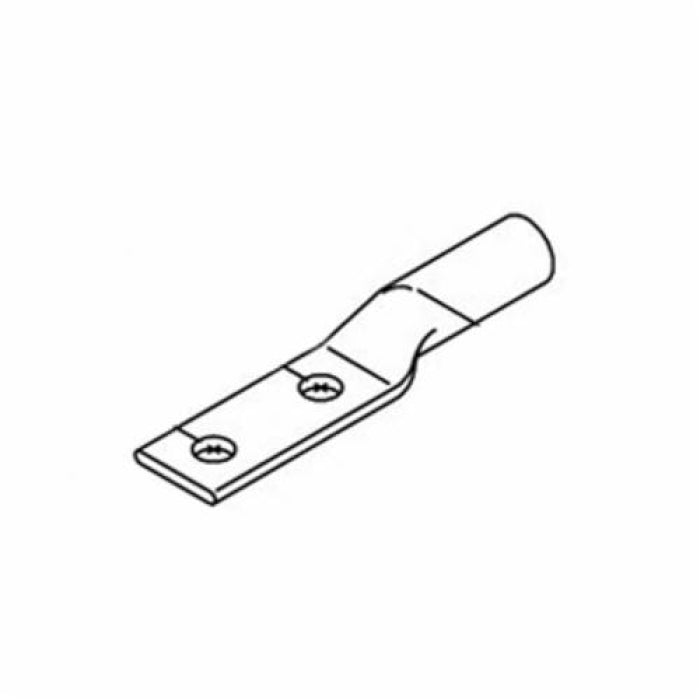

Scotchlok 31145 2-Hole Long Barrel Lug 35 KV 4/0 AWG Copper Lug

Product Description

Scotchlok Compression Lug by 3M, MPN 31145, is suitable for copper conductors and rated for high voltage applications. This compression lug features a 2-hole design and offers a long barrel length for better conductor stability. The lug is constructed from seamless, tin-plated copper which enhances conductivity and durability.

• Designed for 4/0 AWG copper conductors
• Rated for up to 35 kV voltage applications
• Compatible with standard industry tools for easy installation

Product Highlights

This product is ideal for electrical connections in various indoor and outdoor applications, ensuring reliable performance in demanding conditions.

Product Information

Standard Information

• Material: Tin Plated Copper
• Color: Purple

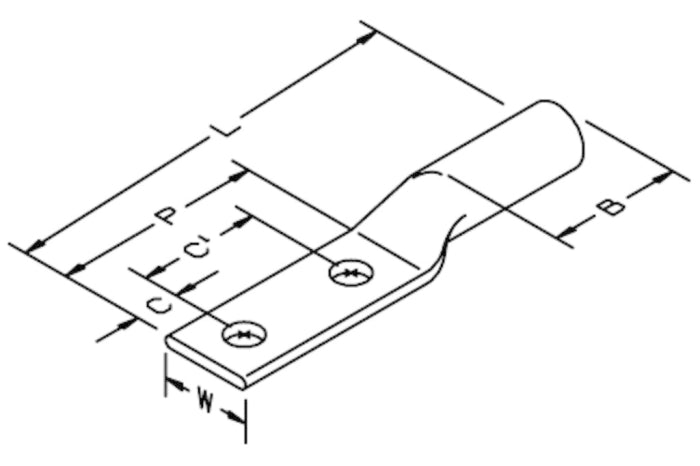

Technical Specifications

• Barrel Length: 1.56 inches
• Pad Size: 3 inches L x 1 inch W
• Stud Size: 1/2 inch
• Overall Length: 5.16 inches
• Pad Hole Spacing: 1.75 inches
• Number of Pad Holes: 2
• Voltage Rating: 35 kV
• Operating Temperature: 105 degrees Celsius
