Scotchlok 31141 Corrosion-Resistant Compression Lug 3/0 AWG Copper Conductor 1/2 in Stud

Product Description

The Scotchlok 31141 by 3M is a corrosion-resistant compression lug designed for use with 3/0 AWG copper conductors. This product features a robust two-hole configuration suitable for effective electrical connections. The lug is made from seamless copper, ensuring high conductivity, while its tin-plated finish provides additional resistance to corrosion.

• Designed for 3/0 AWG copper conductors
• Rated for up to 35 kV voltage applications
• Includes chamfered ends for easy conductor insertion

Product Highlights

The Scotchlok 31141 ensures a reliable and secure electrical connection for various wiring applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 31141

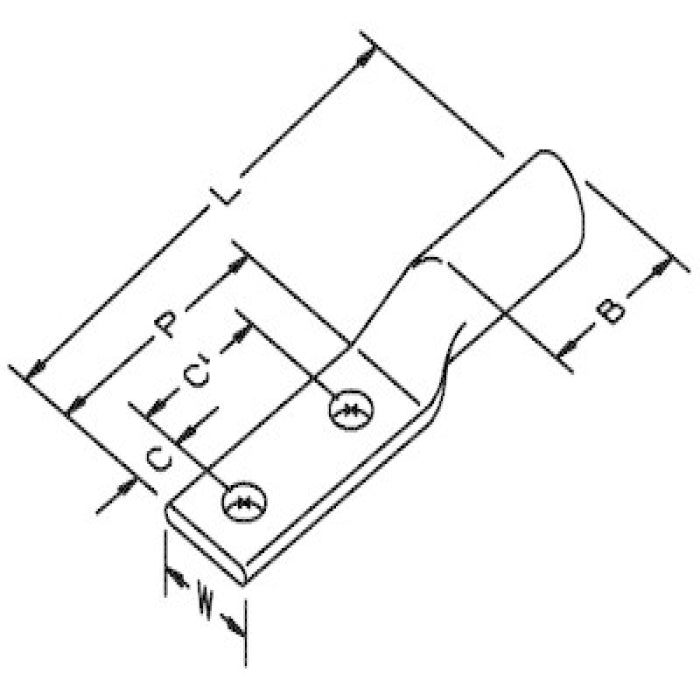

Technical Specifications

• Conductor Size: 3/0 AWG
• Voltage Rating: 35 kV
• Stud Size: 1/2 in
• Tongue Size: 3 in
• Overall Length: 5.13 in
• Barrel Size: 0.49 in ID x 1.44 in L
• Material: Copper
• Color: Orange
• Specifications: 0.62 in OD
