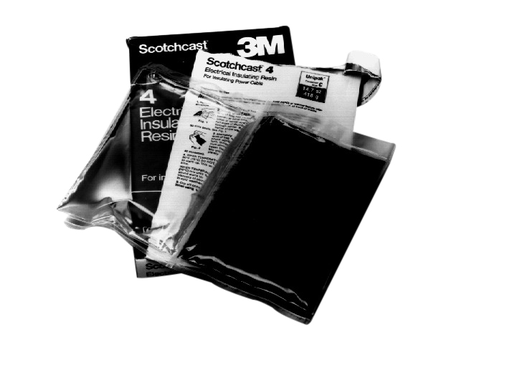

Scotchcast 7100127062 4N 2-Part Insulating Rigid Electrical Resin Size A: 3.2 oz Container

Product Description

The SCOTCHCAST 7100127062 4N is a 2-part insulating rigid electrical resin in a size A 3.2 oz container. This epoxy-based liquid resin generates its own heat to cure and is compatible with solid/synthetic cable insulations and jackets. It makes an excellent insulator and sealer for cable splicing and can be used for splicing solid dielectric and oil-filled cables up to 8 kV.

• 2-Part Insulating Rigid Electrical Resin
• 80 shore D hardness
• Has 16 min gel time at 73 deg f (23 deg c)

Product Highlights

This resin elongates 4% longer than its original size for easy insulation or wrapping and withstands a temperature range of 32 to 266 deg f (0 to 130 deg c).

Product Information

Standard Information

• Brand: SCOTCHCAST
• Manufacturer Part Number: 7100127062
• Country of Origin: US

Technical Specifications

• Form: Liquid
• Specific Gravity: 1.03
• Size: Size A: 3.2 oz Container
• Manufacturer Name: 3M
• Brand Name: Scotchcast
• UPC: 051128613474
• GTIN: 00051128613474
• Alternative Part Number: 80611616774|4N-A|051128-61347
• Applicable Materials: Synthetic
• Application: For splicing solid dielectric and oil-filled cables up to 8 kV
• Composition: STYRENATED PHENOL, HEAVY NAPHTHENIC DISTILLATE SOLVENT PETROLEUM EXTRACTS, N-AMINOETHYLPIPERAZINE, Alkyl Acids, Reaction Products With Triethylenetetramine, Alykl Acids, Reaction Products With TETA and DGEBA, Thermal cracked residuum (petroleum), PETROLEUM DISTILLATES, Reaction product of cycloaliphatic amine with aromatic, TRIS (2,4,6- DIMETHYLAMINOMONOMETHYL) PHENOL, BIS (DIMETHYLAMINO)METHYL PHENOL, CARBON BLACK, TRIETHYLENETETRAMINE
• Container Size: Size A: 3.2 oz
• Country Of Origin: US
• Curing Time: 1 to 2 hr at 70 deg F, 4 to 8 hr 50 deg F
• Flash Point: >= 201 Part A
• Flash Point UOM: deg F
• Odor/Scent: Amine
• Series: 4N
• Setting Time: 16 min
• Temperature Rating: 32 to 266 deg F
• Type: 2-Part Insulating Rigid
• Material: Epoxy
• Min Operating Temperature: 0.0 degrees C
• Tensile Strength: 4900 lb/in
• Part Number: 4N-A
• Alternate Product Number: 4N-A-3-1-31180
• Cure Type: Heat Cure
• Applications: Multi-Purpose Moisture Sealing Resin that Remains Stable, Even at Elevated Temperatures; The Resin Bonds to Itself and to Nearly all Modern Cable Jackets
• Container Type: Bag
• Dielectric Strength: 500 V/Mil
• Physical Form: Liquid
• Shelf Life: 1095 days
• Hardness: 80 Shore D
• Gel Time: 16 min @ 73 °F (23 °C)
• Tensile Strength (Imperial): 4900 psi
• Standard Approval: OSHA 29 CFR 1910.1200|ASTM Approved|RoHS 2011/65/EU
