Scotchcast 051128-61343 Inline Resin Power Cable Splice Kit 5 kV Single Conductor 1 kV Multi-Conductors

Product Description

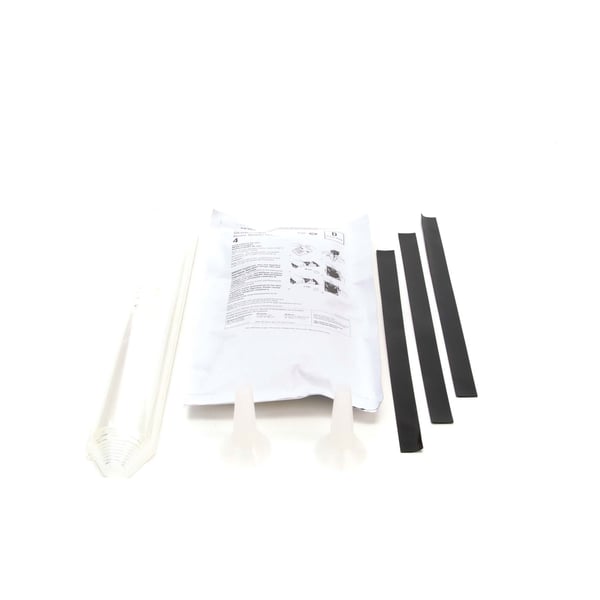

The Scotchcast 051128-61343 is an inline resin power cable splice kit made by 3M. This kit is suitable for splicing 5 kV rated unshielded single conductors and 1 kV rated multiple conductors. It's ideal for outdoor use or direct burial applications. The kit includes a mold body, pouring spouts, electrical tape, and resin.

• Insulates and seals cables effectively
• Compatible with various conductor sizes
• UL listed and RoHS compliant

Product Highlights

This splice kit is designed for reliability in tough conditions, making it a go-to for electricians and technicians.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: Scotchcast

Technical Specifications

• Type: Inline Resin
• Cable Diameter: 1 to 1.563 in
• Cable Type: Single Conductor/Portable
• Conductor Size: 3/0 AWG to 400 kcmil
• Insulation Size: 1 to 1.563 in OD
• Material: Epoxy
• Number of Conductors: Single/Multiple
• Voltage Rating: 5 kV Single Conductor, 1 kV Multi-Conductors
• Splice Length: 9 in
