Scotchcast 051128-61338 Inline Resin Power Cable Splice Kit 5 kV Single Conductor 1 kV Multi-Conductors

Product Description

The Scotchcast 051128-61338 is a splice kit made by 3M. This inline resin power cable splice kit insulates and seals unshielded cables. It is designed for use with 5 kV rated single conductor cables and 1 kV rated multi-conductor cables. Ideal for installations in harsh environments, this kit is useful in weather-exposed or direct burial applications.

• Insulates and seals up to 5 kV rated cables
• Includes materials necessary for safe splicing
• Suitable for direct burial and outdoor use

Product Highlights

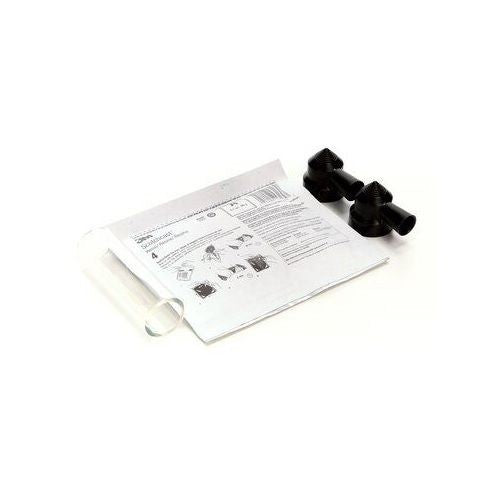

This kit includes a mold body, pouring spouts, electrical tape, and resin for effective sealing and insulation.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: Scotchcast

Technical Specifications

• Cable Diameter: 0.6 in
• Cable Type: Single Conductor/Portable
• Conductor Size: 10 to 2 AWG
• Insulation Size: 0.406 to 0.75 in OD
• Material: Epoxy
• Number of Conductors: Single/Multiple
• Series: 82-AN
• Splice Length: 4-1/2 in
• Type: Inline Resin
• Voltage Rating: 5 kV Single Conductor, 1 kV Multi-Conductors
