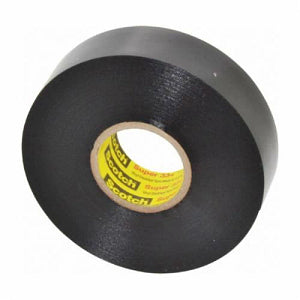

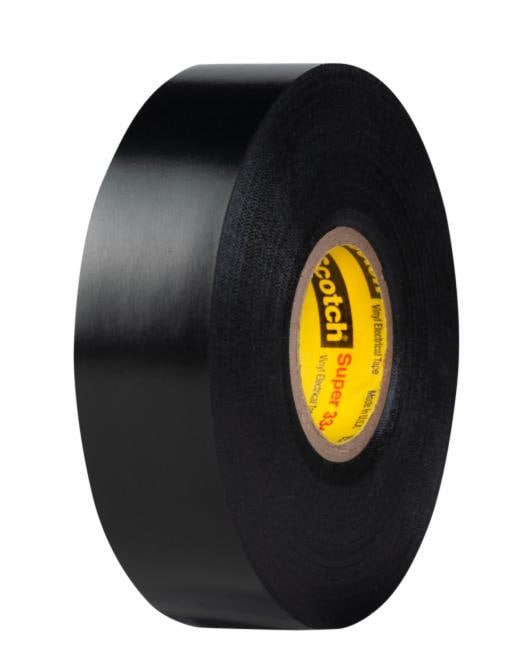

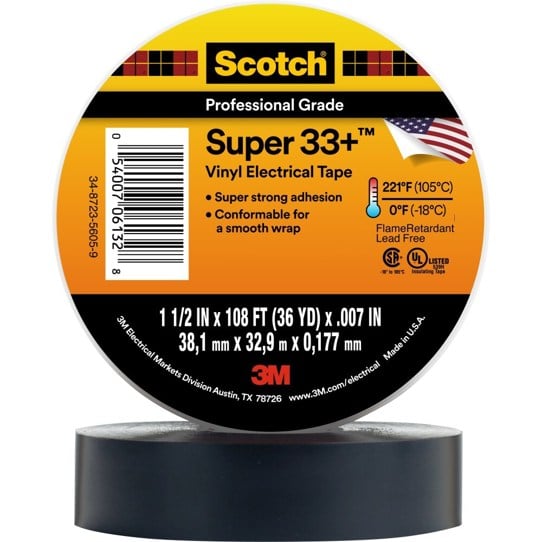

Scotch 7000031512 Tape 36 yd L x 1-1/2 in W, 7 mil THK

Product Description

The Scotch 7000031512 Tape measures 36 yd L x 1-1/2 in W with a 7 mil thickness. This tape features a rubber adhesive and PVC backing. It is suitable for providing electrical insulation for wires and cables up to 600V and can withstand temperatures up to 221 deg F.

• Used for protective jacketing on high voltage cable splices and repairs and to harness and bundle wires and cable
• Compatible with solid dielectric cable insulations, rubber and synthetic splicing compounds and epoxy and polyurethane resins
• Highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids

Product Highlights

This tape is designed for electrical and mechanical protection, suitable for indoor and outdoor applications, and is UL and CSA certified.

Product Information

Standard Information

• Brand: SCOTCH
• Manufacturer Part Number: 7000031512
• Country of Origin: US

Technical Specifications

• Length: 36 yd
• Width: 1-1/2 in
• Thickness: 7 mil
• Adhesive: Rubber
• Backing Material: PVC
• Manufacturer Name: 3M
• Brand Name: Scotch
• UPC: 054007502364
• GTIN: 00054007502364
• Adhesion Strength: 28 to 60 in-oz
• Alternative Part Number: 7631885|33+-1.5X36YD-1.5
• Application: Premium
• Core Diameter: 1-1/2 in
• Country Of Origin: US
• Dielectric Strength: 1150 V/mil
• Maximum Operating Temperature: 221 deg F
• Specifications Met: ASTM D3005
• Tensile Strength: 15 in-lb
• Type: 1-Sided Premium-Grade
• Voltage Rating: 600 VAC
• Adhesive Type: Rubber
• Applications: Insulation
• Elongation at Break: 225%
• Flame Retardant: Yes
• Insulation Resistance: > 10^12 ohms
• Minimum Operating Temperature (Celsius): -18 ℃
• Tape Grade: Professional
• Overall Length (Metric): 32.9 m
• Overall Width (Metric): 38 mm
• Tensile Strength (metric): 25.3 N/cm
• Total Tape Thickness without Liner (metric): 0.178 mm
• Length (ft): 108'
• Width (Inch): 1-1/2"
• Width (Decimal Inch): 1.5000"
• Width (mm): 38.10mm
• Catalog Number: 33+-1.5X36YD-1.5
• Manufacturer: 3M Electrical Products
• Brand: Super 33+
• Made in USA: Yes
• Material: Vinyl
• Standard: UL Listed; CSA; ASTM D-3005 Type 1; VDE 0340 TEIL 3-1; SS 404 09 75
• Item Type: Vinyl
• Size: 1-1/2x36YD
• Series: Super 33 Plus Series
