Scotch 27-1/2X66 Premium-Grade Special Use Electrical Tape 66 ft Length 1/2 in Width 27-1/2X66

Product Description

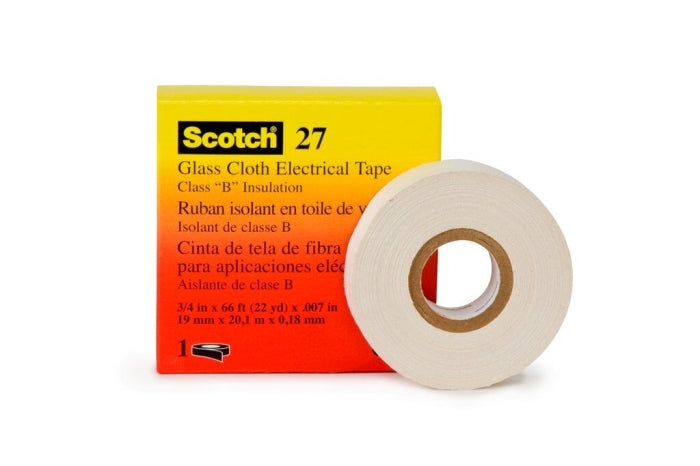

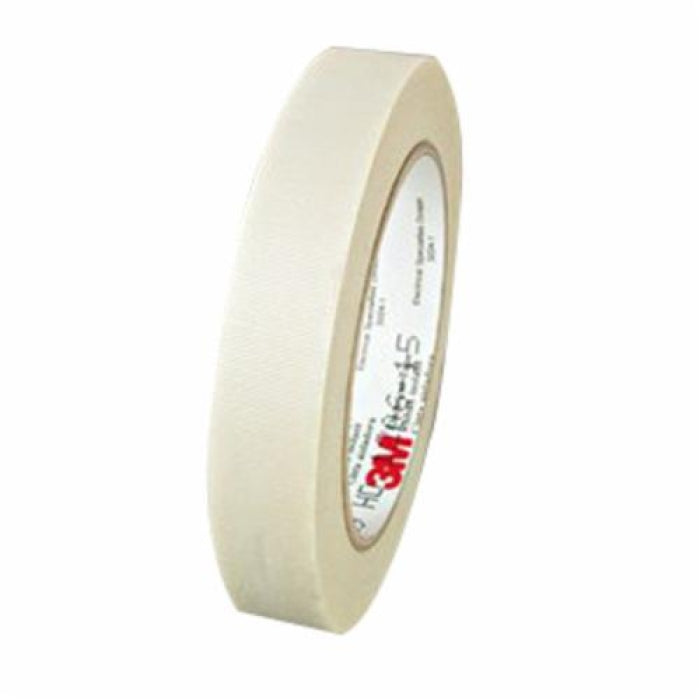

Scotch 27-1/2X66 is a glass cloth electrical tape from 3M. This tape is woven and measures 66 feet in length and 1/2 inch in width. It has a thickness of 7 mils and uses a thermosetting rubber adhesive. It is designed for high-temperature and high-voltage applications.

• Operates at 600 volts in dry applications.
• Edge-tear resistant and abrasion resistant.
• Printable for custom labels.

Product Highlights

This premium-grade tape provides superior insulating properties. It is ideal for electrical maintenance, including insulating electric and induction-type furnace power supply leads.

Product Information

Standard Information

• Brand: 3M
• MPN: 27-1/2X66

Technical Specifications

• Material: Glass Cloth
• Length: 66 feet
• Width: 1/2 inch
• Thickness: 7 mil
• Voltage Rating: 600 VAC
• Adhesion Strength: 30 in-oz
• Dielectric Strength: 3000 VAC
• Tensile Strength: 150 lb/in
• Temperature Rating: 32 - 302 degrees F
• Core Diameter: 3 inches
• Specifications Met: UL Listed, CSA Certified
