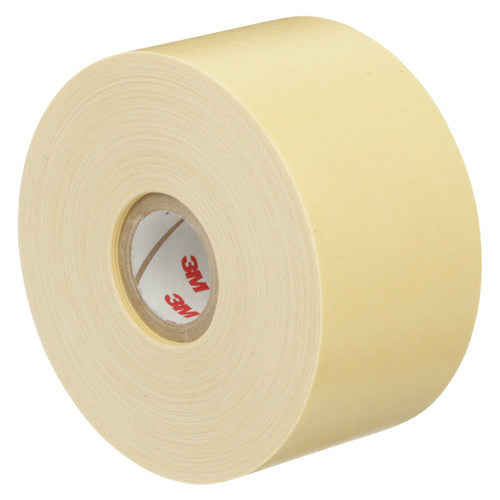

Scotch 2520-2X36YD-K Insulating Varnished Cambric Electrical Tape 2 inch x 36 yd replacement mpn

Product Description

The Scotch 2520-2X36YD-K insulating varnished cambric electrical tape provides a strong layer of mechanical protection while ensuring easy re-entry. This 8-mil thick tape supports dielectric connections and is resistant to abrasion, punctures, and scraping. It features a pressure-sensitive rubber-resin adhesive and a woven cotton cambric fabric backing that is oil-primed and varnished with electrical-grade insulating varnish.

• 8-mil thick tape for mechanical protection
• Pressure-sensitive rubber-resin adhesive
• Woven cotton cambric fabric backing

Product Highlights

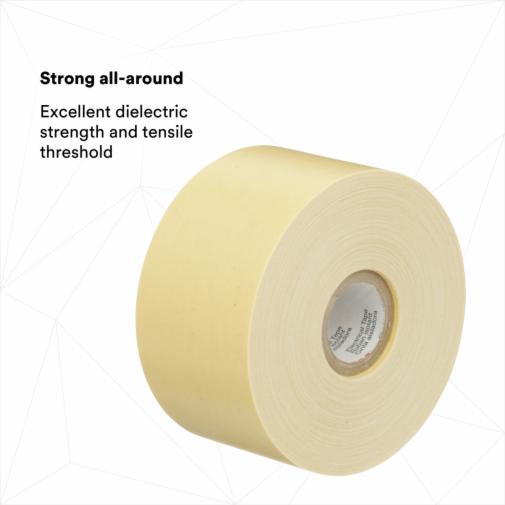

The Scotch 2520-2X36YD-K tape offers excellent dielectric strength and tensile strength for use in bus bars, motor leads, and service drop connections.

Product Information

Standard Information

• Brand: SCOTCH
• Manufacturer Part Number: 2520-2X36YD-K
• Country of Origin: United States

Technical Specifications

• Catalog Number: 2520-2X36YD-K
• Manufacturer: 3M Electrical Products
• Brand: Scotch
• Country of Origin: United States
• Made in USA: Yes
• UPC: 054007048343
• GTIN: 00054007048343
• Type: Electrical Insulating, Adhesive
• Length: 36 YD
• Width: 2 Inch
• Thickness: 8 Mil
• Material: Cotton Cambric
• Finish: Yellow
• Dielectric Strength: 800 V per Mil
• Maximum Continuous Temperature: 220 Deg F
• Breaking Strength: 50 Lb
• Adhesive Type: Rubber Resin
• Application: Electrical Maintenance
• Application/Industry: Utility, Irrigation, Industrial Construction, Solar, Appliance and Fixture, Maintenance and Repair Operations, Mining, Commercial Construction, Wind Power
• Backing (Carrier) Material: Cotton Cloth

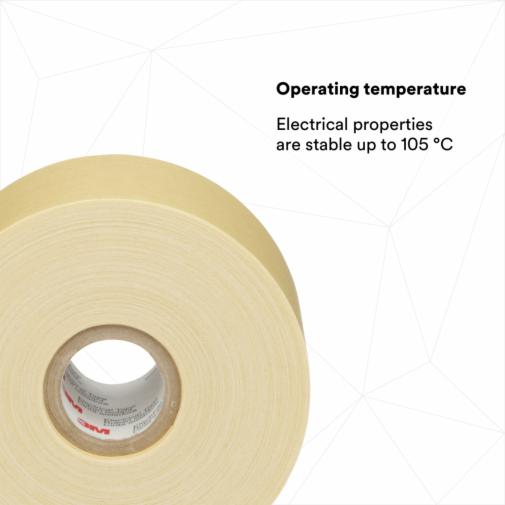

• Maximum Operating Temperature (Celsius): 105 ℃
• Overall Length (Imperial): 36 yd
• Overall Length (Metric): 32.9 m
• Overall Width (Imperial): 2 in
• Overall Width (Metric): 50.8 mm
• Tensile Strength (Metric): 876 N/100mm
• Total Tape Thickness without Liner (Imperial): 15 mil
• Total Tape Thickness without Liner (Metric): 0.203 mm
• Tape Grade: Professional
• Specifications Met: ASTM D-295, ASTM D-374, ASTM D-1000, RoHS 2011/65/EU
• Width (Decimal Inch): 2.0000"
• Width (mm): 50.80mm
