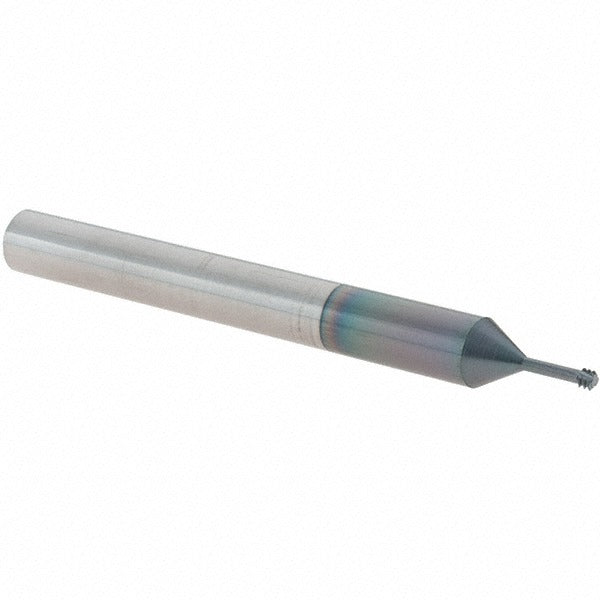

Scientific Cutting Tools TMLR2.5.45MMELA Thread Mill M2.5

Product Description

The SCIENTIFIC CUTTING TOOLS TMLR2.5.45MMELA is a solid carbide helical flute thread mill designed for cutting internal M2.5 x 0.45 metric coarse threads. It features three right-hand flutes, a cutting diameter of 0.073 inches, and a 0.25-inch length of cut. The tool is coated with AlTiN+ for extended tool life in demanding materials. At 2.5 inches overall length, the long-reach geometry allows access to recessed features and deep-pocket thread applications. Manufactured from submicron-grade solid carbide, it delivers dimensional accuracy and edge retention in ferrous and non-ferrous workpiece materials. A licensed machinist or CNC programmer typically selects and applies this tool.

This thread mill is suited for CNC machining centers performing internal thread milling in small-diameter applications. Its long-reach design makes it appropriate for aerospace, medical device, and precision instrumentation work where thread access is restricted. The 0.098-inch minimum nominal bore diameter defines the smallest hole into which the tool can be interpolated. No coolant-through capability is present, so external coolant or mist lubrication should be applied at the spindle during operation.

Key Features

• Cuts M2.5 x 0.45 metric coarse internal threads in a single helical interpolation pass
• Submicron-grade solid carbide substrate for rigidity and edge retention in tight-tolerance work
• AlTiN+ coating improves heat resistance and extends tool life in hardened and abrasive materials
• Long-reach design at 2.5 inches OAL provides access to recessed or deep-pocket thread features
• Three right-hand flutes balance chip evacuation with cutting stability at small diameters
• Single tool handles a range of thread depths up to 0.25 inches length of cut

Compatibility

Designed as an OEM-style replacement or direct-fit option for CNC machining applications requiring M2.5 x 0.45 metric coarse internal thread milling with a 1/4-inch straight shank.

Installation Notes

This tool is installed and operated by machinists or CNC programmers on milling centers capable of helical interpolation. Secure the 0.25-inch shank in a collet or end-mill holder to the manufacturer-recommended runout tolerance before use. Power down and lock out the spindle before tool changes. Do not use this tool in a drill press or manual mill - helical interpolation requires coordinated multi-axis CNC motion.
