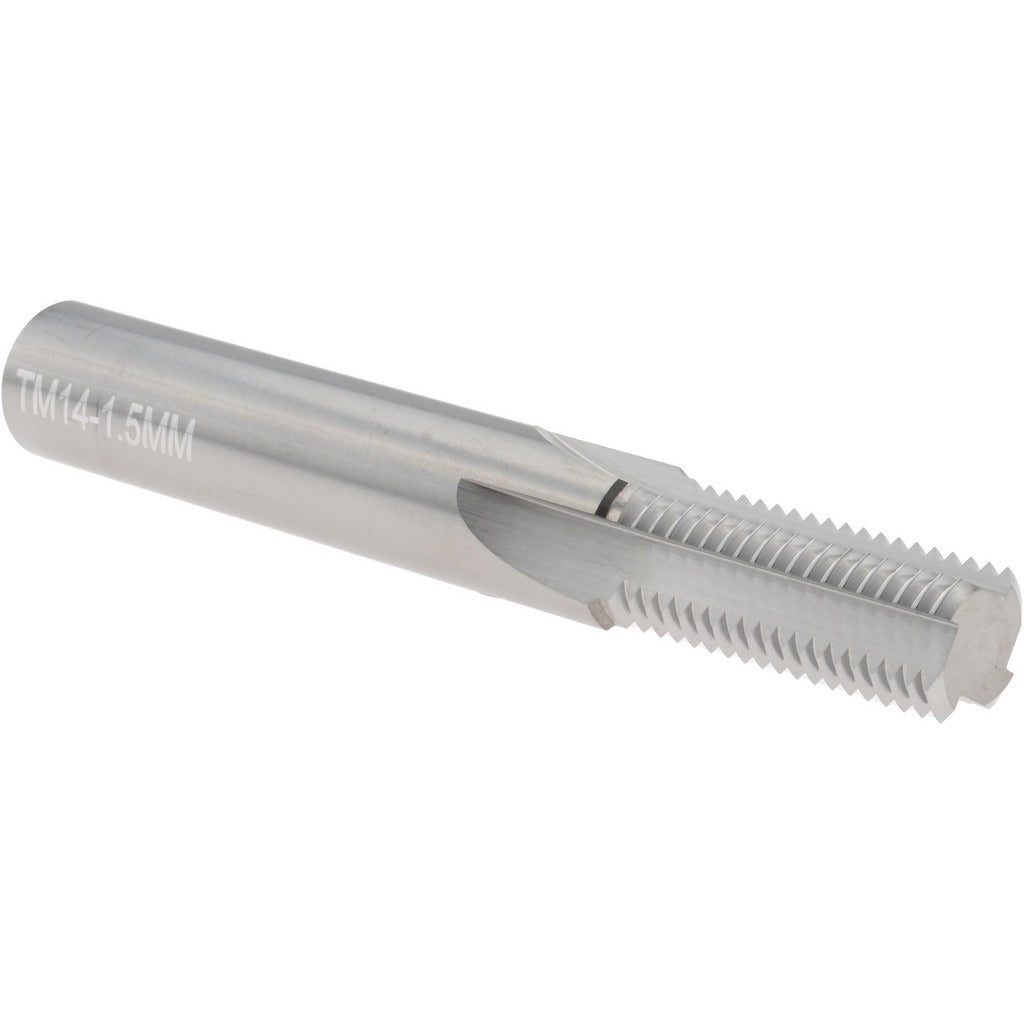

Scientific Cutting Tools Tm 14-1.5MM Thread Mill M14x1.5

Product Description

The SCIENTIFIC CUTTING TOOLS TM 14-1.5MM is a straight flute internal thread mill designed for cutting M14x1.5 metric fine threads in a single helical pass. Built from submicron-grade solid carbide, it delivers the rigidity and edge retention required for precision threading in ferrous and non-ferrous materials. The tool features 4 flutes with a bright uncoated finish, a 0.45-inch cutting diameter, and a 1.087-inch length of cut. It is installed by machinists and CNC programmers in job shops, production facilities, and aerospace or automotive component manufacturing environments where thread quality and tool life are critical.

This thread mill is suited for CNC machining centers capable of helical interpolation. It targets internal M14x1.5 metric fine thread applications, typically found in precision fastener bosses, hydraulic fittings, and structural assemblies. The 0.5-inch shank diameter provides a secure grip in standard ER or side-lock toolholders, and the 3.5-inch overall length accommodates most vertical and horizontal machining center spindles without custom extension.

Key Features

• Straight flute geometry optimized for internal thread milling via helical interpolation
• Submicron solid carbide construction for extended tool life and dimensional consistency
• M14x1.5 metric fine thread standard for precision fastener and fitting applications
• Bright uncoated finish suitable for use with cutting fluids across a range of workpiece materials
• 0.5-inch shank diameter compatible with standard ER collet and side-lock toolholders
• 4-flute design balances chip evacuation with surface finish quality

Compatibility

Designed for use in CNC machining centers capable of helical interpolation for cutting internal M14x1.5 metric fine threads.

Installation Notes

Installation and programming should be performed by a qualified CNC machinist or tooling engineer. Confirm the machining center supports three-axis helical interpolation before use. Secure the tool in a properly sized collet or toolholder and verify runout before cutting. Always follow the tool manufacturer and machine builder guidelines for feeds, speeds, and coolant strategy when setting up thread milling operations.
