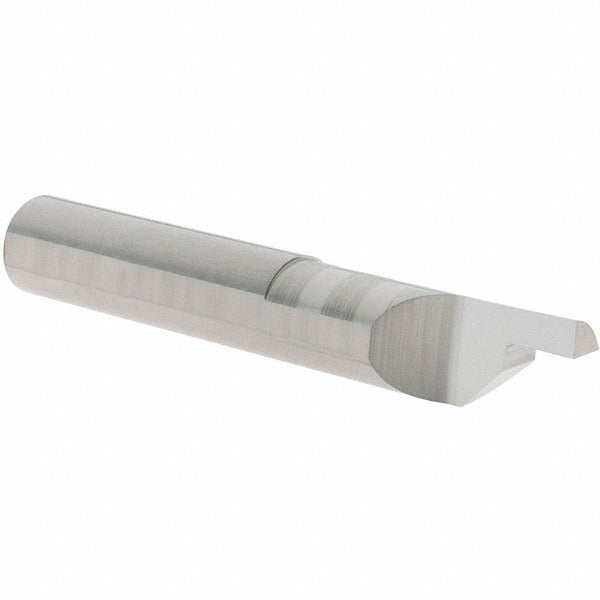

Scientific Cutting Tools FG375-125 Face Grooving Tool

Product Description

The SCIENTIFIC CUTTING TOOLS FG375-125 is a solid carbide face grooving tool designed for internal grooving operations on turned or bored workpieces. Built from submicron-grade solid carbide, it delivers the hardness and edge retention needed for consistent groove geometry in ferrous and non-ferrous materials. The tool features a 3/8-inch shank diameter and an overall length of 2.5 inches, making it compact enough for smaller bore applications. A 0.1260-inch groove width and a minimum hole diameter entry of 0.3850 inches define the working envelope. Machinists and CNC turning specialists install this tool in lathe or turning center toolholders for precision face grooving work.

This face grooving tool is suited for CNC lathe and manual turning applications where controlled groove width and depth are required on the face of a workpiece. With a maximum hole depth of 0.2500 inches, it is intended for shallow face groove operations. The submicron carbide grade supports use in both light finishing and moderate material removal passes. It is a common choice for shops producing sealing grooves, snap ring grooves, or decorative face features on round components in precision machining environments.

Key Features

• Solid submicron-grade carbide construction for edge retention and wear resistance
• 0.1260-inch groove width for precise, consistent face groove geometry
• 3/8-inch shank diameter for secure toolholder clamping
• Minimum hole diameter entry of 0.3850 inches suits small-bore face grooving
• Maximum groove depth of 0.2500 inches for shallow face groove applications
• Compact 2.5-inch overall length reduces overhang and improves rigidity

Compatibility

Designed as an OEM-style replacement or direct tooling addition for CNC lathes and turning centers accepting 3/8-inch shank face grooving tools.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. The machine spindle must be stopped and all energy sources locked out before mounting or removing tooling. Secure the 3/8-inch shank in a compatible toolholder to the manufacturer-specified clamping torque for that holder. Verify tool runout and groove width with appropriate gauging before production use.
