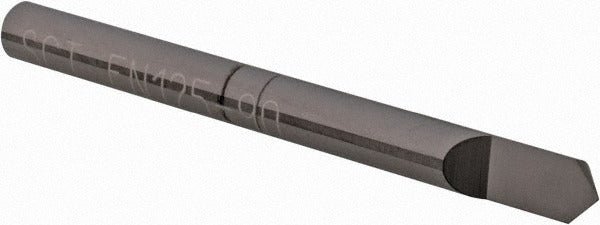

Scientific Cutting Tools EN125-90 Engraving Cutter 90 Degree

Product Description

The SCIENTIFIC CUTTING TOOLS EN125-90 is a solid carbide engraving cutter designed for precision material removal in engraving, marking, and contouring operations. Built with a 90-degree included angle and a conical point geometry, this cutter produces clean, defined lines at extremely fine detail levels. The tip diameter and cutter diameter are both 0.005 inches, making it suited for intricate work that demands tight dimensional accuracy. The carbide grade is submicron, providing hardness and wear resistance in demanding cutting applications. Installation and use are typically handled by machinists and CNC operators working with engraving machines, PCB routers, or precision milling centers.

This engraving cutter is intended for use in CNC engraving and milling applications where fine conical tip geometry is required. The 1/8 inch shank fits standard collets commonly found on engraving machines and compact machining centers. With a right-hand cutting direction, it is compatible with conventional spindle rotation used in most CNC setups. The uncoated finish makes it suitable for non-ferrous metals, plastics, and composite materials where coating adhesion or heat buildup is not a primary concern.

Key Features

• 90-degree included angle with conical point geometry for precise engraving lines
• 0.005 inch cutter diameter and 0.005 inch tip diameter for fine detail work
• Submicron solid carbide construction for hardness and edge retention
• Uncoated finish suitable for non-ferrous and plastic materials
• Right-hand cutting direction for standard CNC spindle compatibility
• 1/8 inch shank diameter fits widely used collet sizes

Compatibility

Designed as an OEM-style replacement or standard tooling option for CNC engraving machines and milling centers equipped with a 1/8 inch collet and right-hand spindle rotation.

Installation Notes

This cutter should be installed by a qualified machinist or CNC operator familiar with tool holding and runout tolerances. Power down and lock out the spindle before installing or removing the tool from the collet. Ensure the collet and collet nut are clean and free of debris before seating the shank. Do not exceed the rated depth of cut for the 0.059 inch length of cut specification to avoid tool deflection or breakage.
