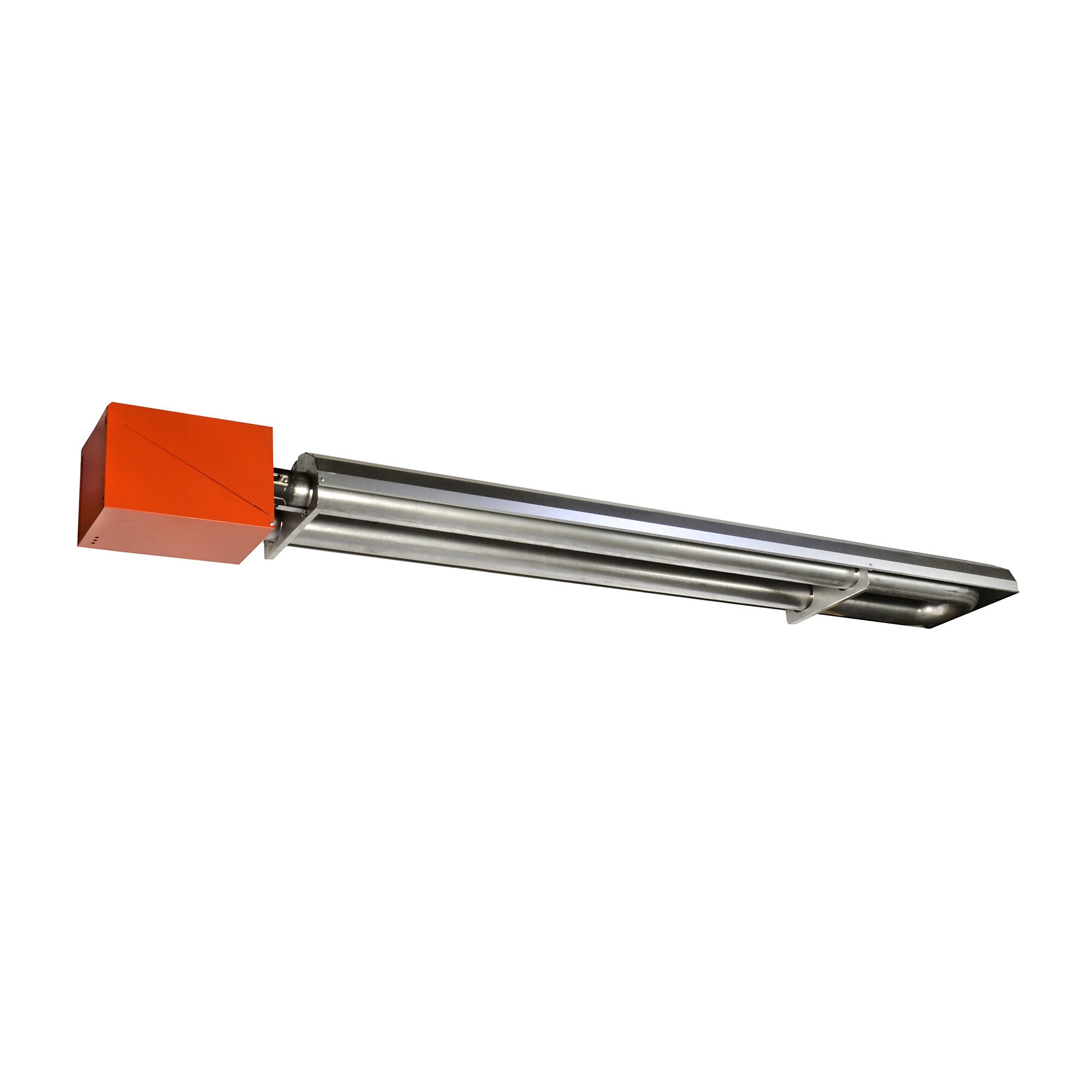

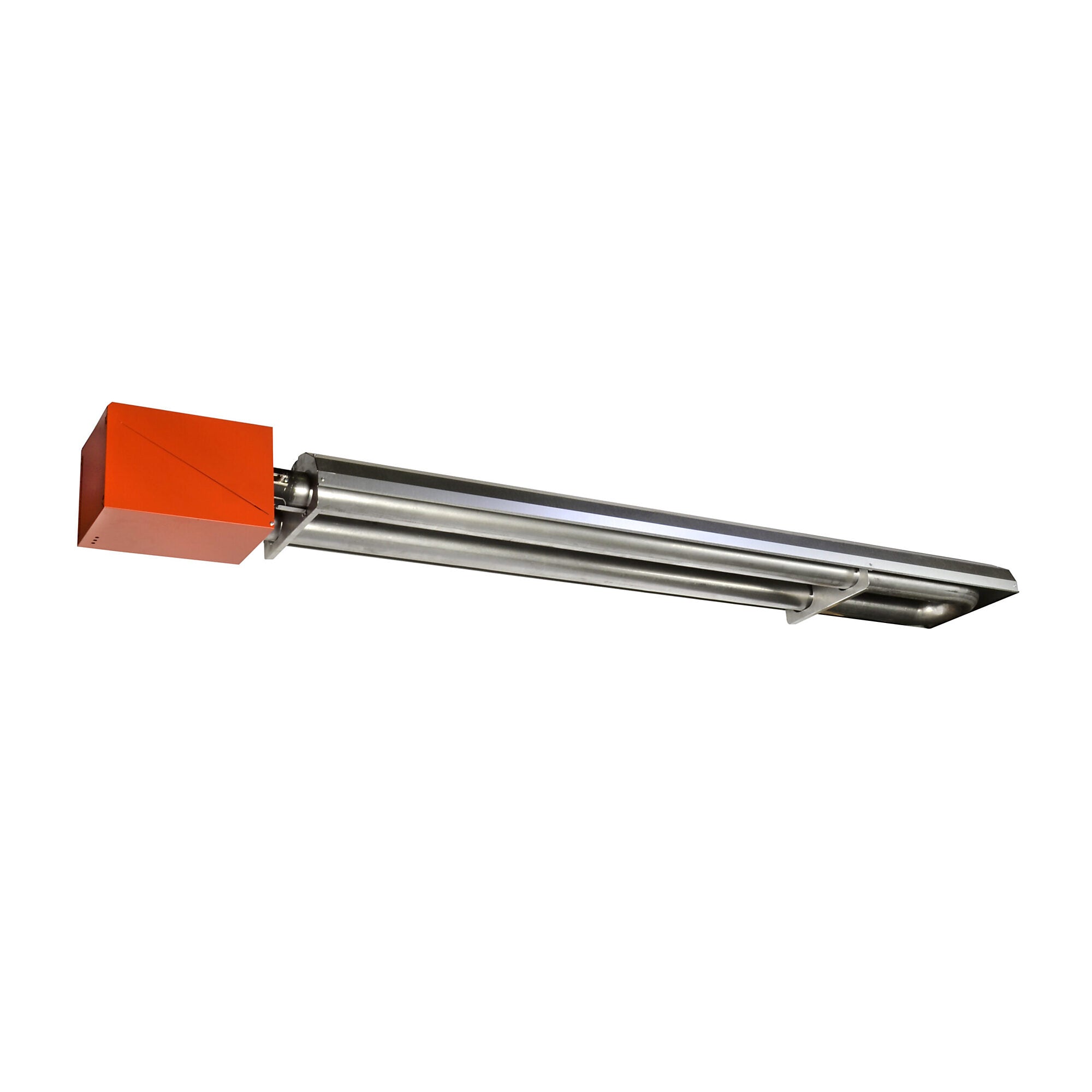

Schwank S100U-80-10-AN S100 U-Tube Heater 80,000 Btuh 10 feet

Product Description

The SCHWANK S100U-80-10-AN is a BuilderSchwank S100 U-Tube Heater designed for commercial and industrial indoor heating. This 10-foot tube heater operates with an 80,000 Btuh input, utilizing natural gas and a 120Vac power supply with 24Vac controls. It features a builder reflector and wire hangers for installation, providing efficient infrared heating for various applications.

• Operates with an 80,000 Btuh input and a 10-foot tube for effective heating.
• Includes a flexible gas connector and wire hangers for installation.
• Utilizes energy-efficient infrared technology for indoor spot heating applications.

Product Highlights

This U-tube heater offers energy-efficient infrared heating with quiet operation, designed for unobtrusive overhead mounting and easy maintenance.

Product Information

Standard Information

• Brand: SCHWANK
• Manufacturer Part Number: S100U-80-10-AN
• Country of Origin: USA

Technical Specifications

• Application: Commercial, Indoor, Industrial
• Series: builderSchwank
• Fuel Type: Natural Gas
• Mounting Type: Ceiling
• BTU Input: 80000
• Heat Output: 80,000 Btu/hour
• Heat Type: Infrared
• Heating Capability: 2,500 ft²
• Direct Venting Required: Yes
• Blower Included: No
• Thermostat Included: No
• Heat Settings: 2
• Remote Included: No
• Oxygen Depletion Sensor: No
• Hardwired: No
• Input Voltage: 120V
• Burner Type: Single-Stage
• Included Components: Flexible Gas Connect
• Controls Voltage: 24Vac
• Hanger Type: Wire Hanging
• Reflector Material: 26GA Aluminized Steel
• Amperage: 1.5 Amps
• Frequency: 60 Hz
• Phase: 1 Phase
• Gas Connection Size: 1/2 Inches
• Heating Element Type: Infrared, Steel
• Material: Ceramic
• Power Type: Electric, Natural Gas
• Product Line: Schwank S100U Series
• Usage: Indoor
