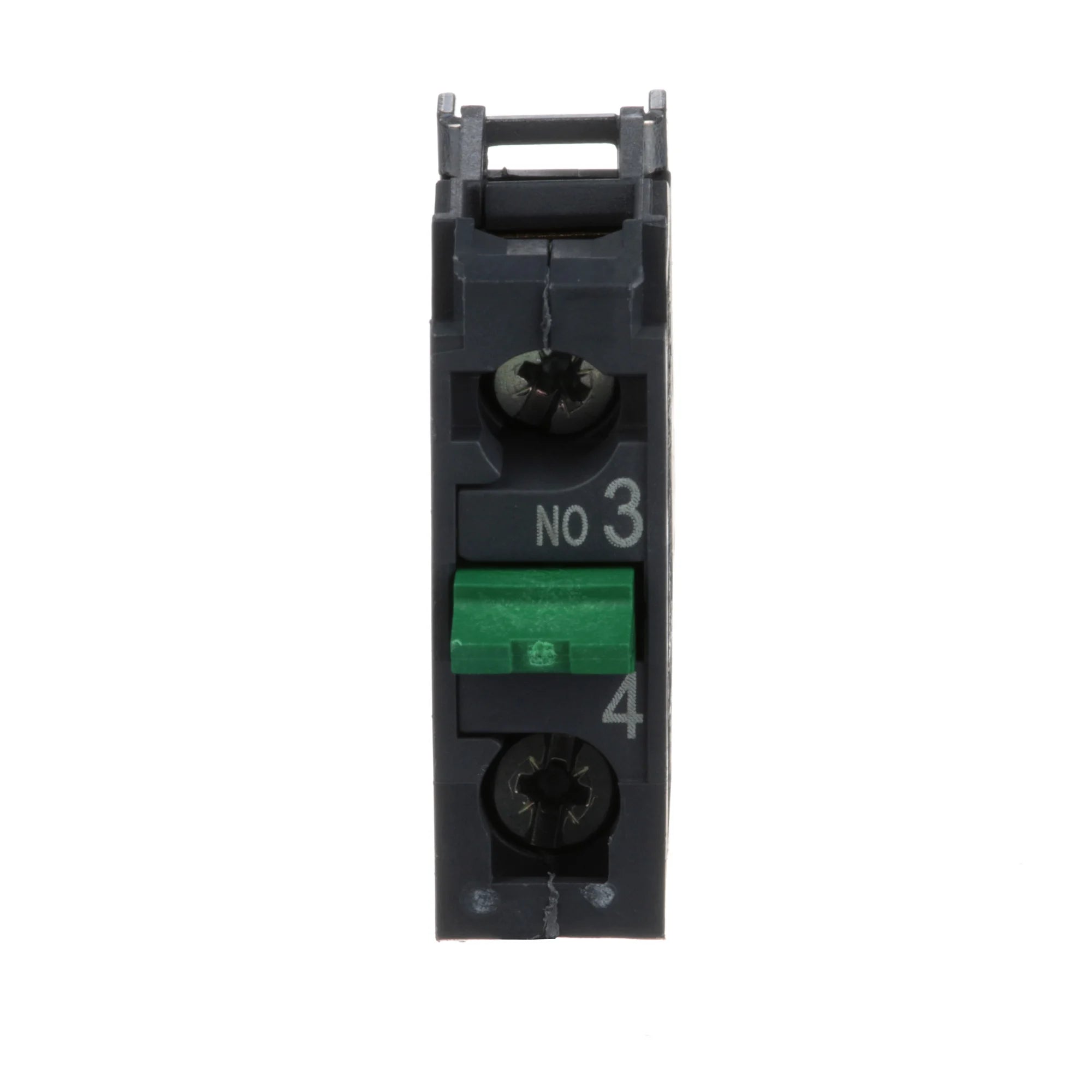

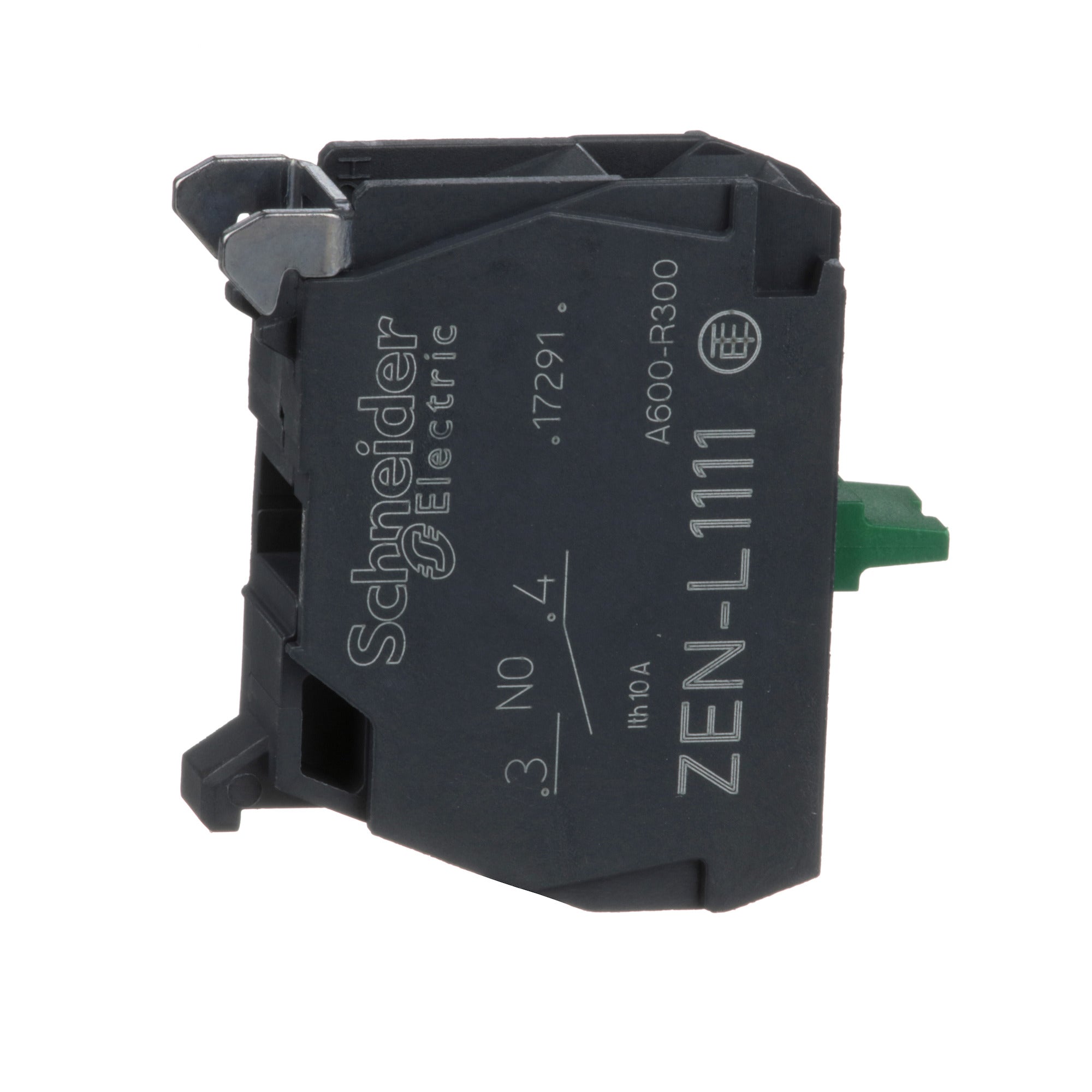

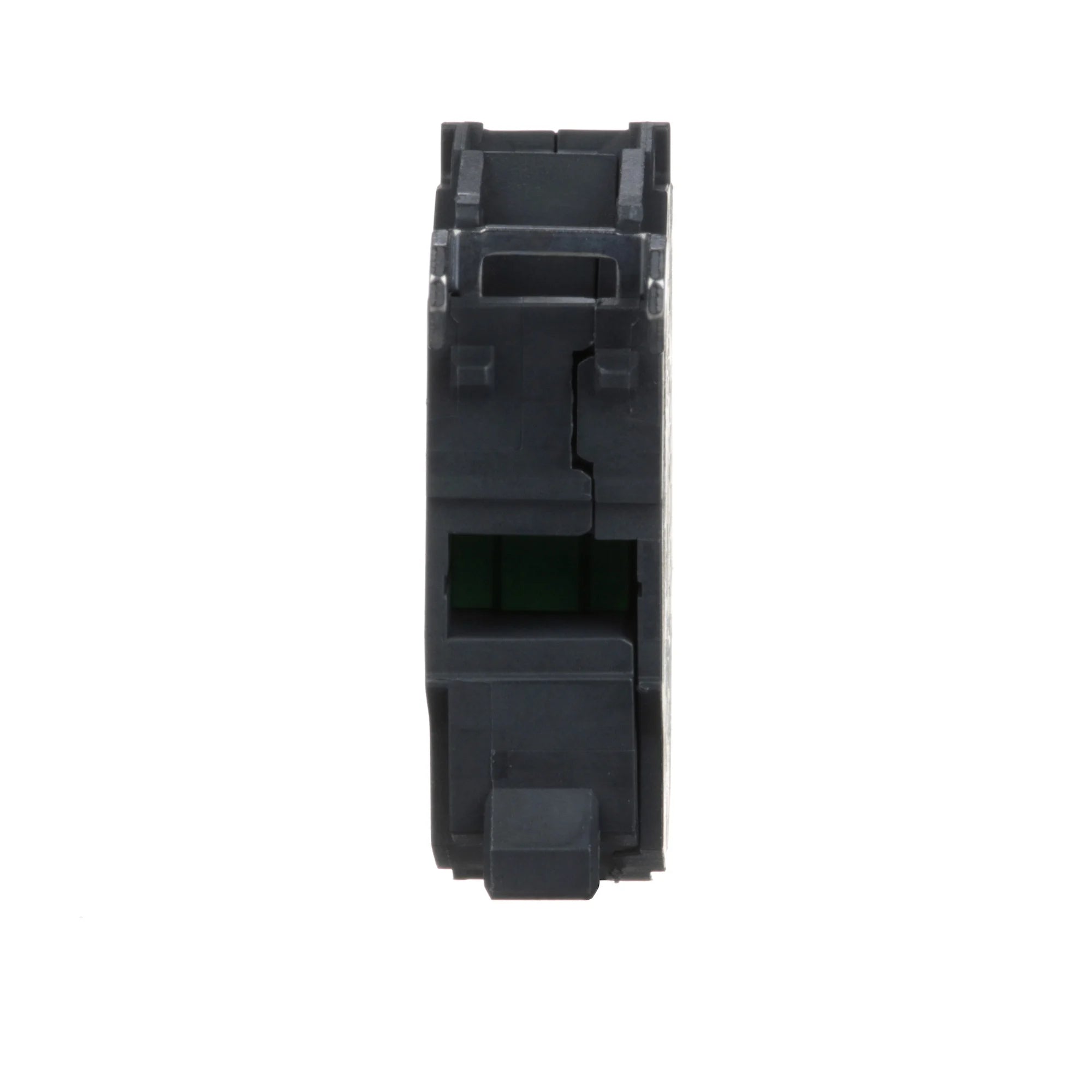

Schneider Electric ZENL1111 Square D 22 mm 1NO Metal Plate Mounting Standard Contact Block

Product Description

Schneider Electric ZENL1111 is a 22 mm contact block designed for versatile industrial use. This product features a standard configuration with one normally open (NO) contact that is easy to install and maintain. The ZENL1111 contact block is suitable for various applications, connecting with push buttons and control stations.

• Designed for panel mount with screw clamp terminals
• Compatible with Harmony XB5 and other 22 mm units
• Certified for global use in various industrial environments

Product Highlights

The contact block provides reliability and versatility, making it ideal for machine manufacturers and panel builders. It ensures safe operation in harsh conditions with IP ratings up to IP66 and IP69K.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: ZENL1111

Technical Specifications

• Type: Contact block
• Action: 1 NO; Slow-break
• Voltage: 600 Volt
• Amperage: 3 Amp 240 V, AC-15
• Weight: 0.03 lb
• Warranty Length: 18 months
• Operating Temperature: -40 to 70 degrees C
• Country of Origin: France
