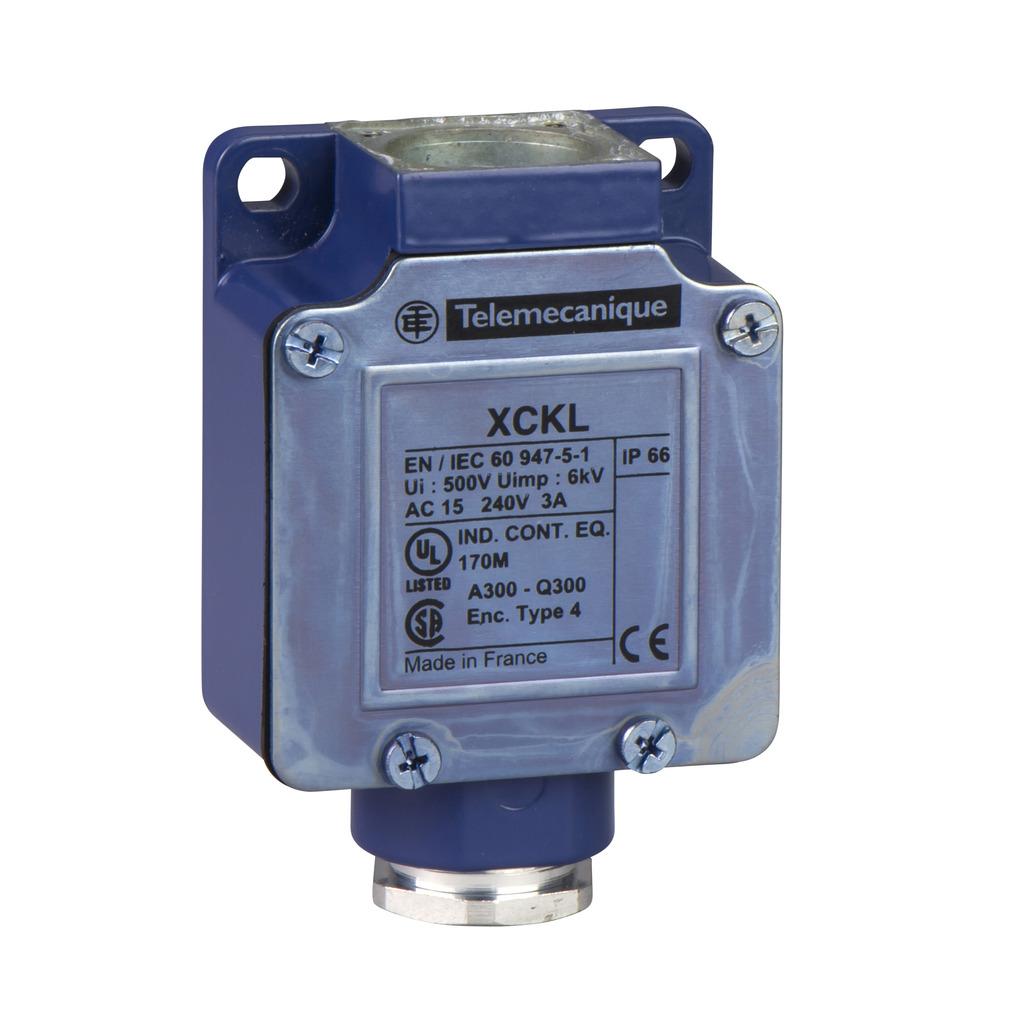

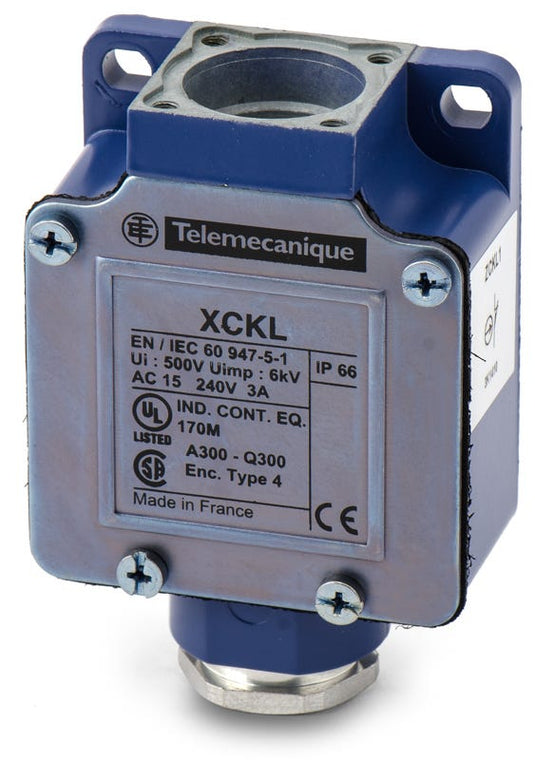

Schneider Electric ZCKL1 Limit Switch Body

Product Description

The Schneider Electric ZCKL1 is a limit switch body that is suitable for automation and industrial applications. This two-pole switch body features a sturdy metal construction and has a positive opening mechanism. It comes with silver-plated contacts arranged in a one normally closed (1NC) and one normally open (1NO) configuration, and employs snap action for reliable operation. The switch features screw clamp terminals for secure connections. It is rated for NEMA classifications one, two, three, four, and twelve, and offers IP66 protection for durability in harsh environments.

• Metal construction ensures reliability.
• Includes one NC and one NO contact configuration.
• Screw clamp terminals for easy connection.

Product Highlights

The ZCKL1 limit switch is designed for demanding applications, making it a good choice for various industrial settings.

Product Information

Standard Information

• Manufacturer: Schneider Electric / Square D / Telemecanique
• Part Number: ZCKL1

Technical Specifications

• Series: ZC
• Poles: 2
• Contact Configuration: 1 NC + 1 NO
• Connection Type: Screw clamp terminals
• NEMA Rating: NEMA 1/2/3/4/12
• IP Protection: IP66
• Duty Rating: General Duty
• Amperage: 10A
• Voltage: 240V
• Temperature Range: -25 to 70 °C
