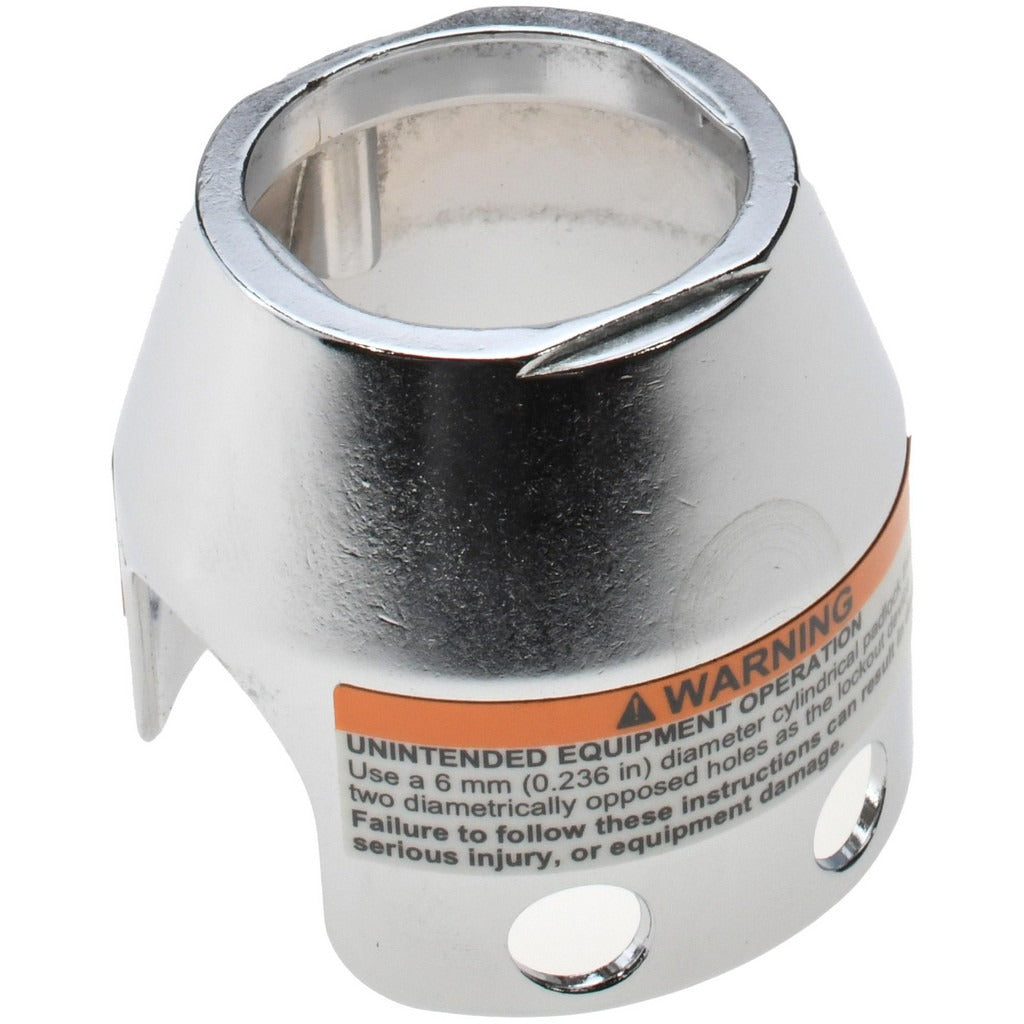

Schneider Electric ZBZ1600 Pushbutton Switch Guard

Product Description

The SCHNEIDER ELECTRIC ZBZ1600 is a chrome metal guard designed to protect extended mushroom head pushbutton operators in industrial and commercial control panel applications. This switch accessory fits over the mushroom head actuator to prevent accidental activation while still allowing intentional operation. Constructed from metal with a chrome finish, the ZBZ1600 provides durable mechanical protection in demanding environments. It ships as a single unit and is the correct replacement guard for technicians servicing Harmony and ZB-series pushbutton stations. Electricians and panel builders install this type of guard during new panel builds or as part of scheduled maintenance on existing control stations.

The ZBZ1600 guard is suited for use in industrial control panels, machine guarding applications, and commercial electrical enclosures where accidental mushroom head actuation could trigger unintended equipment operation. It is designed specifically for use with Harmony XB4 and XB5 series operators as well as ZB4 and ZB5 series pushbutton components. Typical installation scenarios include motor control centers, conveyor control stations, and process control panels where operator safety and reliable pushbutton performance are required.

Key Features

• Chrome metal construction for durable corrosion resistance in industrial environments
• Designed for extended mushroom head pushbutton actuators
• Compatible with Harmony XB4, XB5, ZB4, and ZB5 series pushbutton operators
• Single-piece accessory requiring no additional hardware for fitment
• Compact form factor at 2 inches height, 2.2 inches width, and 2 inches length

Compatibility

Designed for use with Harmony XB4, Harmony XB5, XB4BS8, XB4BS9, XB4BT8, XB5AS8, XB5AS9, XB5AT8, ZB4BS8, ZB4BS9, ZB4BT8, ZB5AS8, ZB5AS9, and ZB5AT8 pushbutton operators.

Installation Notes

Installation of this pushbutton guard is performed by a licensed electrician or qualified control panel technician. Always de-energize the control panel and follow lockout/tagout procedures per NFPA 70E before servicing any pushbutton operator or installing accessories. Verify fitment against the existing operator series before installation to confirm compatibility. No special tools are typically required for guard attachment to the operator body.
