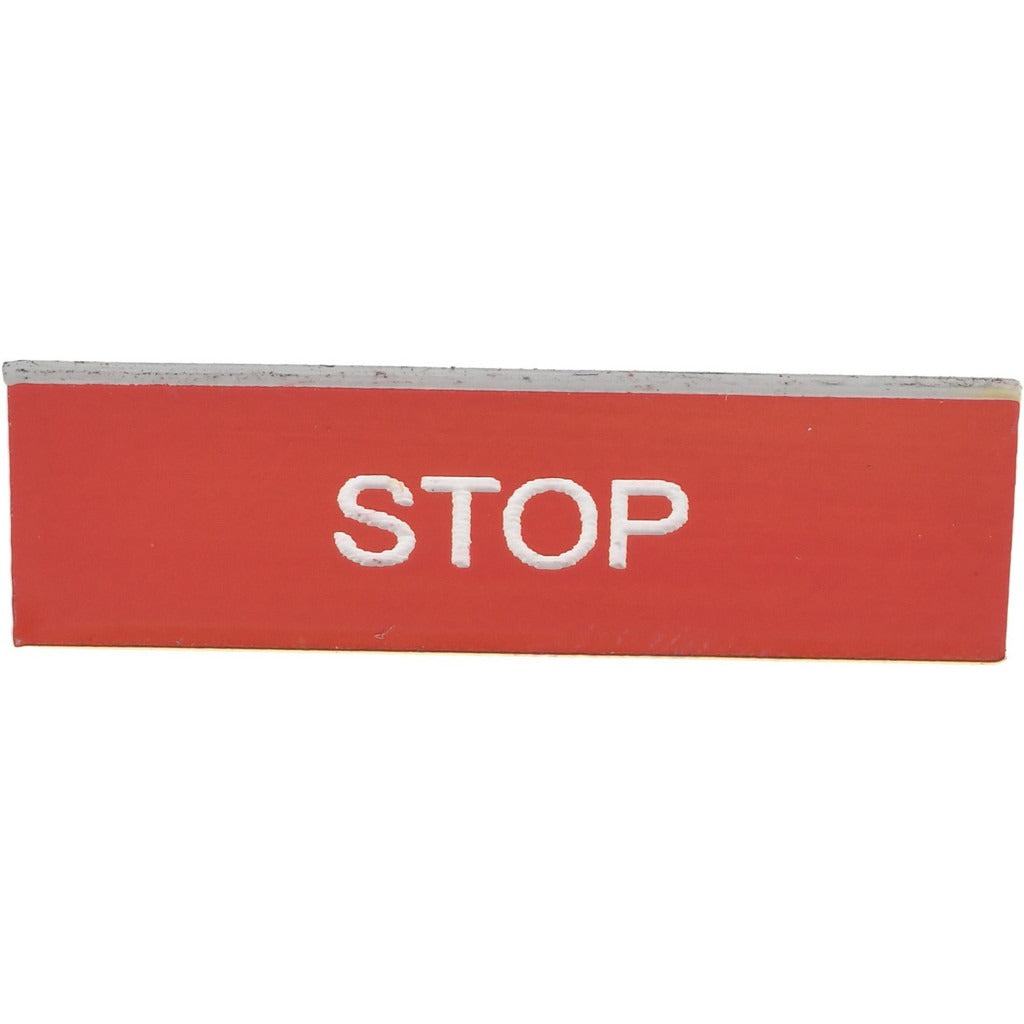

Schneider Electric ZBY02304 Legend Plate Insert Stop

Product Description

The SCHNEIDER ELECTRIC ZBY02304 is a rectangular legend plate insert designed for industrial control panel pushbutton stations and selector switches. This insert displays the word "Stop" in white letters on a black and red background, providing a clear visual indicator for machine operators and control system users. Measuring 8 millimeters wide by 27 millimeters high, it fits within standard 30 x 40 mm legend plate holders. Electricians and panel builders install these inserts when building or refurbishing control enclosures to label actuator functions in compliance with machine safety standards and facility labeling requirements.

This legend plate insert is suited for use in light industrial and heavy industrial control panel applications. It is commonly installed in new panel builds, machine retrofits, and control station upgrades where clearly marked operator interfaces are required. The insert slots into compatible legend plate frames and requires no tools for installation. It is appropriate for both indoor and NEMA-rated enclosure applications where standard pushbutton labeling is needed.

Key Features

• Stop legend marking in white letters on a black and red background for high-contrast visibility
• Rectangular form factor measuring 8 millimeters wide by 27 millimeters high
• Designed to fit 30 x 40 mm legend plate holders including ZBZ32 and ZBZ34 frames
• Compatible with Harmony XB4 and Harmony XB5 pushbutton series
• Tool-free insert installation into compatible legend plate carriers

Compatibility

Designed for use with 30 x 40 mm legend plates including ZBZ32 and ZBZ34 legend plate carriers, and compatible with Harmony XB4 and Harmony XB5 pushbutton and selector switch assemblies.

Installation Notes

Installation is performed by electricians or panel builders as part of control station assembly or maintenance. De-energize the control panel and follow applicable NFPA 70E lockout/tagout procedures before servicing any pushbutton station components. The insert slides into the legend plate carrier without tools. Verify the correct legend carrier part number is in use before installing to ensure a secure fit.
