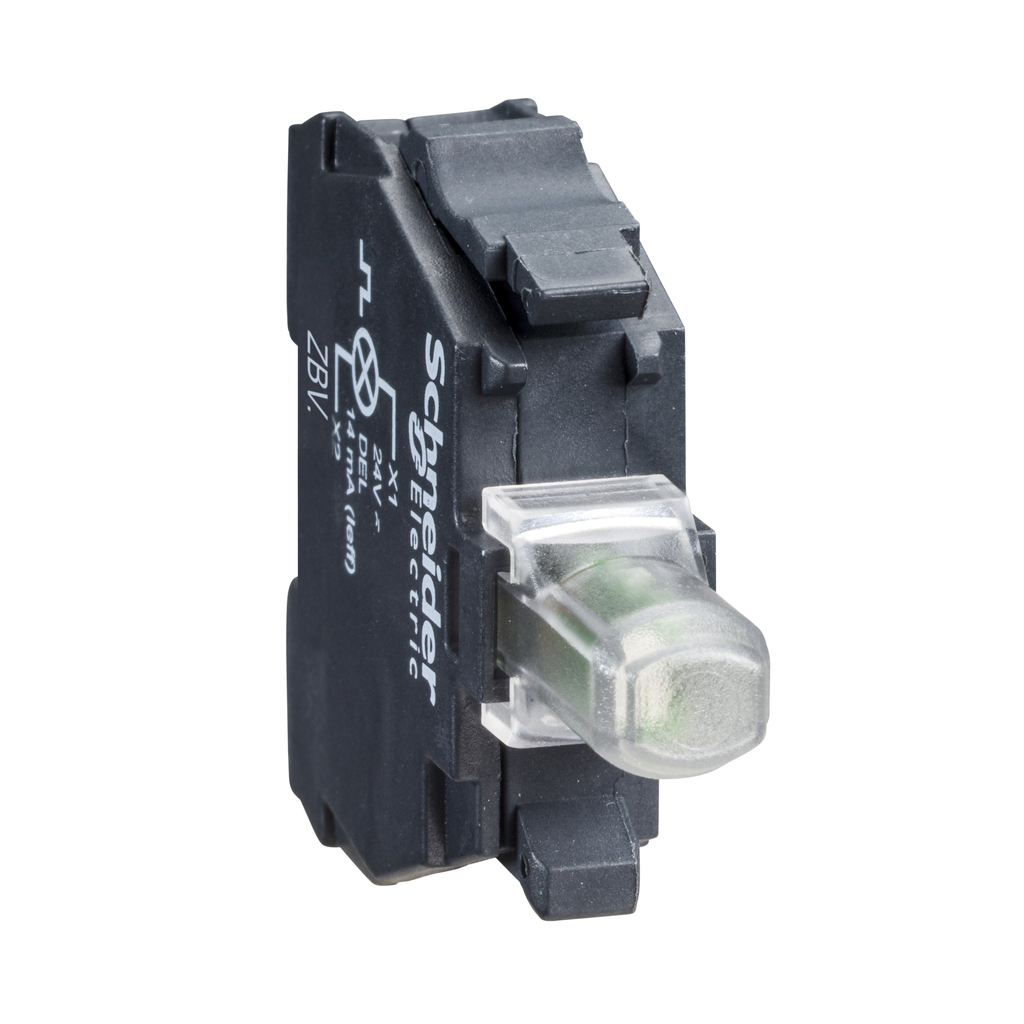

Schneider Electric ZBVM4 Square D 22 mm 230 to 240 VAC Red Push Button Light Module

Product Description

Schneider Electric ZBVM4 is a red push button light module designed for use in various control applications. It operates on 230 to 240 VAC and features an integral LED for clear visibility. The module includes screw clamp terminals for easy installation and configuration.

• Integral LED for enhanced visibility
• Compatible with illuminated push-button and selector switch units
• IP20 protection index safeguards against accidental contact

Product Highlights

Designed for easy installation, this light module allows for quick replacement and configuration of signaling units, ensuring efficiency in operations.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ZBVM4

Technical Specifications

• Catalog Number: ZBVM4
• Voltage: 230/240 VAC
• Current: 14 mA
• Type: Light block
• Size: 22 mm
• Weight: 0.04 lb
• Operating Temperature: -40 to 70 degrees C
• Certifications: CSA, UL Listed
• Country of Origin: France
• Warranty Length: 18 months
