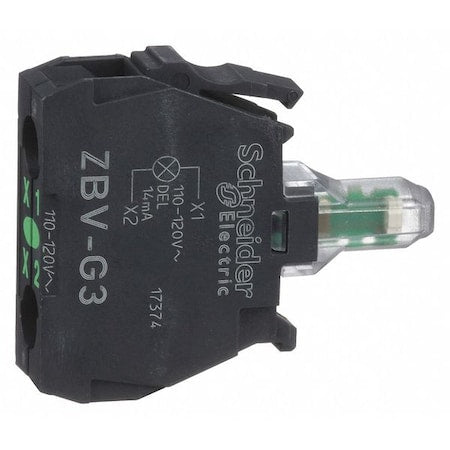

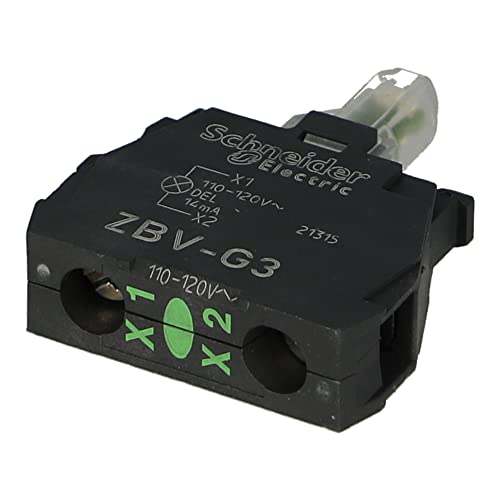

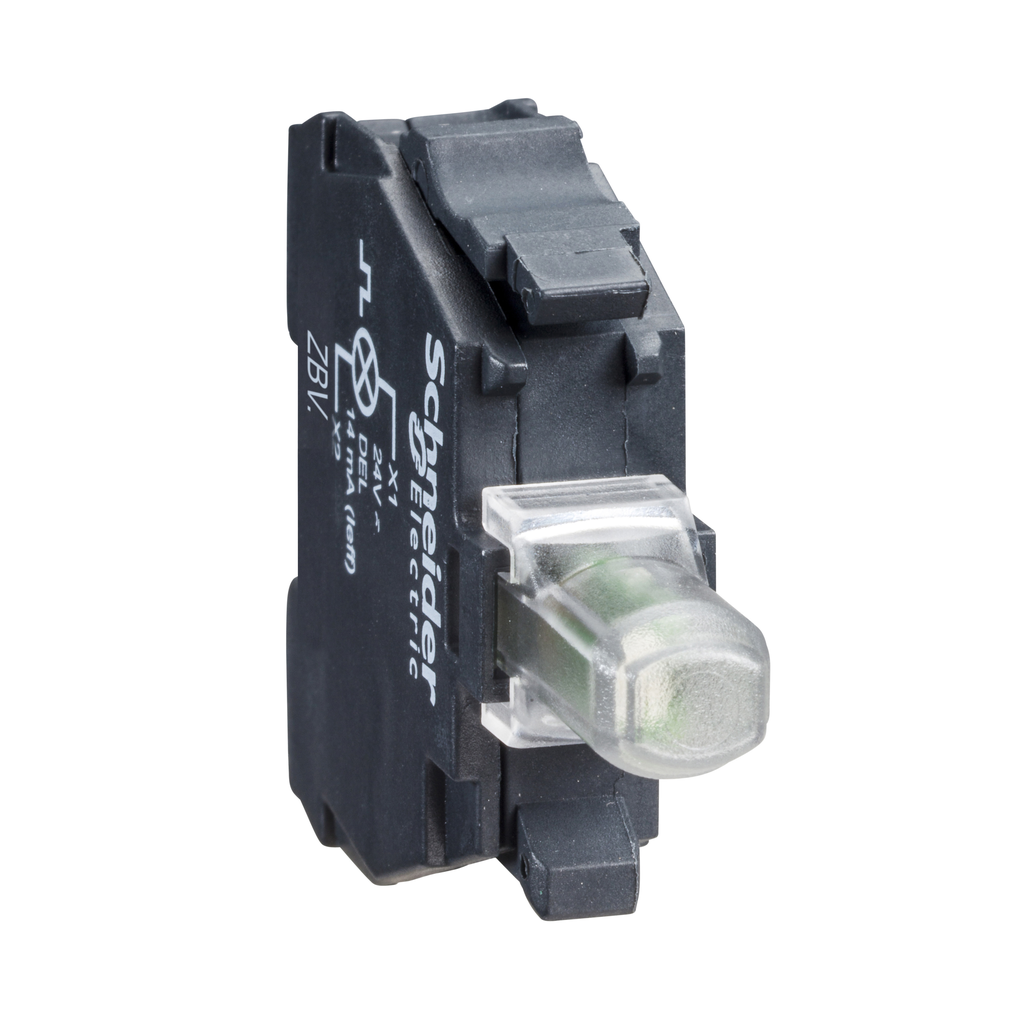

Schneider Electric ZBVG3 22 mm 110 to 120 VAC Green Push Button Light Module

Product Description

The Schneider Electric ZBVG3 is a 22 mm green push button light module designed for industrial applications. This module operates at 110 to 120 VAC and features an integral LED for illumination.

• Green LED illumination
• 22 mm size
• Seamless integration with Schneider Electric 22 mm operators

Product Highlights

This push button light module is commonly used in control systems, automotive, textiles, and timber industries. It offers a robust construction with a snap-fit head and body, making installation straightforward and secure. The LED provides clear visual indication, and the unit is certified to meet global standards.

Product Information

Standard Information

• Catalog Number: ZBVG3
• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Size: 22 mm
• Type: Light block
• Color: Green
• Weight: 0.04 lb
• Current: 14 mA
• Voltage: 110/120 VAC
• Standard: CSA, UL, EN/IEC
• Indicator: Green, Integral LED
• Net Weight: 0.017 kg
• Product UPC: 78590135544
• TC Connection: Screw Clamp
• Certifications: CSA, UL Listed
• Warranty Length: 18 months
• Country of Origin: France
• Storage Temperature: -40 to 70 degrees C
• Operating Temperature: -40 to 70 degrees C
