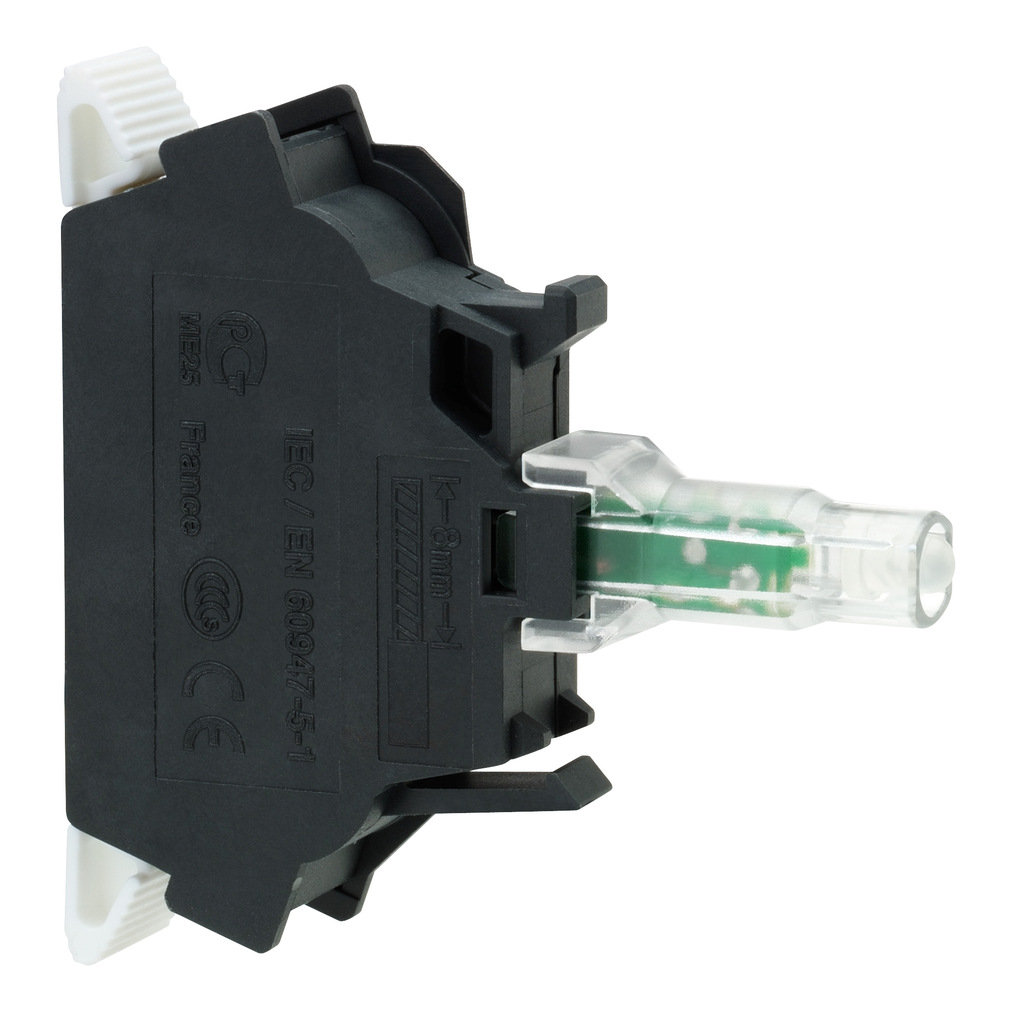

Schneider Electric ZBVB55 Light Block for Head 22mm

Product Description

The Schneider Electric ZBVB55 is a light block designed for head units with a diameter of 22mm. This block operates using an integrated LED and is powered by 24V AC/DC. It is constructed with a plastic body for durability and is compatible with the Harmony XB4 and XB5 series. The light block simplifies the replacement and configuration of signaling units.

• Operates with 24V AC/DC power
• Easy installation via spring terminals
• IP20 rated for protection against live circuits

Product Highlights

This light block allows for quick installation on compatible illuminated push-button or selector switch units. It requires minimal tools, thanks to its clip-together assembly and screw-clamp connection, facilitating fast replacements. The integral LED provides clear illumination for visual signaling, while the product’s wide operating temperature range from -40 degrees Celsius to 70 degrees Celsius offers flexibility in various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: ZBVB55

Technical Specifications

• GTIN: 03389119037525
• Color: Orange
• Weight: 0.04 lb
• Current: 18 mA
• Voltage: 24 Volt AC/DC 50/60 HZ
• Standard Compliance: CSA C22.2 No 14, EN/IEC 60947-1, UL 508
• Operating Temperature Range: -40 to 70 degrees C
• Warranty Length: 18 months
