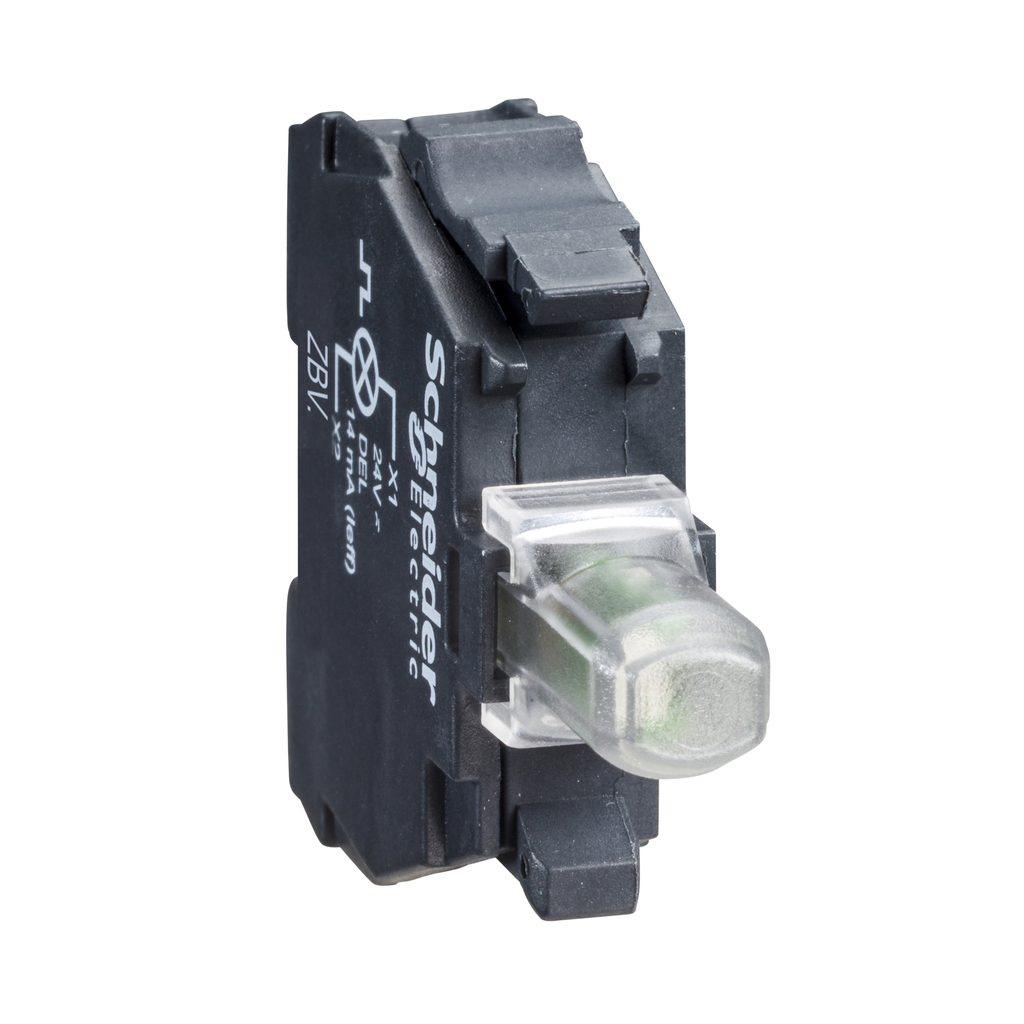

Schneider Electric ZBVB5 Square D 22 mm 24 Volt Light Module

Product Description

The Schneider Electric ZBVB5 is a thirty-two-millimeter light module designed for use with 24 Volt AC/DC systems. This unit features an integral LED for illumination and incorporates screw-clamp terminals for easy wiring. It's built with a plastic body that ensures durability and ease of installation.

• Integral LED provides clear visual indication.
• Easy installation on compatible push-button and selector switch units.
• IP20 protection ensures operator safety from live circuits.

Product Highlights

This light module allows for fast and straightforward replacement and configuration, reducing downtime during maintenance. The design supports high endurance for LED lighting, which minimizes the frequency of replacements.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ZBVB5
• Voltage: 24 Volt
• Current Consumption: 18 mA
• Color: Orange
• Weight: 0.04 lb
• Standard: CSA C22.2 No 14, EN/IEC 60947-1
• Protection Index: IP20
• Operating Temperature: -40 to 70 degrees C
