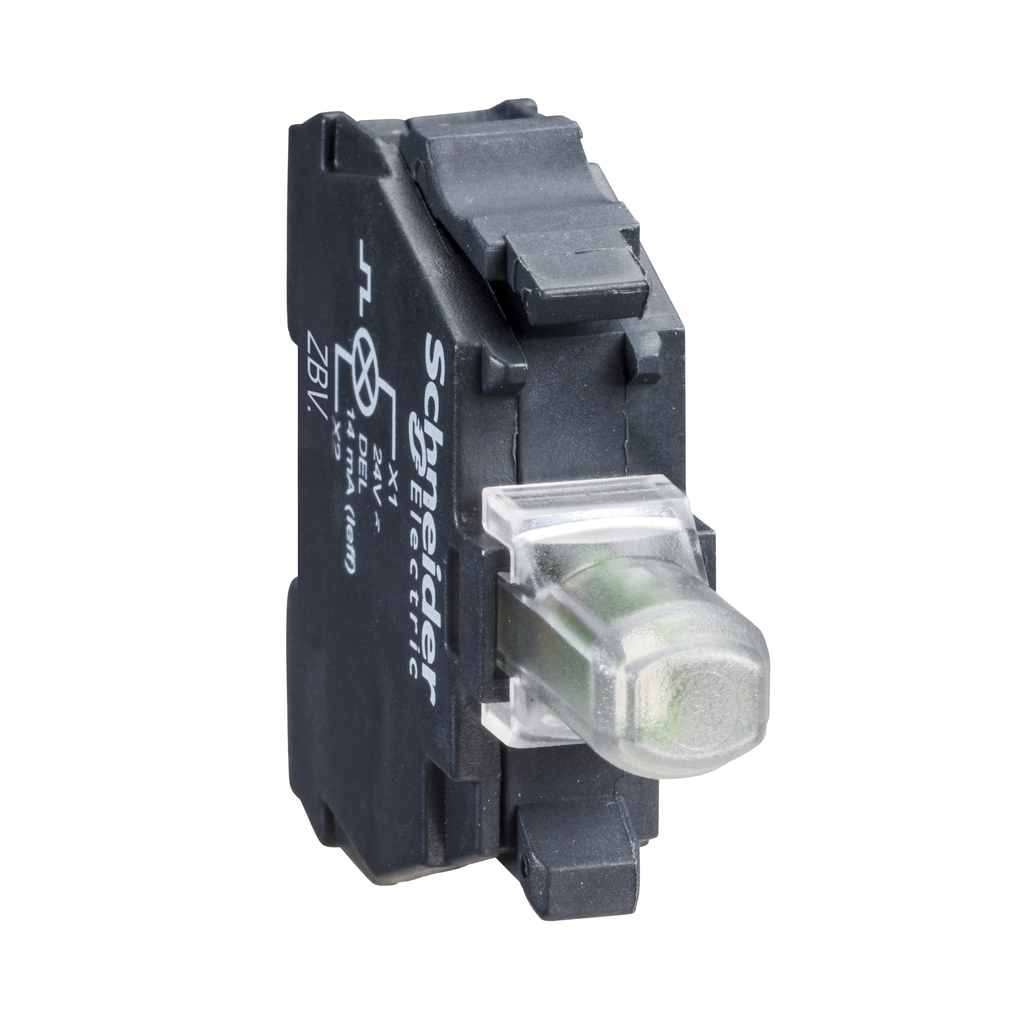

Schneider Electric ZBVB4 Square D 22 mm 24 Volt Red Push Button Light Module

Product Description

The Schneider Electric ZBVB4 is a 22 mm red push button light module designed for a range of applications. It operates on 24 volts AC or DC and features an integral LED for clear signaling. The plastic body ensures durability, and installation is easy due to the screw clamp terminals.

• Integral LED for visibility
• IP20 protection index for safety
• Easy clip-together assembly for quick installation

Product Highlights

This light module allows for fast replacements and configurations of signaling units. It connects to compatible illuminated push-button or selector switch units with simple screw-clamp connections. The high endurance LED reduces the need for frequent replacements, enhancing operational efficiency.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ZBVB4

Technical Specifications

• Type: Light block
• Voltage: 24 Volt
• Current: 18 mA
• Weight: 0.04 lb
• Color: Red
• Standard: CSA C22.2 No 14, EN/IEC 60947-1
• Protection Index: IP20
• Country of Origin: France
