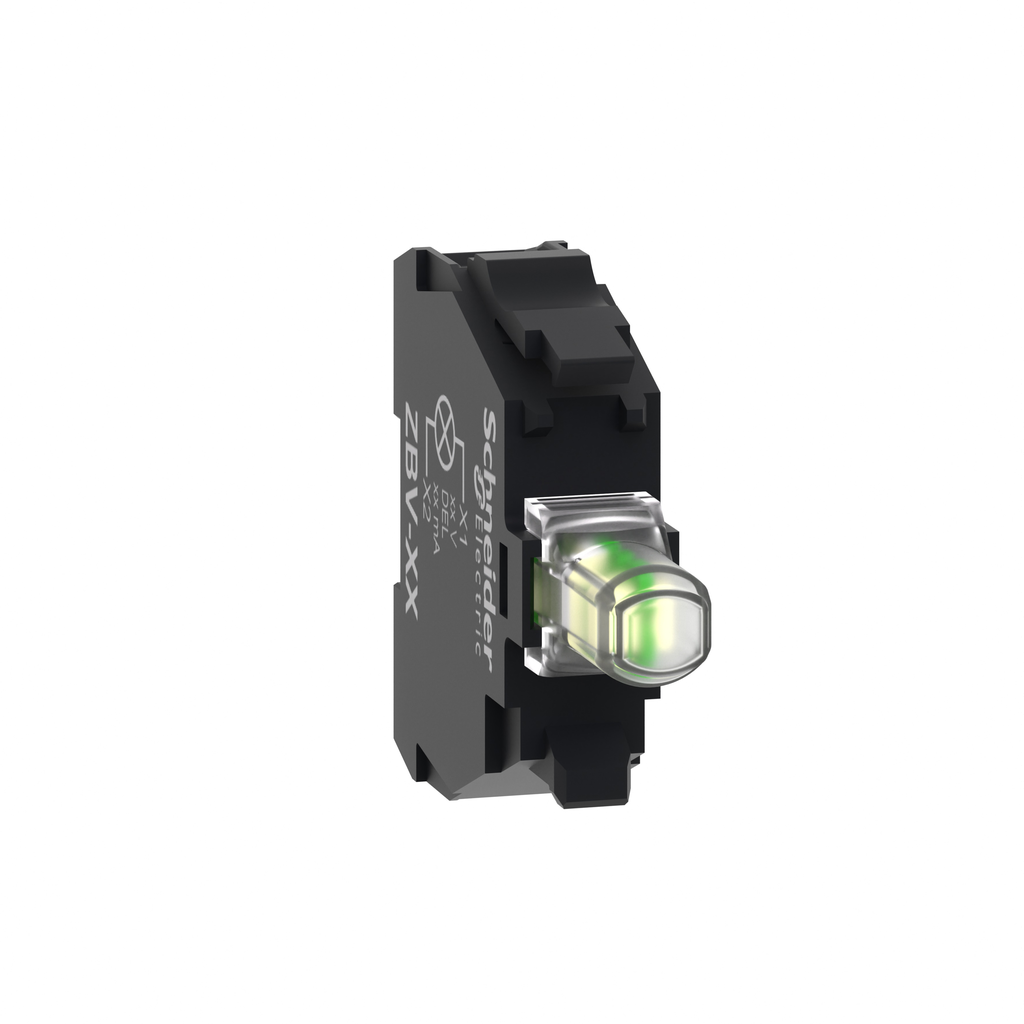

Schneider Electric ZBVB1 Light Block 24 Volt 22 mm

Product Description

Schneider Electric ZBVB1 is a light block module designed for use in various signaling applications. It operates with a universal LED and is supplied with twenty-four volts AC/DC. This module features screw clamp terminals for easy connections and has a durable plastic body. The ZBVB1 is intended for quick installation and replacement in illuminated push-button or selector switch units via a clip-together assembly.

• Light block module with universal LED
• Operating voltage of twenty-four volts AC/DC
• IP20 protection rating for safe operation

Product Highlights

This product enhances visual signaling with its high endurance LED lighting, reducing the need for frequent replacements and minimizing downtime during processes. Its design includes vibration-resistant terminals, making it suitable for high-impact environments.

Product Information

Standard Information

• Catalog Number: ZBVB1
• Brand: Schneider Electric

Technical Specifications

• Voltage: 24 Volt
• Current: 15 mA
• Weight: 0.04 lb
• Enclosure: IP20
• Standard Compliance: CSA C22.2 No 14,UL 508
• Country of Origin: France
• Warranty Length: 18 months
• Operating Temperature: -25 to +70 degrees C
