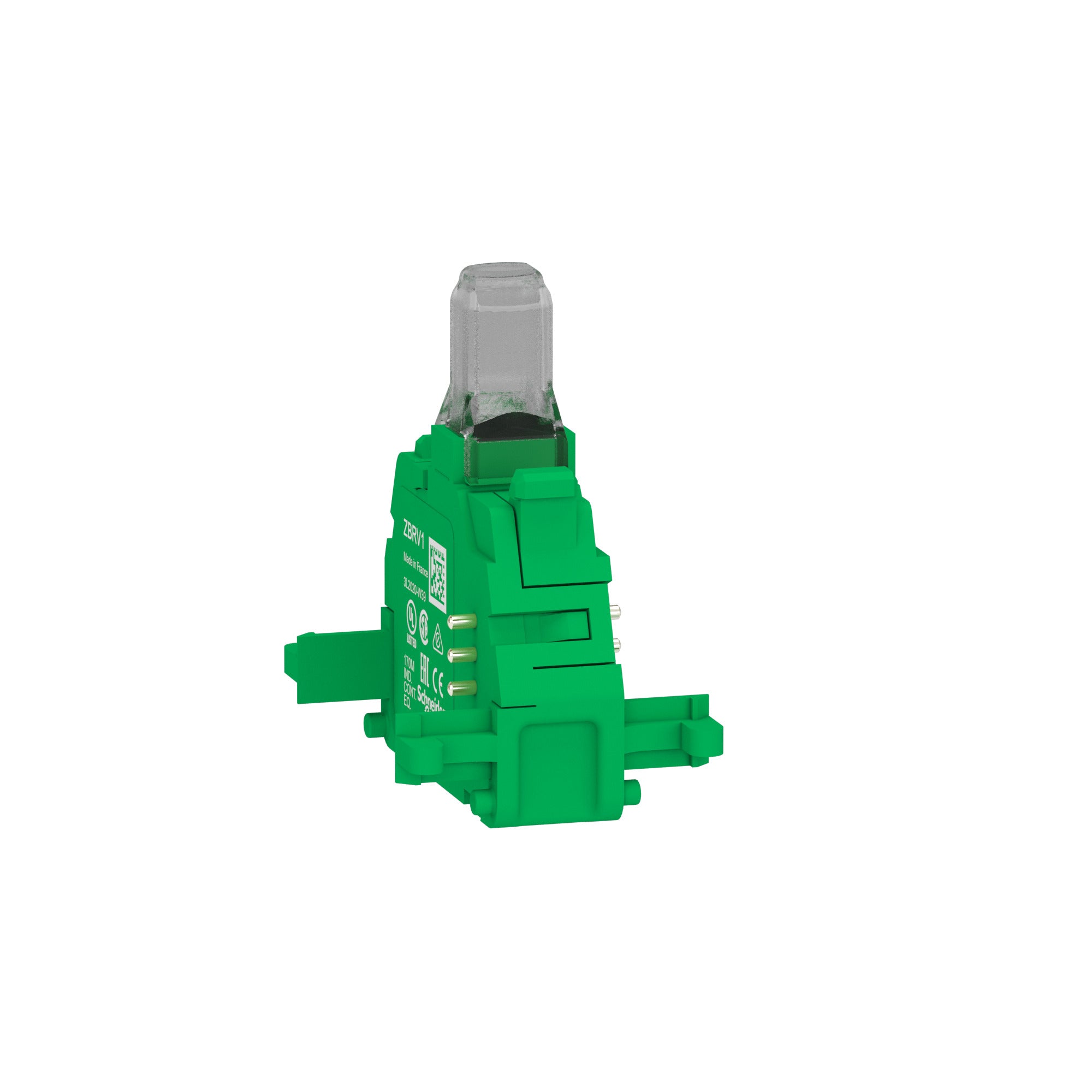

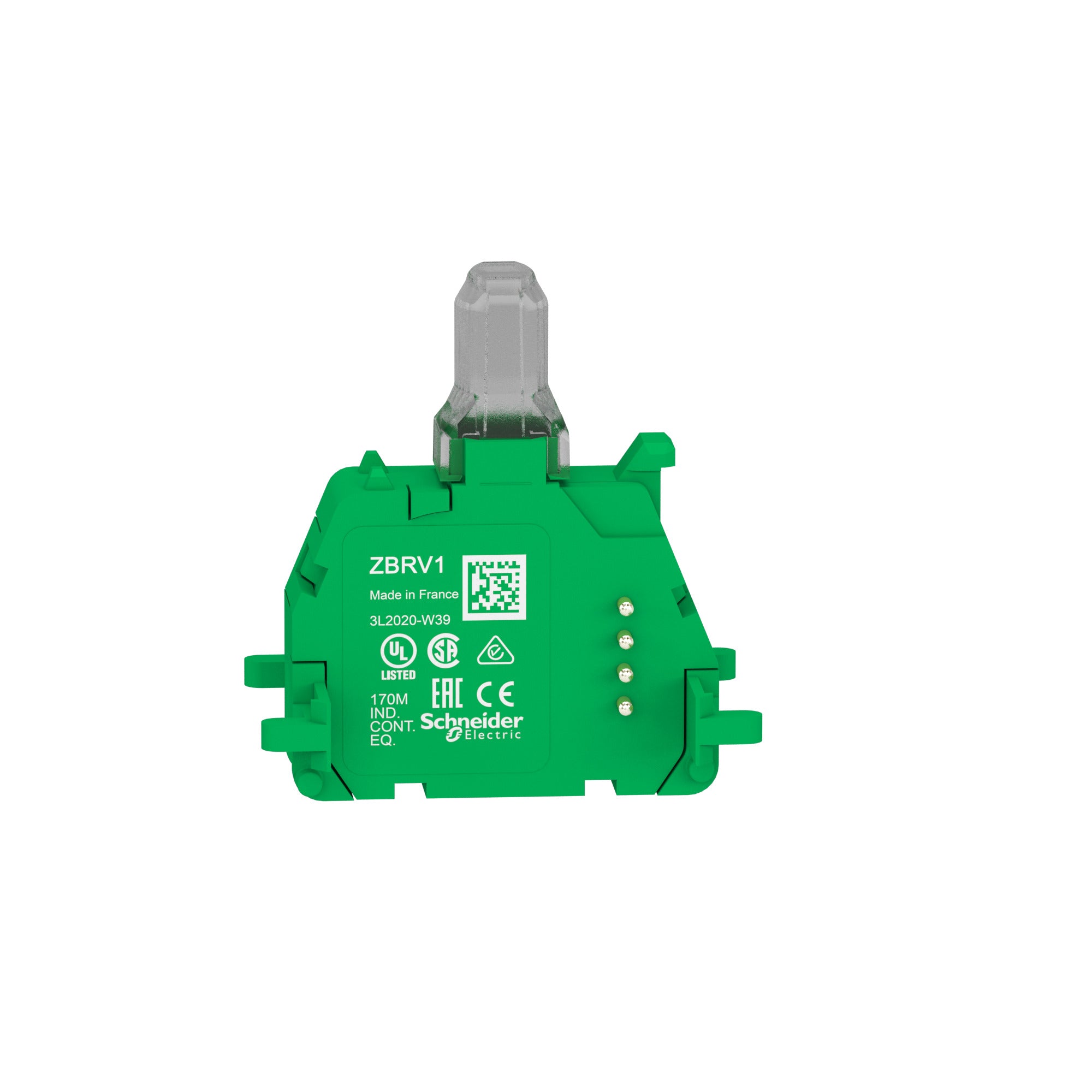

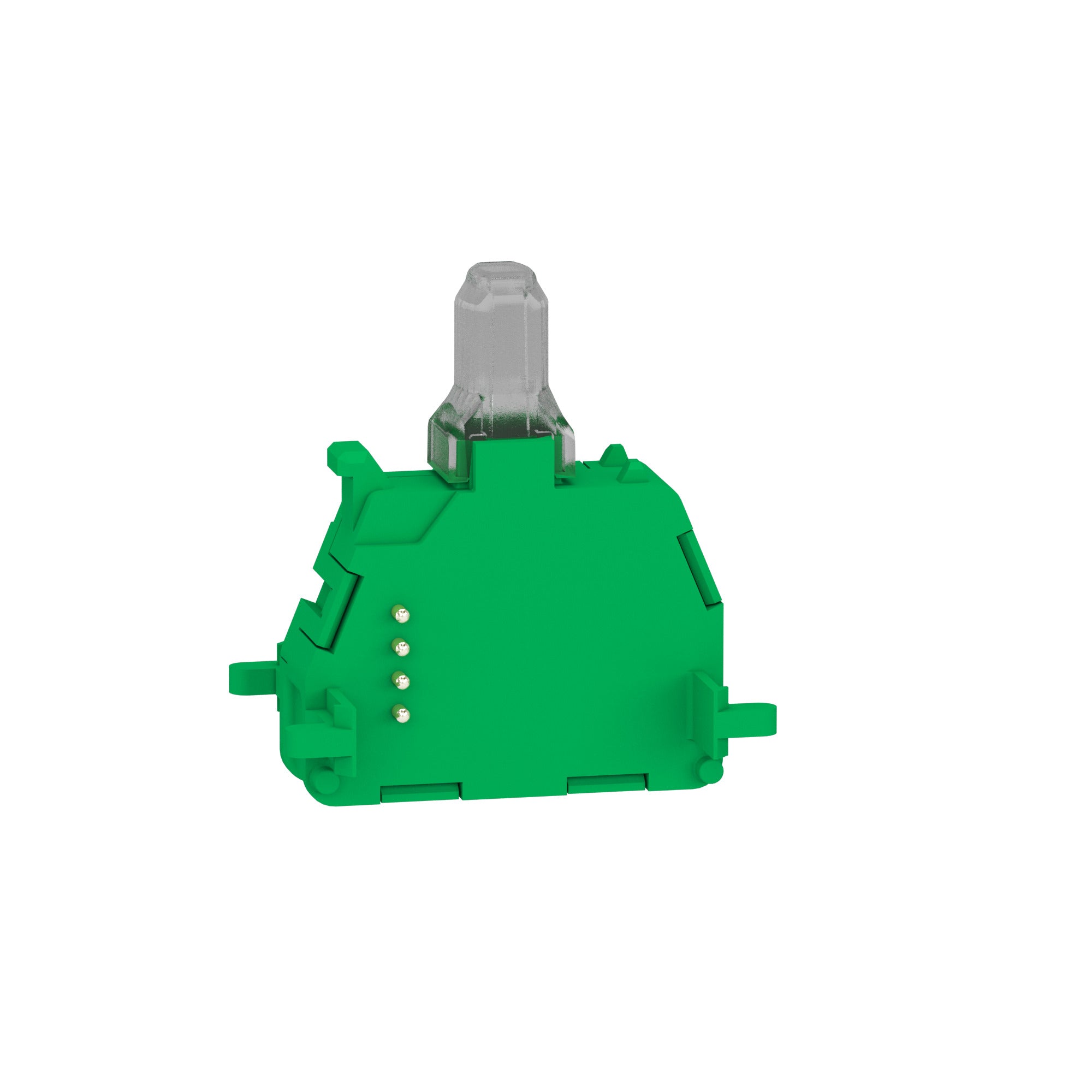

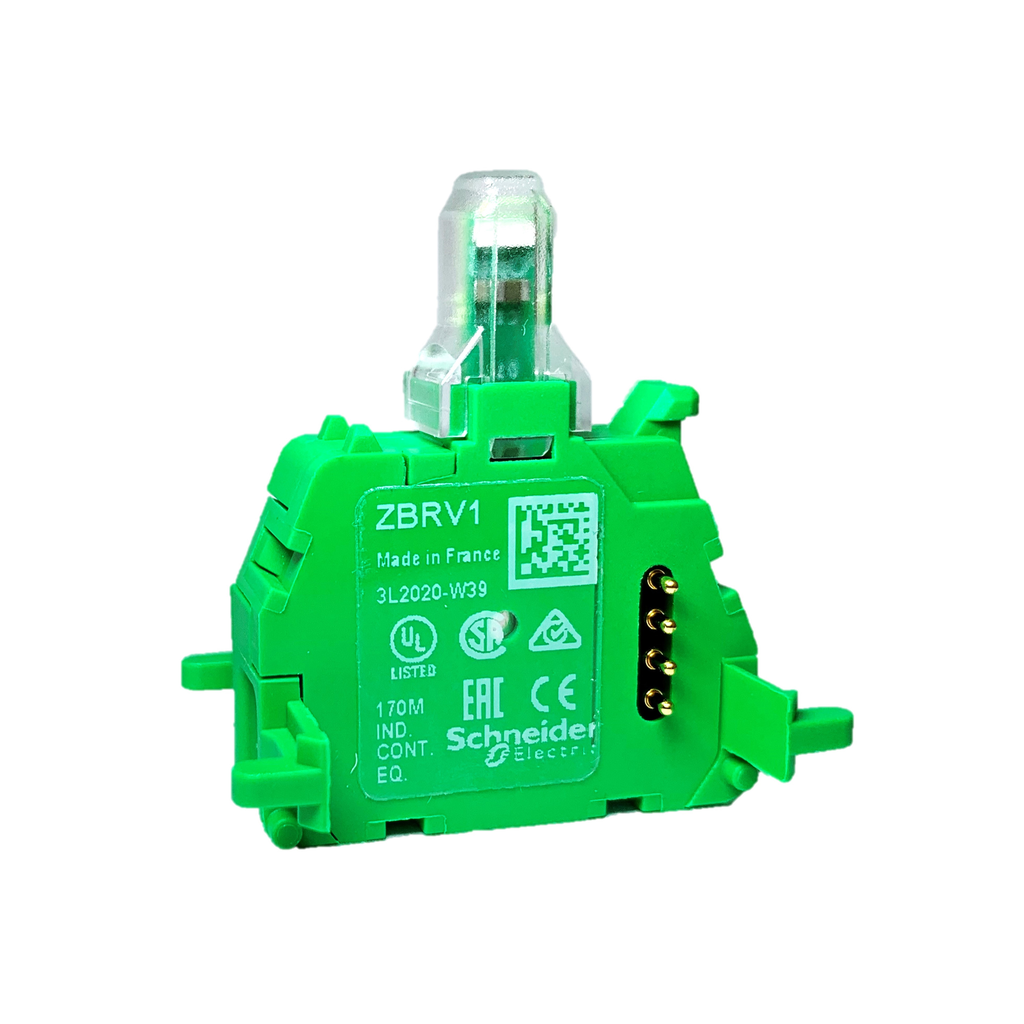

Schneider Electric ZBRV1 Visual Feedback, Harm 24.2mm x 37.4mm

Product Description

The Schneider Electric ZBRV1 is a visual feedback device designed for use with XB5 and XB4 actuators. This device is not suitable for safety applications but provides significant cost savings on installation and maintenance. The ZBRV1 is suitable for demanding environments with protection ratings up to IP 69, making it ideal for external use in temperatures ranging from negative forty to seventy degrees Celsius.

• Compatible with all XB5 and XB4 actuators.
• Cost-effective operation for installation and maintenance.
• Offers the highest level of cybersecurity and frequency adaptability.

Product Highlights

This unit features optional illuminated feedback, allowing users to easily check functionality. The ZBRV1 includes wireless, batteryless pushbuttons which come with a transmitter and spring return pushbutton head for enhanced usability.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ZBRV1
• Width: 24.2 mm
• Height: 37.4 mm
• Net Weight: 0.009 kg
• Operating Temperature: -25 to 55 degrees Celsius
• Storage Temperature: -40 to 70 degrees Celsius
• Certifications: CSA, EAC, UL Listed
• Country of Origin: France
