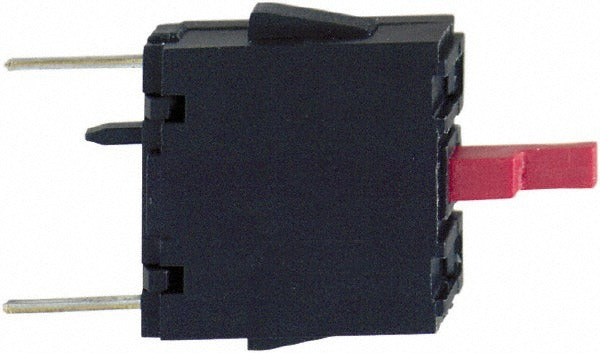

Schneider Electric ZBE702 Nc Contact Block Pin Terminal

Product Description

The SCHNEIDER ELECTRIC ZBE702 is a normally closed (NC) contact block with pin terminal connection, designed for use in industrial control and switching applications. It carries a rating of 1.50 amps at 240 VAC and 3 amps at 120 VAC, with DC ratings of 0.22 amps at 125 VDC and 0.10 amps at 250 VDC. The ZBE702 is a compact replacement-grade block intended for integration into push-button stations, selector switches, and similar operator interface devices found in industrial panels. Electricians and automation technicians install this component as part of a larger control device assembly.

The ZBE702 fits into modular push-button and control station assemblies common in industrial and commercial electrical systems. It is typically installed inside control enclosures and motor control centers where NC contact logic is required for stop circuits, safety interlocks, or status monitoring functions. The pin terminal design supports quick, reliable connection within the host device body. This block is sold individually and is suited for maintenance replacements or new panel builds requiring a single NC contact element.

Key Features

• Normally closed (NC) contact configuration for stop and interlock circuit applications
• Pin terminal connection type for secure integration into modular switch bodies
• Rated 1.50 amps at 240 VAC and 3 amps at 120 VAC for broad AC circuit compatibility
• DC-rated at 0.22 amps at 125 VDC and 0.10 amps at 250 VDC
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and EN/IEC 60947-5-4
• Compact profile at 1.3 x 0.7 x 0.2 inches for space-constrained panel installations

Compatibility

Designed as an OEM-style replacement contact block for modular industrial push-button and operator control station assemblies requiring a normally closed pin terminal contact element.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local electrical codes. De-energize and lockout/tagout the control panel before removing or installing any contact block. Verify the contact configuration and terminal type match the host device requirements before assembly. Do not exceed the published amperage and voltage ratings for the selected circuit type.
