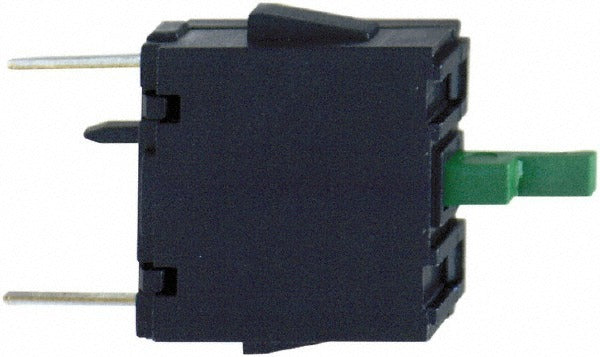

Schneider Electric ZBE701 Contact Block No Pin Terminal

Product Description

The SCHNEIDER ELECTRIC ZBE701 is a normally open (NO) pin terminal contact block designed for use in industrial control panel pushbutton and selector switch assemblies. It provides the switching interface between operator control devices and control circuits, handling up to 1.50 amps at 240 VAC or 3 amps at 120 VAC. The pin terminal connection style allows for quick, reliable circuit termination without the need for wire lugs or ring terminals. At 0.01 pounds, the ZBE701 is a compact, lightweight component suited for dense panel layouts where space is at a premium. Electricians and control panel builders select this contact block for both new builds and field replacements on industrial machinery and process equipment.

The ZBE701 is intended for use in industrial and commercial control systems where low-voltage pilot duty switching is required. It mounts directly to compatible ZB-series pushbutton, selector switch, and emergency stop operator bodies commonly found on machine control stations, motor control centers, and panel-mounted operator interfaces. The pin terminal design suits installations where pre-wired harnesses or PCB-style connections are specified. It is appropriate for light-duty DC control circuits as well, rated at 0.22 amps at 125 VDC and 0.10 amps at 250 VDC.

Key Features

• Normally open (NO) contact configuration for standard pilot duty switching
• Pin terminal type for fast, tool-free or harness-compatible termination
• Multiple current ratings: 3A at 120 VAC, 1.50A at 240 VAC, 0.22A at 125 VDC, 0.10A at 250 VDC
• Compact profile: 1.3 inches long, 0.7 inches wide, 0.3 inches tall
• Meets a broad set of international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, DNV, GL, and JIS C 4520
• Weighs 0.01 pounds — minimal added weight in multi-block configurations

Compatibility

Designed as an OEM-style replacement or add-on contact block for compatible ZB-series pushbutton and selector switch operator assemblies requiring a normally open pin terminal contact element.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lockout/tagout the control panel before removing or installing contact blocks. Verify that the operator body is compatible with the pin terminal interface before seating the contact block. Do not exceed the published current ratings for the circuit voltage being switched.
