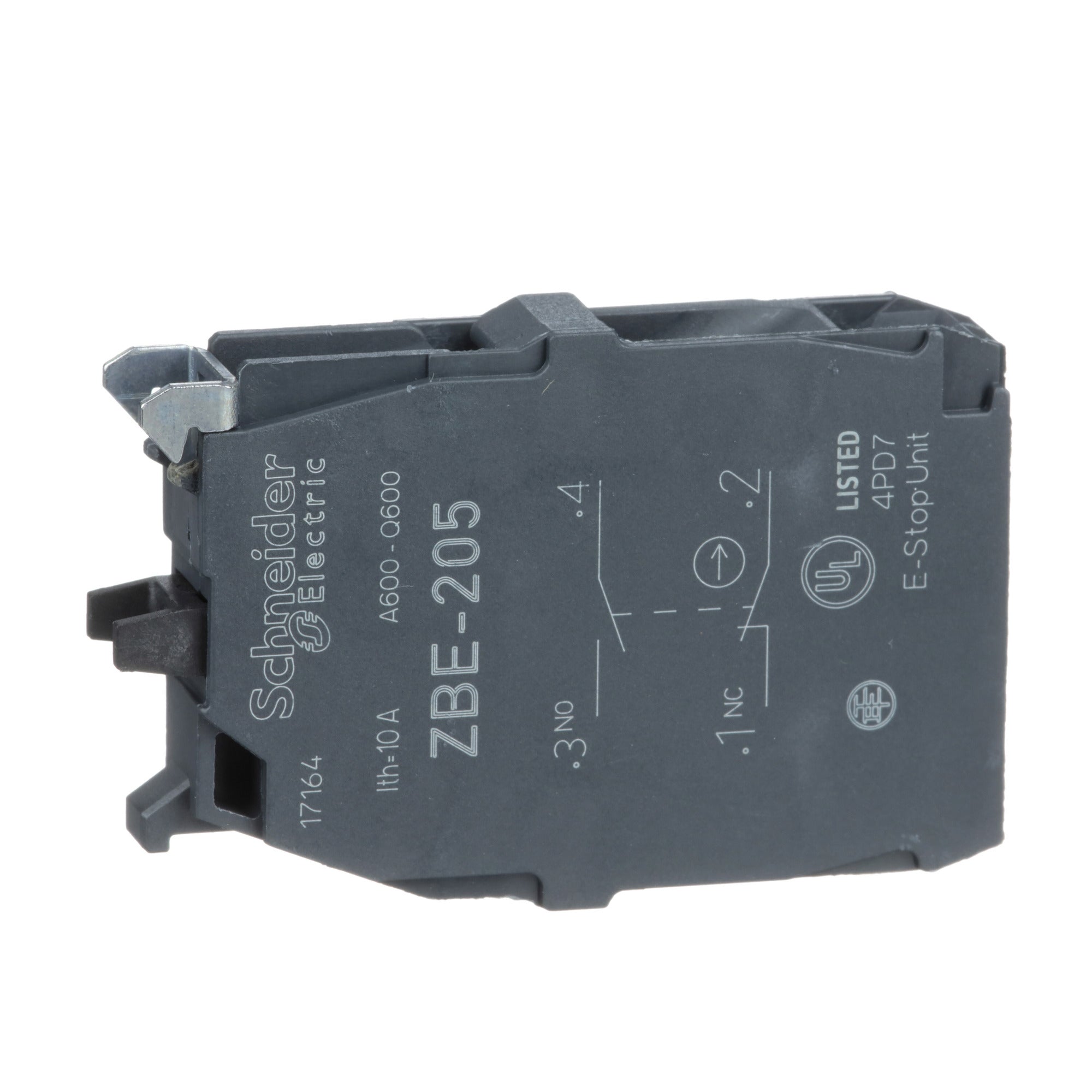

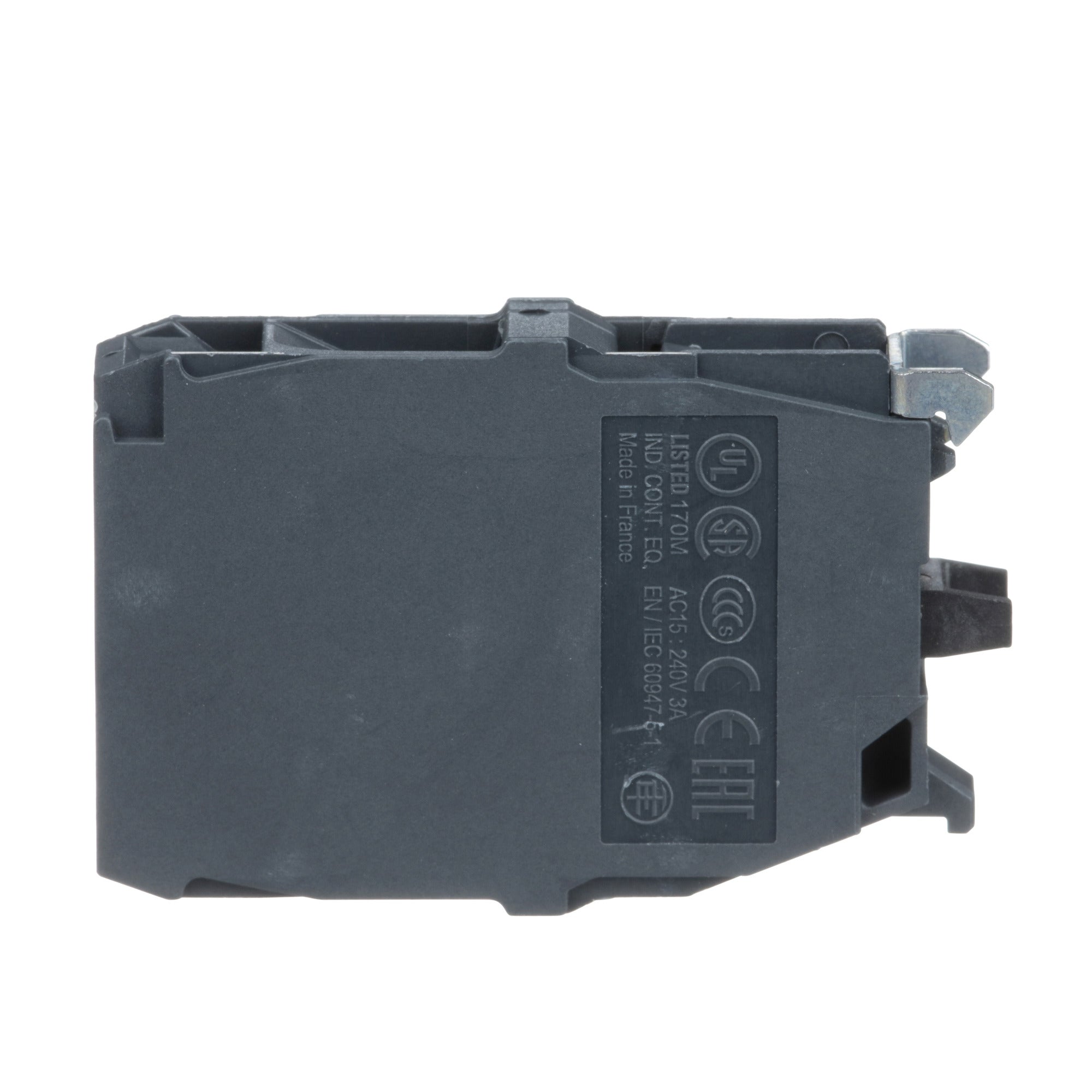

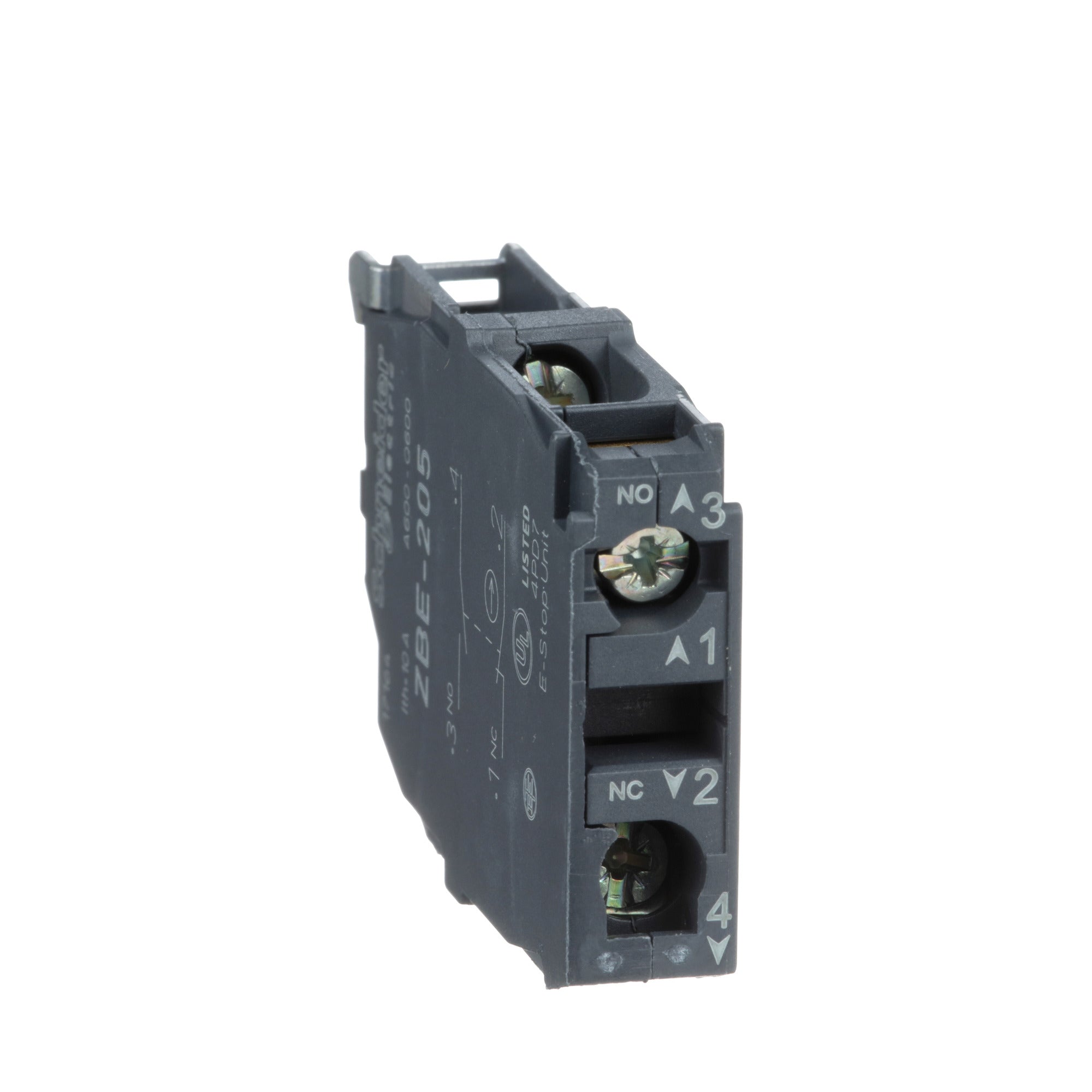

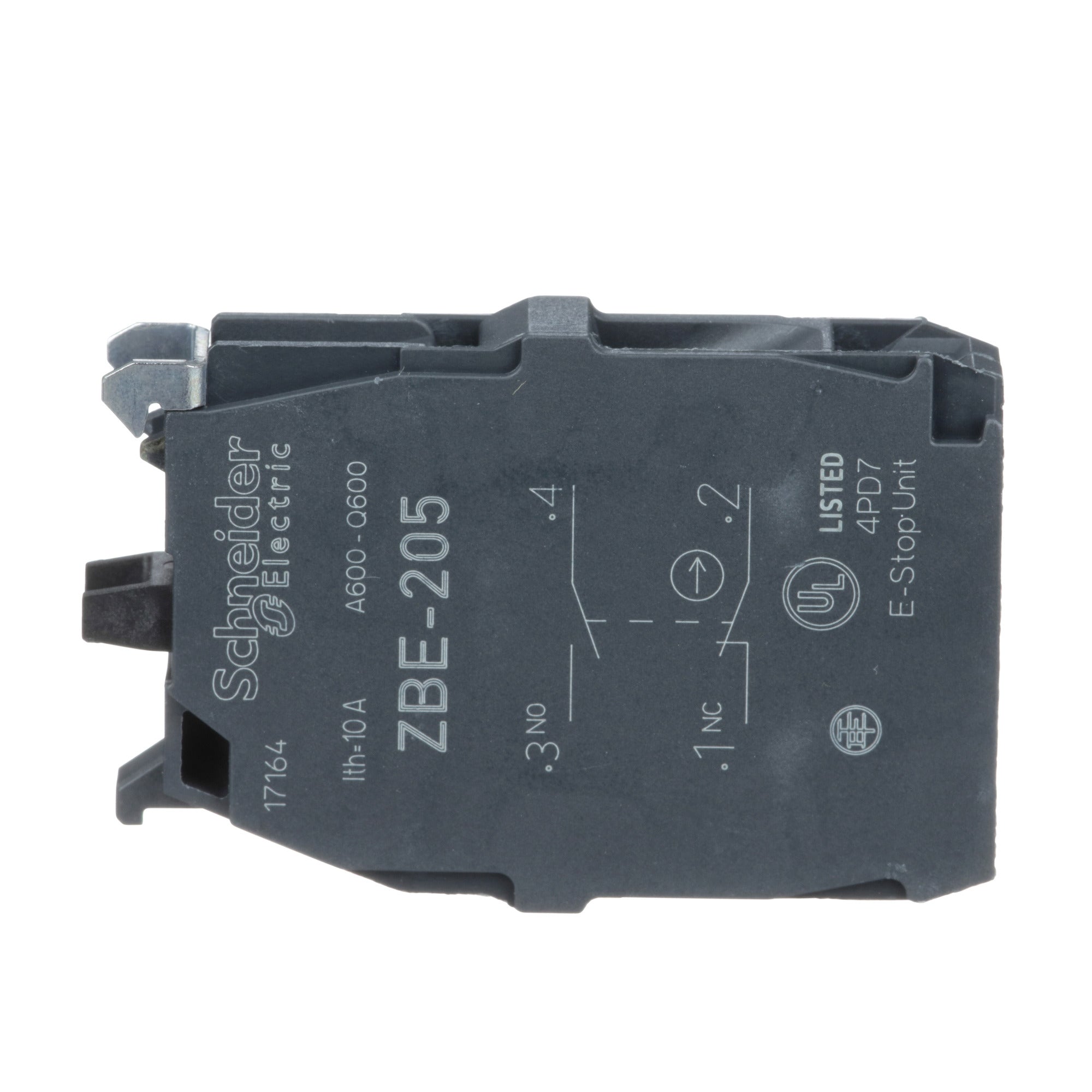

Schneider Electric ZBE205 Standard Double Push Button Contact Block

Product Description

Schneider Electric ZBE205 is a 22 mm double push button contact block designed for industrial applications. This contact block is modular and can be combined with various push button operators. It ensures easy installation and reliable operation, making it suitable for various control systems.

• Modular design for ease of use.
• High endurance with one million cycles under a six amp load.
• Rated for low and high power applications.

Product Highlights

The Schneider Electric ZBE205 is ideal for machine manufacturers and control panel builders in diverse industries like automotive and textiles. The compatibility with existing systems allows for upgrades and modifications without replacing the entire setup.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ZBE205

Technical Specifications

• Type: Double contact block
• Operating Voltage: 600 Volt
• Amperage: 10 Amp
• Contact Configuration: 1 NO + 1 NC
• Country of Origin: France
• Weight: 0.04 lb
• Storage Temperature: -40 to 70 degrees C
• Operating Temperature: -40 to 70 degrees C
