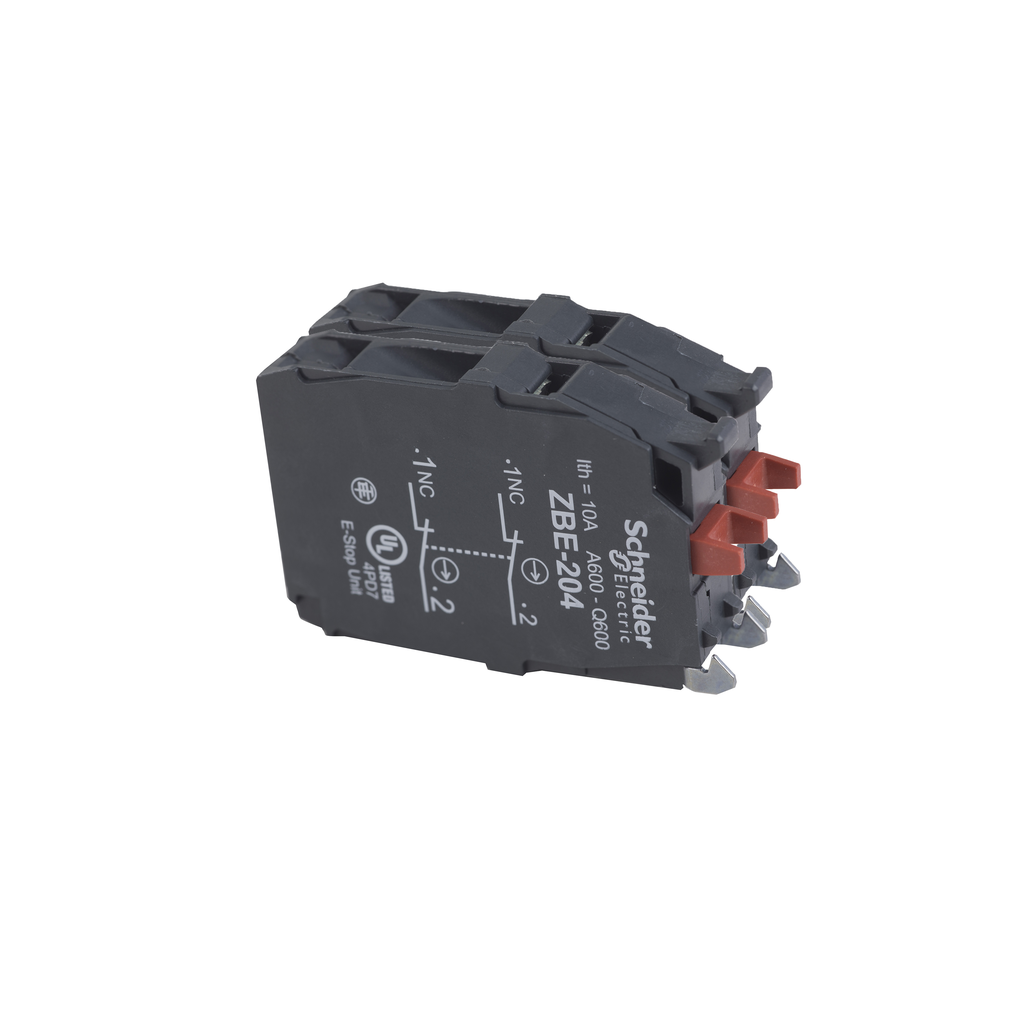

Schneider Electric ZBE204 Square D ZBE204 22 mm 2NC Standard Double Push Button Contact Block

Product Description

The Schneider Electric ZBE204 is a double contact block designed for use with Harmony XB4 and XB5 control and signaling units. This block utilizes screw-clamp terminals for easy connections and replacements. It enables rapid configuration of push buttons and selector switches. The ZBE204 allows for straightforward installation on XB4 and XB5 push-button units and connects easily to control circuits.

• Compatible with Harmony XB4 and XB5 series.
• IP20 protection for operator safety.
• 1 million cycle durability under a load of up to 6 amps.

Product Highlights

This contact block enhances operational flexibility. It features a color-coded scheme for NO and NC contact types, ensuring clarity during installation. The device operates effectively across a temperature range from negative forty degrees Celsius to seventy degrees Celsius, making it versatile for various environments.

Product Information

Standard Information

• Catalog Number: ZBE204
• Brand: Schneider Electric

Technical Specifications

• Type: Double; Contact block
• Voltage: 600 Volt
• Amperage: 10 Amp
• Weight: 0.04 lb
• Contact Configuration: 2 NC
• Operating Temperature: -40 to 70 degrees C
• Contact Material: Silver Alloy
• Certifications: BV, CCC, CSA, DNV, GL, GOST, UL
