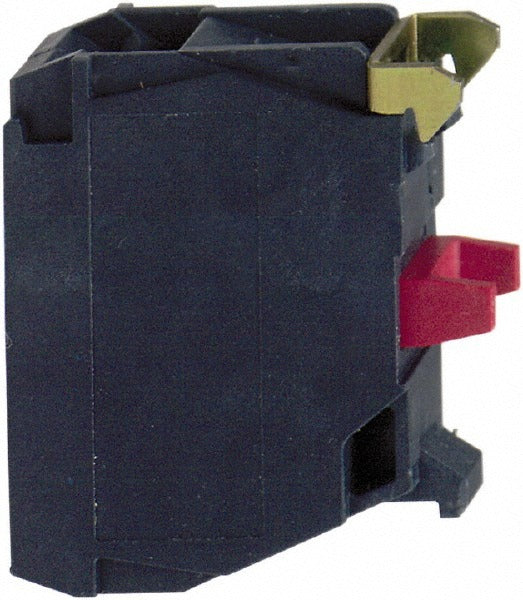

Schneider Electric ZBE1029 Nc Contact Block

Product Description

The SCHNEIDER ELECTRIC ZBE1029 is a normally closed (NC) contact block designed for use with modular pushbutton and selector switch assemblies in industrial control panels. It uses a screw terminal connection for reliable, field-serviceable wiring and is rated to multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1. The ZBE1029 is compact at 1.3 inches long, 1.1 inches wide, and 0.4 inches tall, and weighs 0.02 pounds, making it a lightweight add-on contact element for stackable operator device configurations. Electricians and industrial controls technicians are the primary installers of this component.

This contact block is suited for light industrial and commercial control panel applications where a normally closed switching element is required. It mounts directly to compatible Schneider Electric operator heads as part of a modular assembly. Typical use cases include emergency stop circuits, interlocking control logic, and machine safeguarding schemes where NC contact monitoring is required by the control architecture.

Key Features

• Normally closed (NC) contact configuration for fail-safe and interlocking circuit applications
• Screw terminal connection for secure, tool-accessible field wiring
• Compact form factor: 1.3 x 1.1 x 0.4 inches for high-density panel layouts
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, and additional international standards including DNV, GL, Bureau Veritas, and RINA
• Modular design compatible with stackable Schneider Electric pushbutton operator assemblies

Compatibility

Designed as an OEM-style replacement contact block for modular industrial pushbutton and selector switch operator assemblies requiring a normally closed screw-terminal contact element.

Installation Notes

Installation of this contact block should be performed by a qualified electrician or industrial controls technician. De-energize and lock out the control panel before servicing any contact block or operator device in accordance with NFPA 70E and applicable NEC requirements. Verify the contact configuration and terminal tightening with a calibrated torque screwdriver per the manufacturer terminal specification sheet. Confirm correct NC function with a continuity test before returning the circuit to service.
