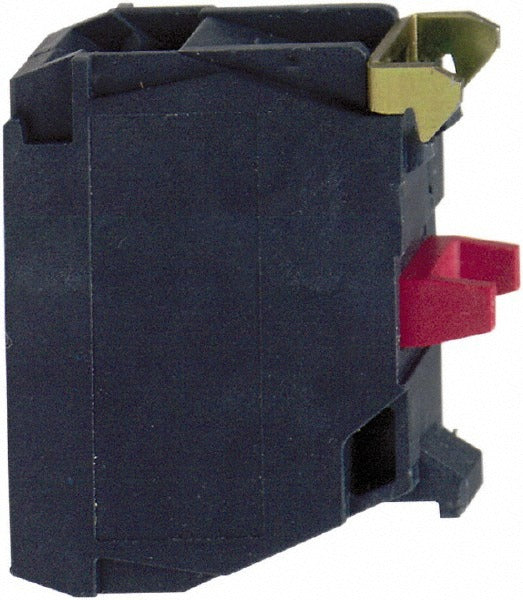

Schneider Electric ZBE1026 Nc Contact Block Screw Terminal

Product Description

The SCHNEIDER ELECTRIC ZBE1026 is a normally closed (NC) contact block designed for use in industrial control circuits. It features screw terminal connections and supports multiple amperage levels depending on operating voltage, making it adaptable across a range of control panel and pushbutton station applications. Rated from 0.10 amps at 600 VDC up to 6 amps at 120 VAC, this contact block is built to meet demanding electrical standards across AC and DC circuits. Electricians and industrial control technicians install this type of component as part of pushbutton assemblies, selector switches, and operator interface devices in motor control centers and control panels.

The ZBE1026 is suited for use in industrial, commercial, and light manufacturing environments where reliable NC switching is required. It is commonly installed within modular pushbutton and selector switch assemblies on machine control panels, motor starters, and operator stations. Its compact form factor and screw terminal design make it a practical fit for new builds and field replacements in control enclosures where panel space is limited.

Key Features

• Normally closed (NC) contact configuration for fail-safe circuit design
• Screw terminal connection for secure, tool-accessible field wiring
• Multiple amperage ratings: 6 amps at 120 VAC, 3 amps at 240 VAC, 1.20 amps at 600 VAC
• DC ratings: 0.55 amps at 125 VDC, 0.27 amps at 250 VDC, 0.10 amps at 600 VDC
• Certified to a broad set of international standards including UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and others
• Compact block dimensions suited for dense panel layouts

Compatibility

Designed as an OEM-style replacement or supplemental contact block for modular industrial pushbutton and selector switch assemblies requiring an NC screw terminal contact element.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before removing or installing contact blocks. Verify that the amperage and voltage ratings of the ZBE1026 are appropriate for the specific circuit before wiring. Confirm screw terminal connections are properly torqued to the panel assembly manufacturer's specification using an appropriate screwdriver.
