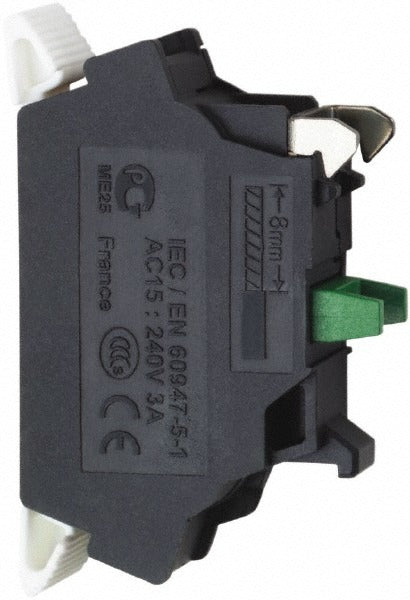

Schneider Electric ZBE1025 Nc Contact Block

Product Description

The SCHNEIDER ELECTRIC ZBE1025 is a normally closed (NC) contact block designed for use with modular push button and selector switch assemblies in industrial control applications. Featuring spring clamp terminals for tool-free, vibration-resistant wiring connections, this contact block provides reliable switching in demanding electrical control environments. It meets an extensive list of international standards including UL 508, EN/IEC 60947-5-1, CSA C22.2 No. 14, and CCC, making it suitable for a wide range of industrial and commercial installations. Weighing 0.02 pounds, it is a compact, lightweight component installed by licensed electricians and industrial maintenance technicians.

The ZBE1025 contact block is intended for use in modular control station assemblies found in industrial panels, machinery controls, and process equipment. Its NC configuration makes it a standard choice for stop circuits, safety interlock signals, and status monitoring functions. The spring clamp terminal design reduces wiring time on the panel floor and helps maintain connection integrity in environments subject to vibration or thermal cycling. This block is packaged individually and is a direct replacement or supplemental contact element in compatible Schneider Electric push button assemblies.

Key Features

• Normally closed (NC) contact configuration for stop and interlock circuits
• Spring clamp terminals for fast, tool-free, vibration-resistant wiring
• Certified to UL 508, EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No. 14, CCC, DNV, GL, GOST, JIS C 4520, LROS, RINA, and Bureau Veritas
• Compact profile at 1.8 inches height, 1.2 inches width, and 0.4 inches length
• Lightweight at 0.02 pounds for easy integration into existing control assemblies

Compatibility

Designed as an OEM-style replacement or add-on contact block for compatible Schneider Electric modular push button and selector switch operator assemblies in industrial control stations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before installing or replacing contact blocks. Spring clamp terminals do not require a screwdriver for conductor insertion, but ensure conductors are properly stripped to the specified length before seating. Verify the NC contact function with a continuity test before returning the circuit to service.
