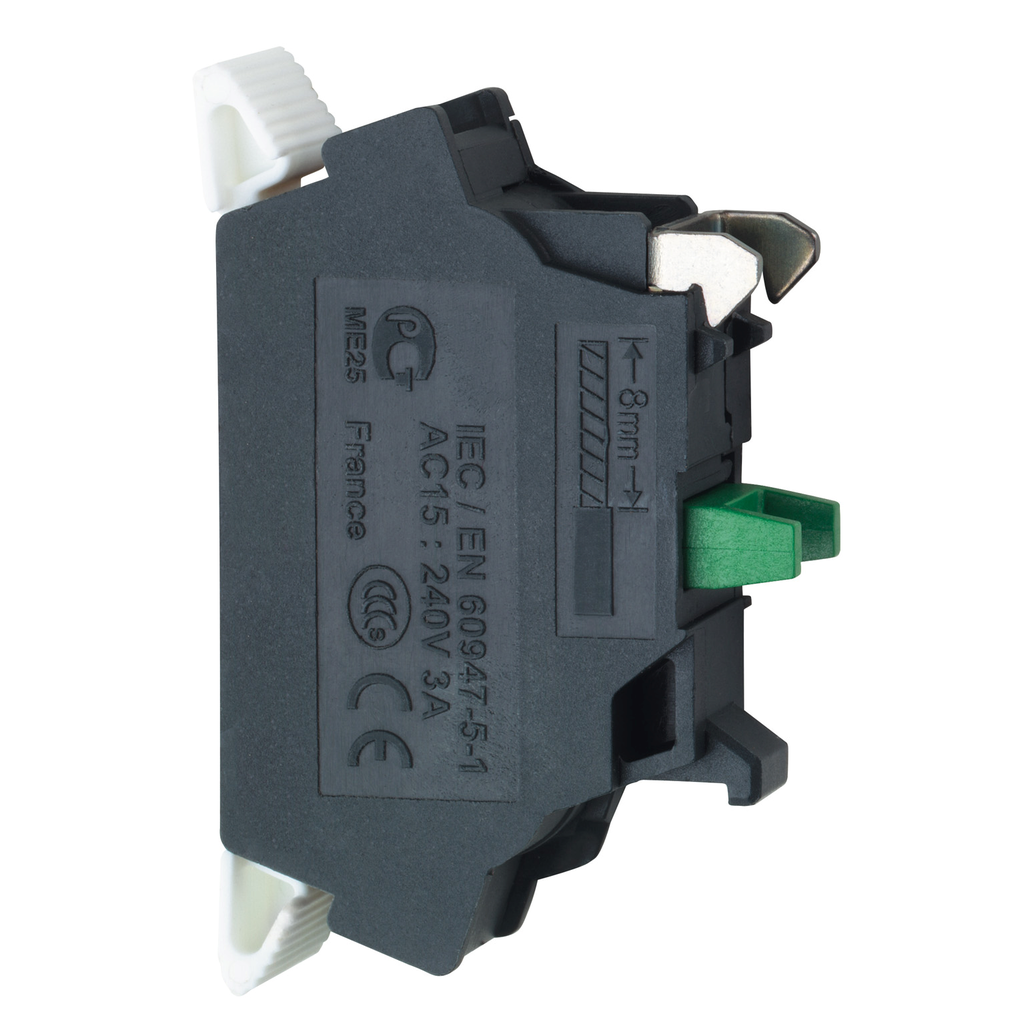

Schneider Electric ZBE1015 Square D 22 mm 1NO Standard Single Push Button Contact Block

Product Description

The Schneider Electric ZBE1015 is a single contact block designed for push-button and selector switch applications. It features a robust spring clamp connection for easy installation and replacement. This contact block is compatible with XB5 series complete push-button units and provides secure connections to control circuits.

• Offers IP20 protection index, enhancing safety.
• Supports up to 1 million cycles under 6A load for durability.
• Utilizes vibration-resistant terminals for secure operation.

Product Highlights

This contact block is suitable for high impact machines and ensures operator safety. The design includes a clear color scheme for normally open (NO) and normally closed (NC) contacts.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: ZBE1015
• Type: Electrical Component Contact Block
• Voltage: 600 Volt
• Amperage: 10 Amp
• Height: 14.8 mm
• Width: 34.3 mm
• Weight: 0.02 lb
• Operating Temperature: -40 to 70 degrees C
• Contact Configuration: 1 NO
• Country of Origin: France
• Warranty Length: 18 months
