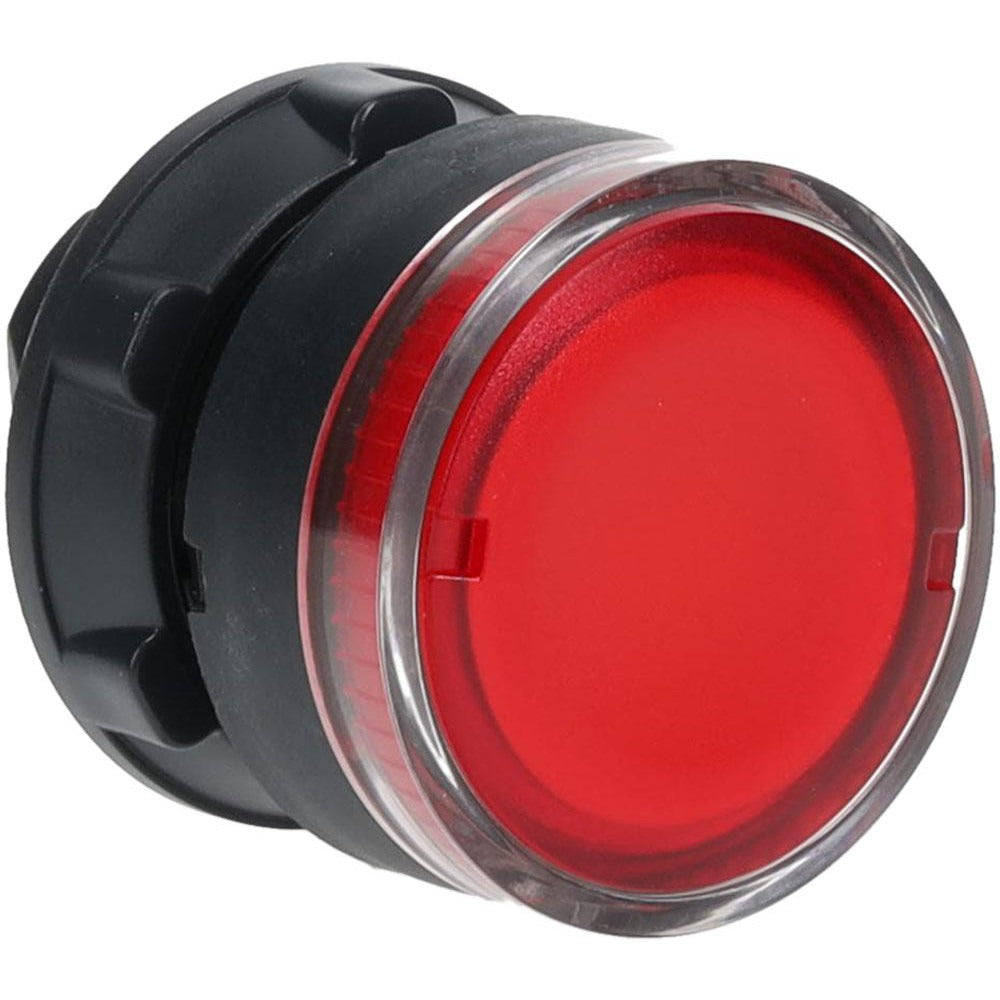

Schneider Electric ZB5AW34 Illuminated Push-button Switch 22mm

Product Description

The SCHNEIDER ELECTRIC ZB5AW34 is an illuminated, momentary push-button switch designed for industrial control panel applications. It features a flush-mount, round red operator with a 22 mm mounting hole diameter, making it a standard fit for control enclosures and operator interface panels. The switch carries a NEMA 4X and NEMA 13 rating, suitable for environments requiring protection against dust, oil, and corrosion. Licensed electricians and industrial controls technicians install this switch as part of motor control circuits, machine stop/start stations, and similar low-voltage switching applications. It complies with UL 508, CSA C22.2 No. 14, and multiple international standards including EN/IEC 60947-5-1.

The ZB5AW34 is intended for use in 22 mm panel cutout configurations, which is the most widely used mounting diameter in industrial control panels across North America and internationally. The illuminated red operator provides a clear visual status indicator at the operator interface. Typical installations include motor starters, conveyor controls, pump stations, and general-purpose machine control panels in both commercial and light industrial settings. The plastic flush operator keeps the profile low, reducing the risk of accidental activation in busy panel environments.

Key Features

• 22 mm mounting hole diameter — fits standard industrial control panel cutouts
• Momentary (MO) operation — switch returns to off state when released
• Illuminated red flush round operator for clear visual feedback at the panel
• NEMA 4X and NEMA 13 rated — resistant to dust, oil, and corrosive environments
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and additional international certifications
• Plastic push button construction — lightweight and corrosion resistant

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for standard 22 mm industrial control panel cutouts. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local codes. De-energize the control panel and verify absence of voltage before removing an existing operator or installing the switch. The 22 mm panel cutout should be clean and free of burrs to ensure proper sealing and NEMA 4X integrity. Do not exceed the electrical ratings specified on the device datasheet for the contact block used with this operator.
