Schneider Electric ZB5AW313 Illuminated Push-button Switch

Product Description

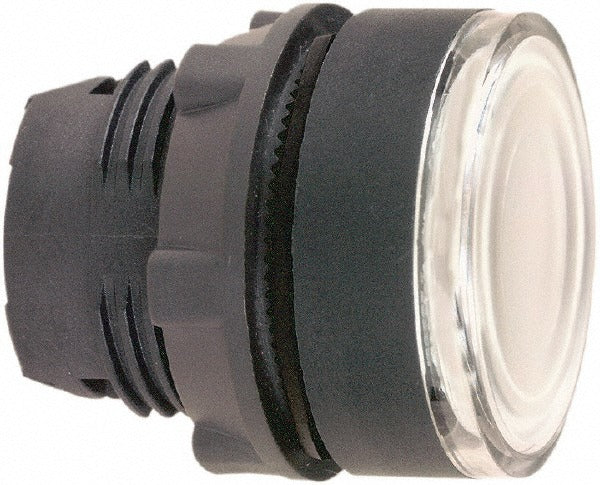

The SCHNEIDER ELECTRIC ZB5AW313 is an illuminated, momentary push-button switch designed for industrial control panel applications. It features a 22 mm mounting hole diameter and a flush-style, round white plastic operator. The switch is rated for NEMA 4X and 13 enclosures, making it suitable for environments that require protection against dust, water, and corrosive agents. Weighing 0.1 pounds, this compact unit measures 1.3 inches in height, 1.3 inches in width, and 1.3 inches in length. It is typically installed by licensed electricians and control panel builders working on machine control or process automation systems.

This push-button switch is suited for use in industrial and commercial control panels where a momentary, illuminated operator is required. Common applications include motor starters, conveyor control stations, and general-purpose machine control enclosures. The flush-mount profile keeps the operator protected from accidental activation, and the white color provides clear visual identification at the panel face. The unit ships individually and is available in single-unit quantities.

Key Features

• 22 mm mounting hole diameter for standard industrial panel cutouts
• Momentary (MO) operation returns to off-state when released
• Illuminated operator for visual status indication at the panel
• Flush-style, round white plastic push button reduces accidental actuation
• NEMA 4X and 13 ratings provide resistance to dust, water, and corrosion
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 22 mm industrial control panel assemblies requiring a flush, illuminated, momentary switch.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power to the control panel before removing or installing any switch operator. Verify that the panel cutout diameter matches the 22 mm mounting specification before installation. Confirm enclosure NEMA rating requirements are met for the installation environment.
